Used Cummins DQCB QSK23-G7 NR2 Diesel Generator, 468 Hrs, EPA Tier 2, 750 KW

This used Cummins DQCB QSK23-G7 NR2 diesel generator offers 750 kW standby power and 680 kW prime, powered by a Cummins QSK23-G7 engine rated at 1220 HP. It aligns with EPA Tier 2 emissions standards, making it suitable for diverse applications. This model operates at 1800 RPM and offers a 3-phase, 60 Hz output at 277/480V, with a 12-lead reconnectable design for voltage flexibility, and features an oversized 884 kW generator end. Additional components include a PowerCommand 2100 digital control panel, PMG permanent magnet generator, and a high-capacity 2500 Amp 100% rated main-line circuit breaker. The unit is equipped with robust cooling through an engine cooling radiator rated for a 50°C/122°F ambient environment. It also includes a 3000-gallon, UL2085 sub-base fuel tank with secondary containment and an EnerGenius battery charger. The generator is housed in an aluminum sound attenuated enclosure, bears UL 2200 listing, and has only been operated for 468 hours as of its 2012 manufacturing date. At a weight of 48,000 lbs and dimensions of 113W x 312L x 155H inches, the generator remains in excellent condition, having passed a recent load test. It is currently located inUSA, excluding the storage trailer shown in photos.

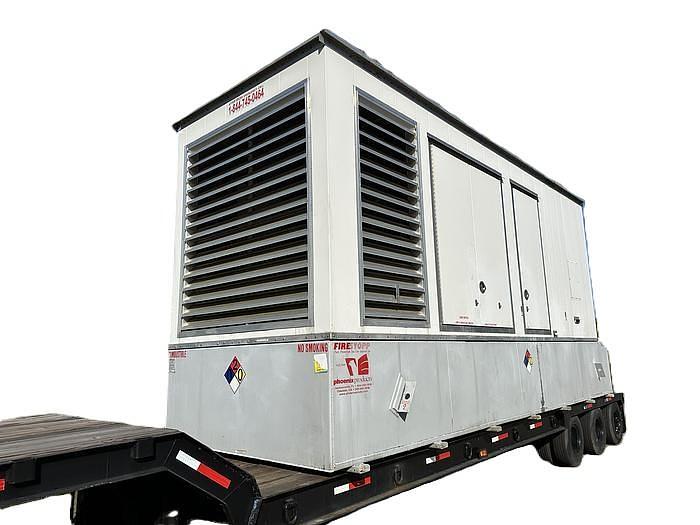

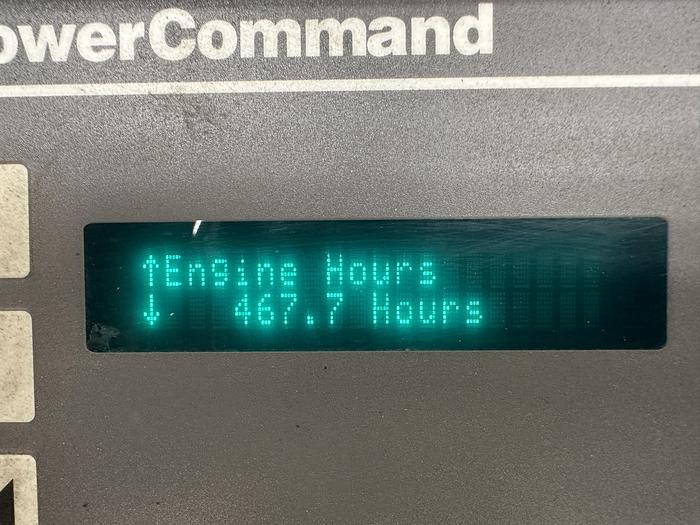

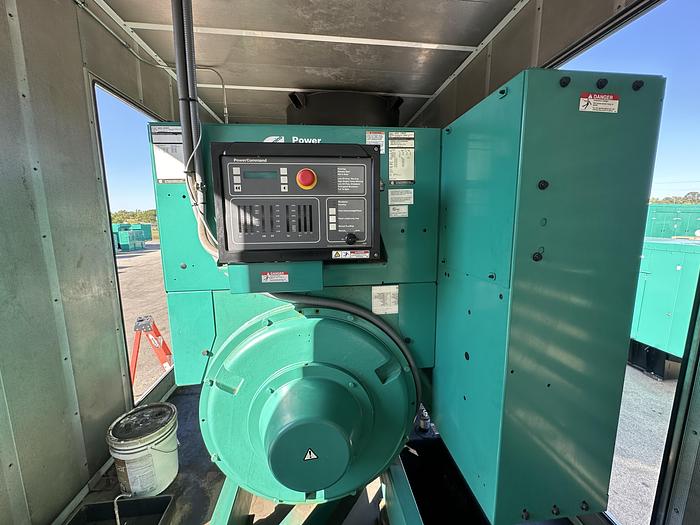

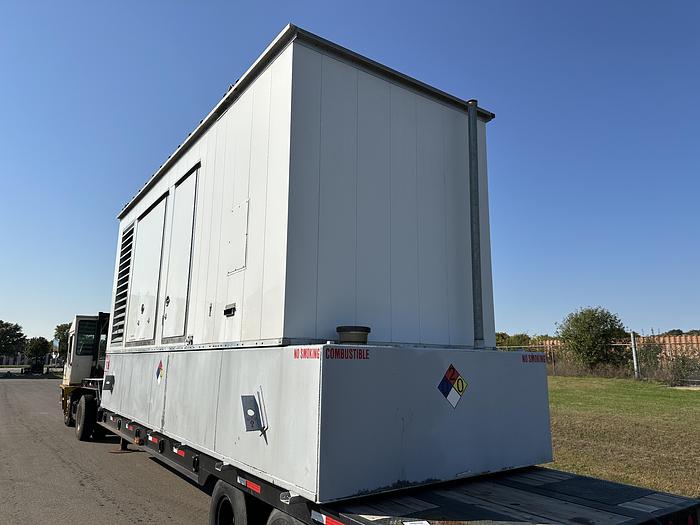

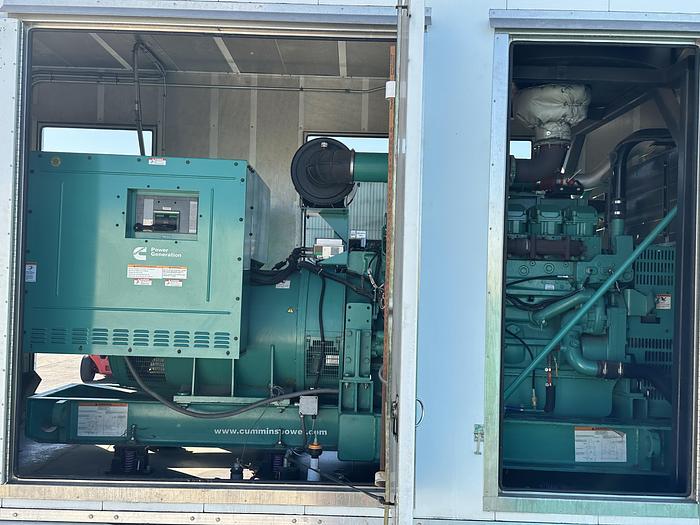

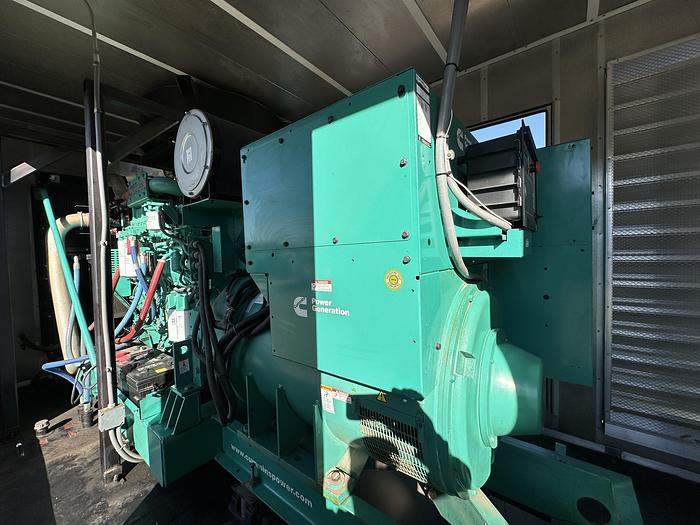

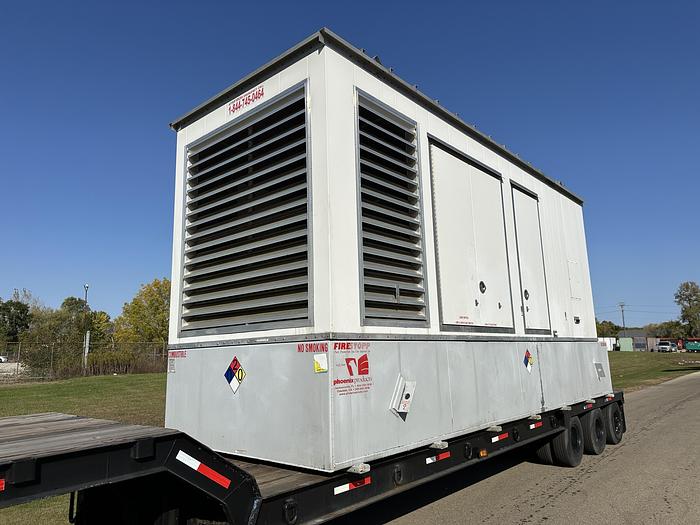

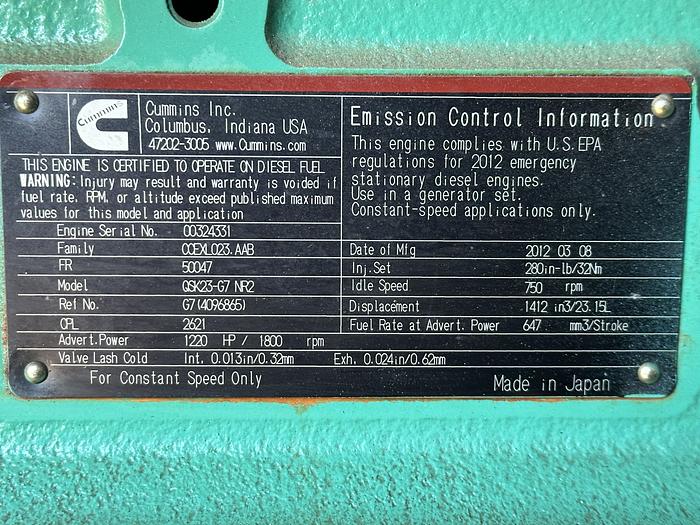

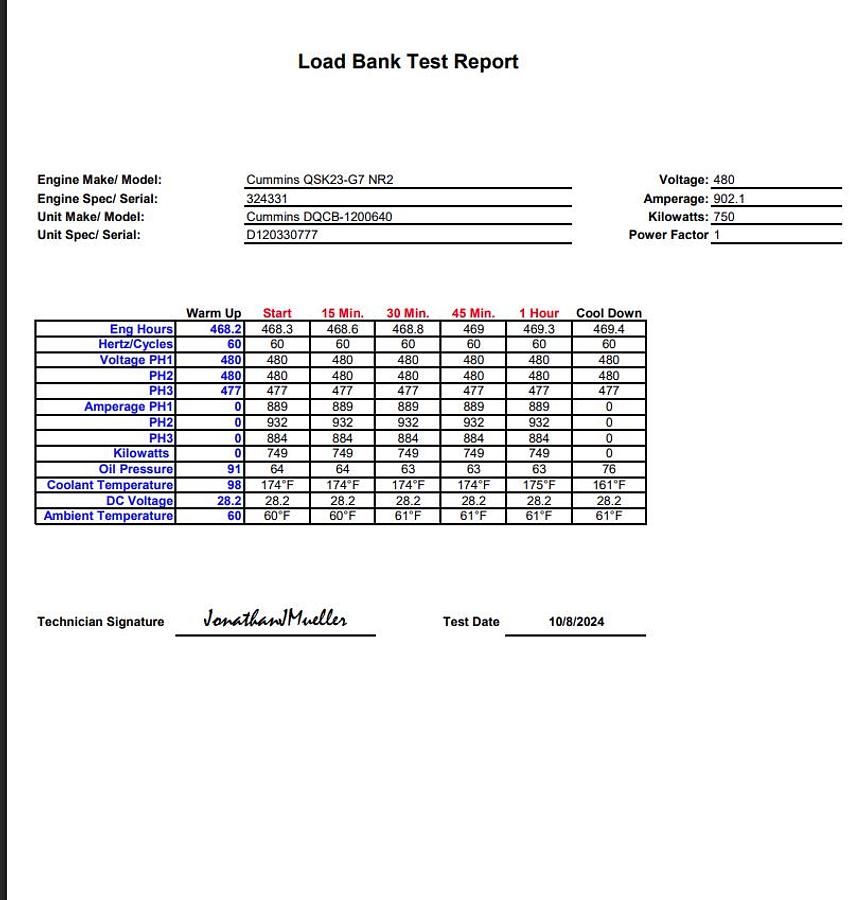

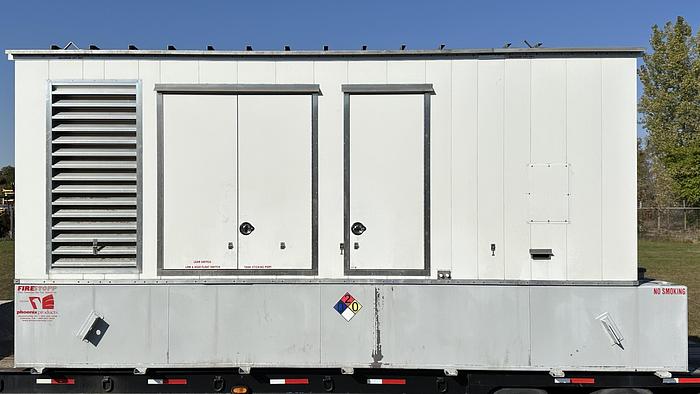

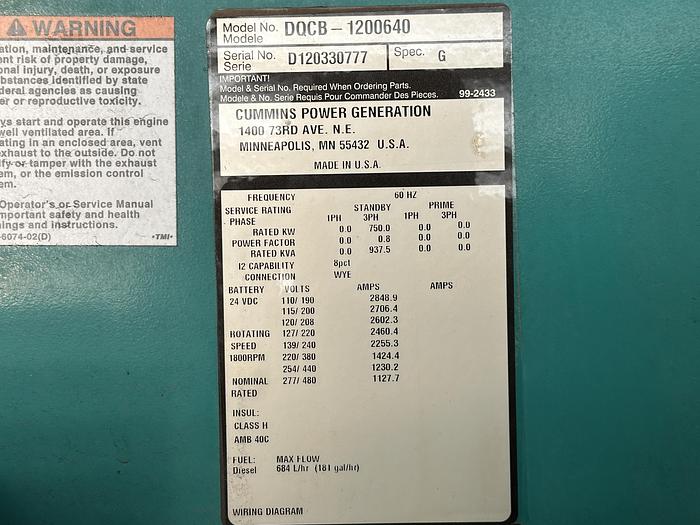

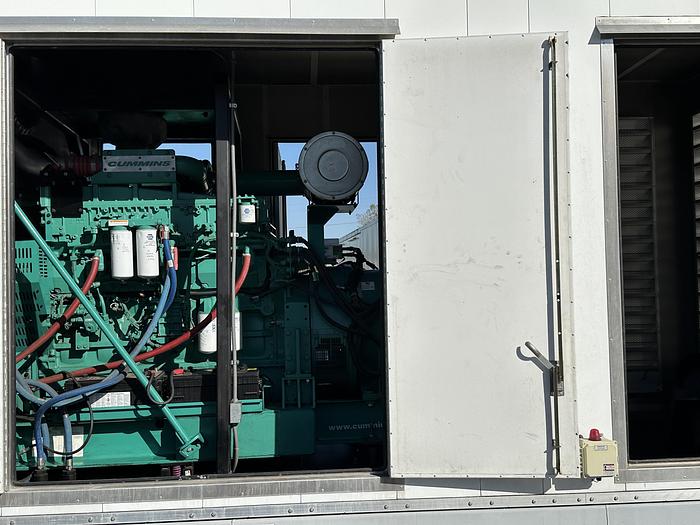

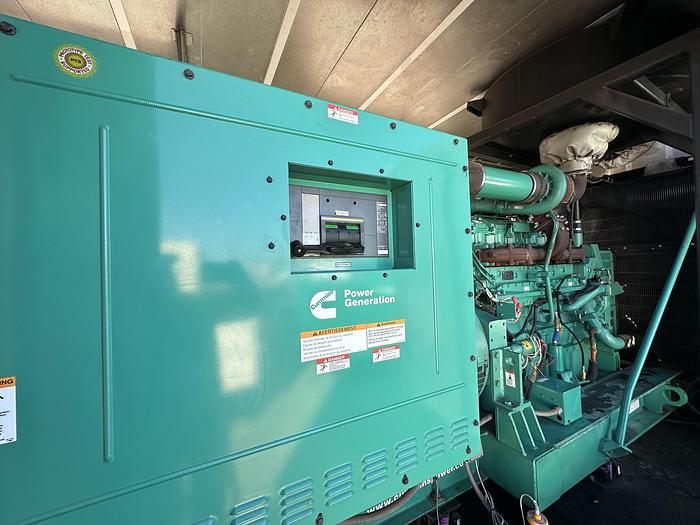

Cummins 750 kW standby (680 kW prime) diesel generator set, model DQCB, SN-D120330777. Cummins QSK23-G7 engine rated 1220 HP at 1800 RPM, SN-00324331, EPA Tier 2 emissions. 3/60/277/480V, 12 lead reconnectable to other voltages. 2500 Amp 100% rated main-line circuit breaker. PMG permanent magnet generator. Oversized 884 kW rated generator end. Engine cooling radiator rated 50C/122F ambient. UL 2200 listed stationary engine-generator-assembly. PowerCommand 2100 digital control panel. EnerGenius battery charger 10 amp 120/208/240V. Coolant heater 208/240/480V. Aluminum sound attenuated enclosure. 3000 gallon UL2085 sub-base fuel tank, with secondary containment. 468 Hours. Year 2012. Overall dimensions 113W x 312L x 155H, 48,000 lbs. (storage trailer in photo not included) Passed load test 10/9/2024. Download Documents

Cummins-DQCB-data-sheet.pdf

Cummins-DQCB-spec-sheet.pdf
