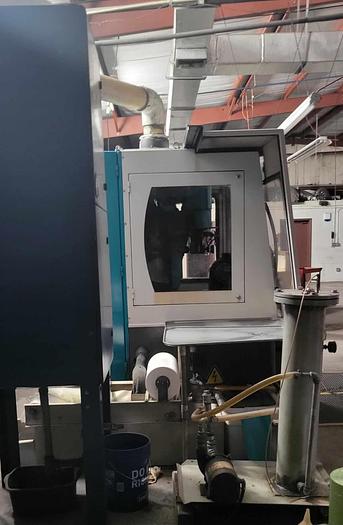

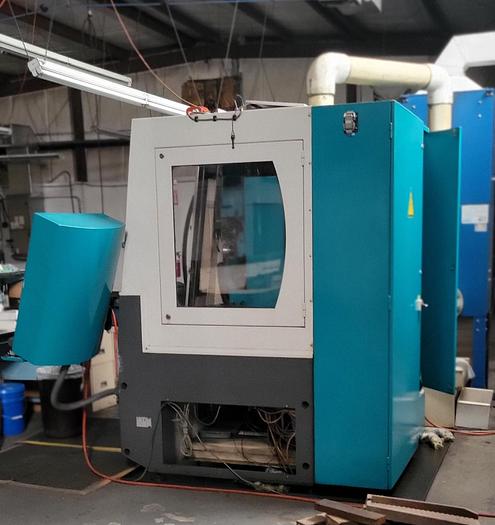

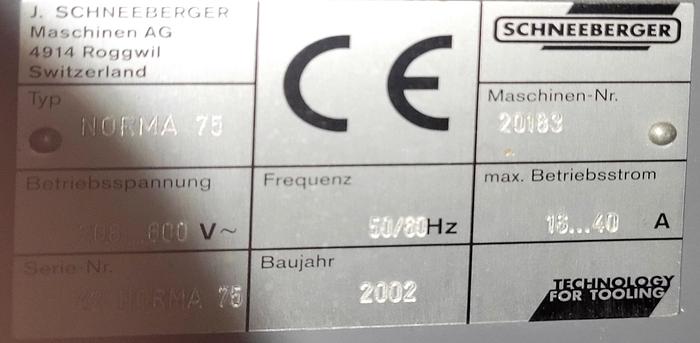

2002 Nomra Ngc Universal and Compact 5-axis CNC Tool Grinding Machine

SPECIFICATIONS

X-Axis Travel14.17"/370mmY-Axis Travel9.84"/250mmZ-Axis Travel9.84"/270mmMaximum Dimension of Workpiece14.17"/360mm x 9.84"/250mm x 9.84"/250mmSpindle Speeds2000-9000 RPM2000-9000 RPM5.5 HP/4kwA-Axis0.001°C-Axis180° +/-Approximate Machine Dimensions57.8"/1470mm Length x 96.45"/2450mm Width x 85.43"/2170mm HeightApproximate Weight8,820 Lbs./4,000kg*Temporary Specifications Subject to Verification**Temporary Specifications Subject to Verification*

EQUIPPED WITH

EQUIPPED WITH:

Fanuc 160i-MB CNC Control.

Schneeberger Grinding Software.

3D Probing.

Coolant Filtration System.

Torit Mist Collector.

Manuals and Drawings.

The normaNGC is the universal 5-axis CNC tool grinding machine for the production and regrinding of cutting tools. Complete processing around OD and face, up to 300 mm cutting length, diameter up to 400 mm, maximum workpiece length that can be clamped 500 mm.

Cutting tools such as end mills, ball nose cutters for mold making, high-performance drills, reamers, profile end mills, indexable profile inserts in HSS, carbide gear cutting tools.

There are specific software, grinding processes and clamping systems for regrinding gear cutting tools, end mills, pinion cutters and bevel gear cutters.

Production grinding of knives for the paper, food and plastics industries. Wheel-shaped workpieces with special clamping and automatic loading.

Accessories for individual expansion of the application spectrum and for increasing productivity. Numerous accessories to expand the application range and productivity of the machine.

• Workpiece loader
• Grinding wheel pack loader
• Measurement system in all axes
• Manual or hydraulic tailstock
• Manual, hydraulic or CNC controlled steady rest, following the grinding point
• Collet system, clamping mandrel, indexable tool holder
• Coolant filtration system
• Exhaust air filter
• CO2 extinguishing system
