New Cummins DQCB QSK23-G7 Diesel Generator EPA Tier 2 750 kW

The Cummins DQCB QSK23-G7 diesel generator is a high-performance unit designed for reliable power delivery. With a standby power output of 750 kW and a prime output of 680 kW, this generator is equipped with a Cummins QSK23-G7 engine that provides 1220 HP at 1800 RPM. It meets EPA Tier 2 emissions standards, making it suitable for various applications requiring reduced environmental impact. The generator is configured for 3/60/277/480V operation with a 4-wire non-reconnectable setup and includes a 1200 Amp main-line circuit breaker. This model features a permanent magnet generator (PMG) and an oversized generator end rated at 820 kW, ensuring stability and efficiency in power generation. It comes with a UL 2200 listed package, PowerCommand 2.3 digital control panel, and a substantial 1500-gallon UL142 sub-base fuel tank with secondary containment. Additional features include a 10 amp Sens battery charger, coolant heater, and a sound-attenuated level 2 enclosure to minimize noise. While the generator includes a 5-year or 2500-hour warranty and has no operating hours, batteries and startup services are not included. Constructed in 2024, the overall dimensions are 101W x 315L x 146H inches, with a total weight of 31,139 lbs. The generator supports operation in high ambient temperatures up to 50°C (122°F), thanks to its efficient engine cooling radiator. This Cummins generator is an ideal choice for projects requiring reliable and efficient power with stringent emission compliance.

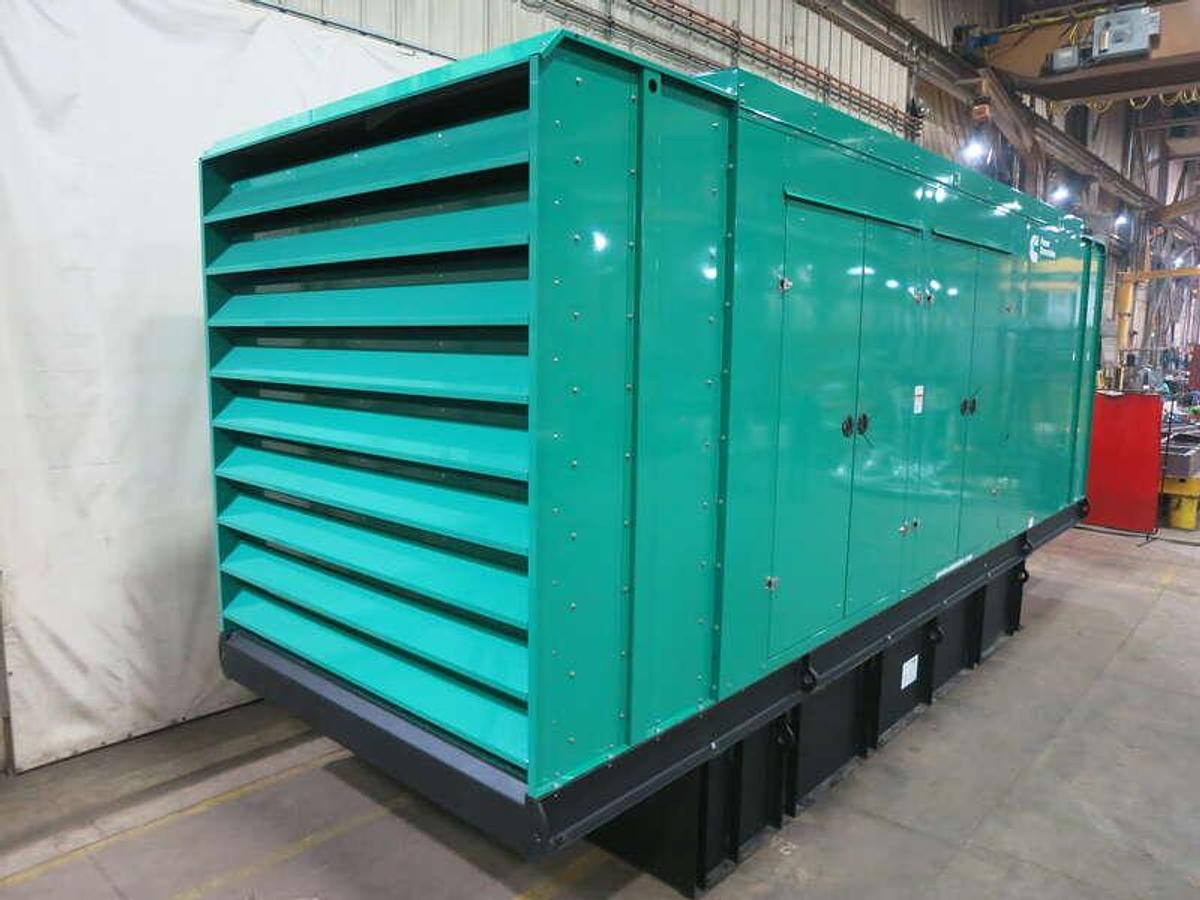

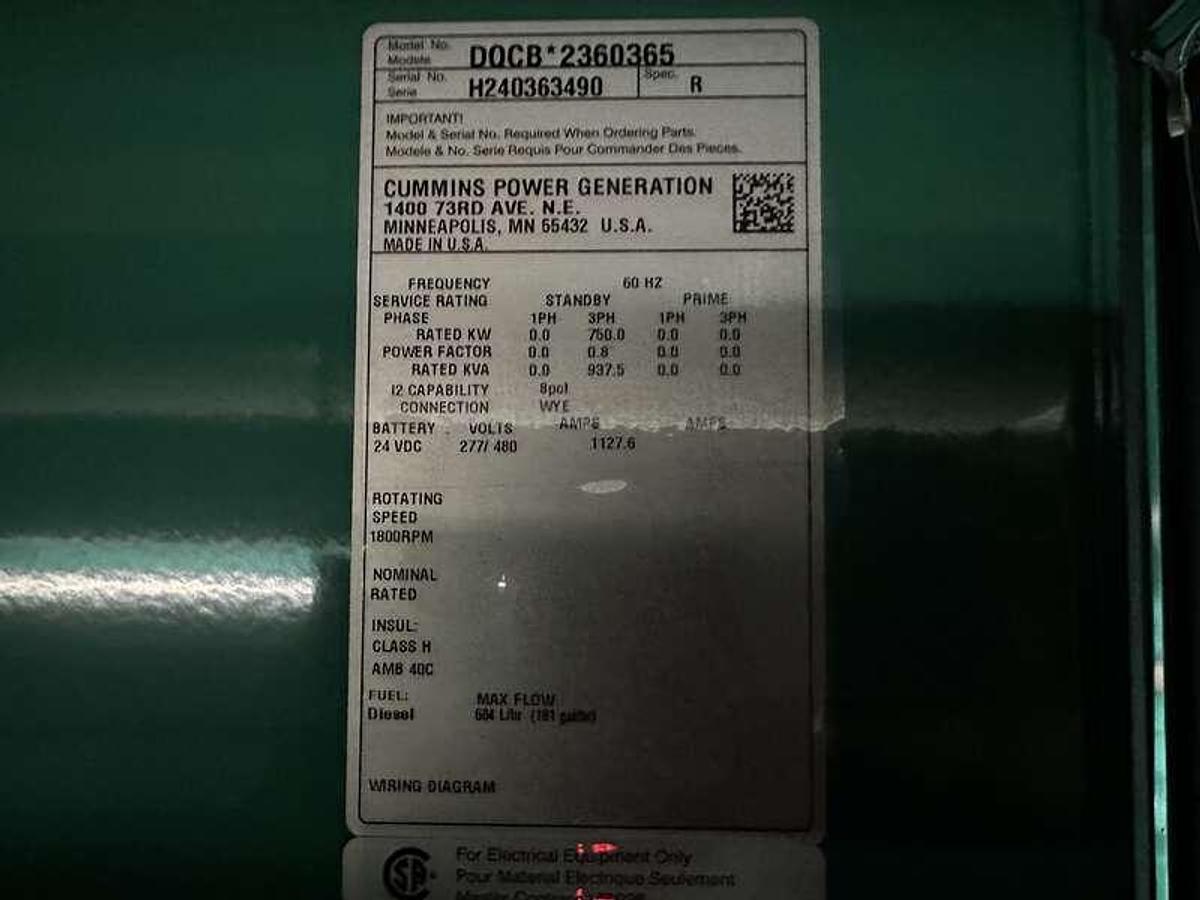

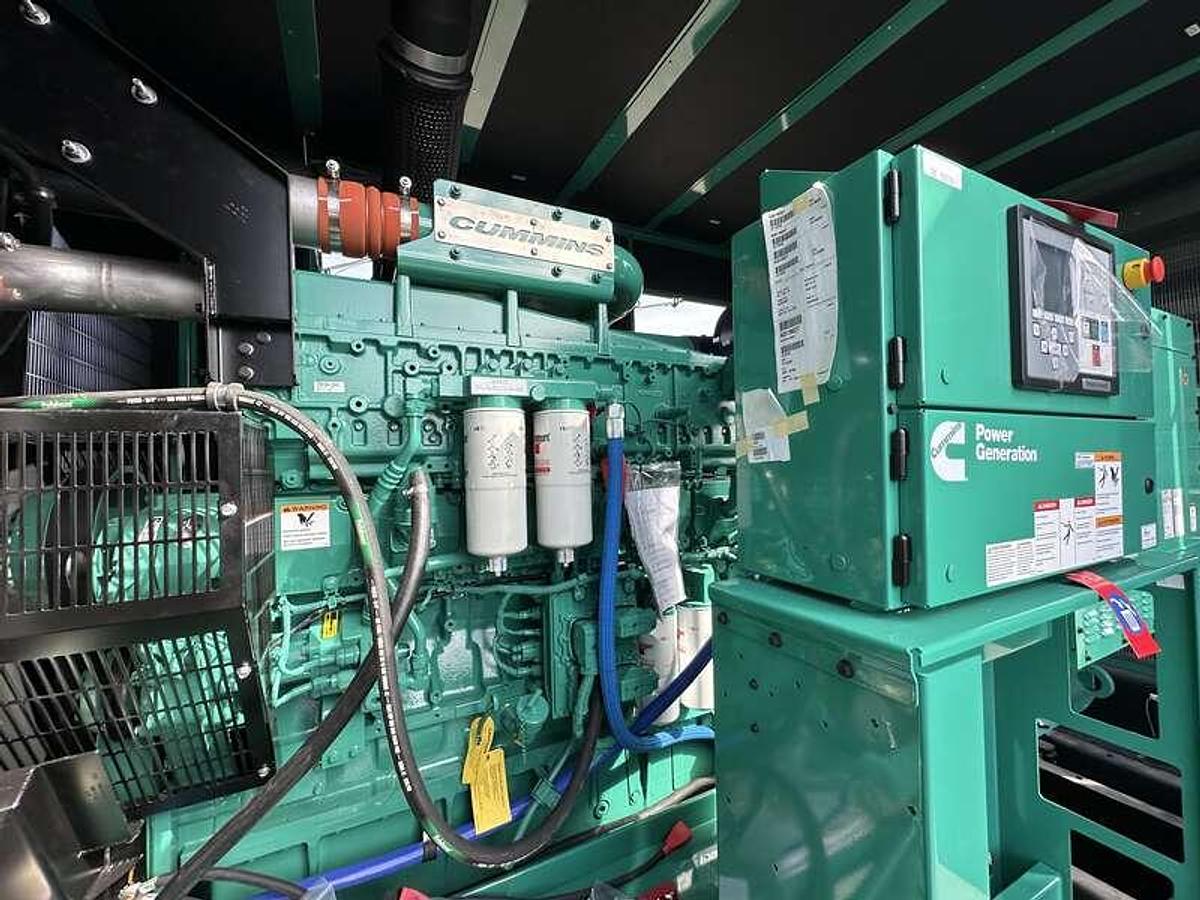

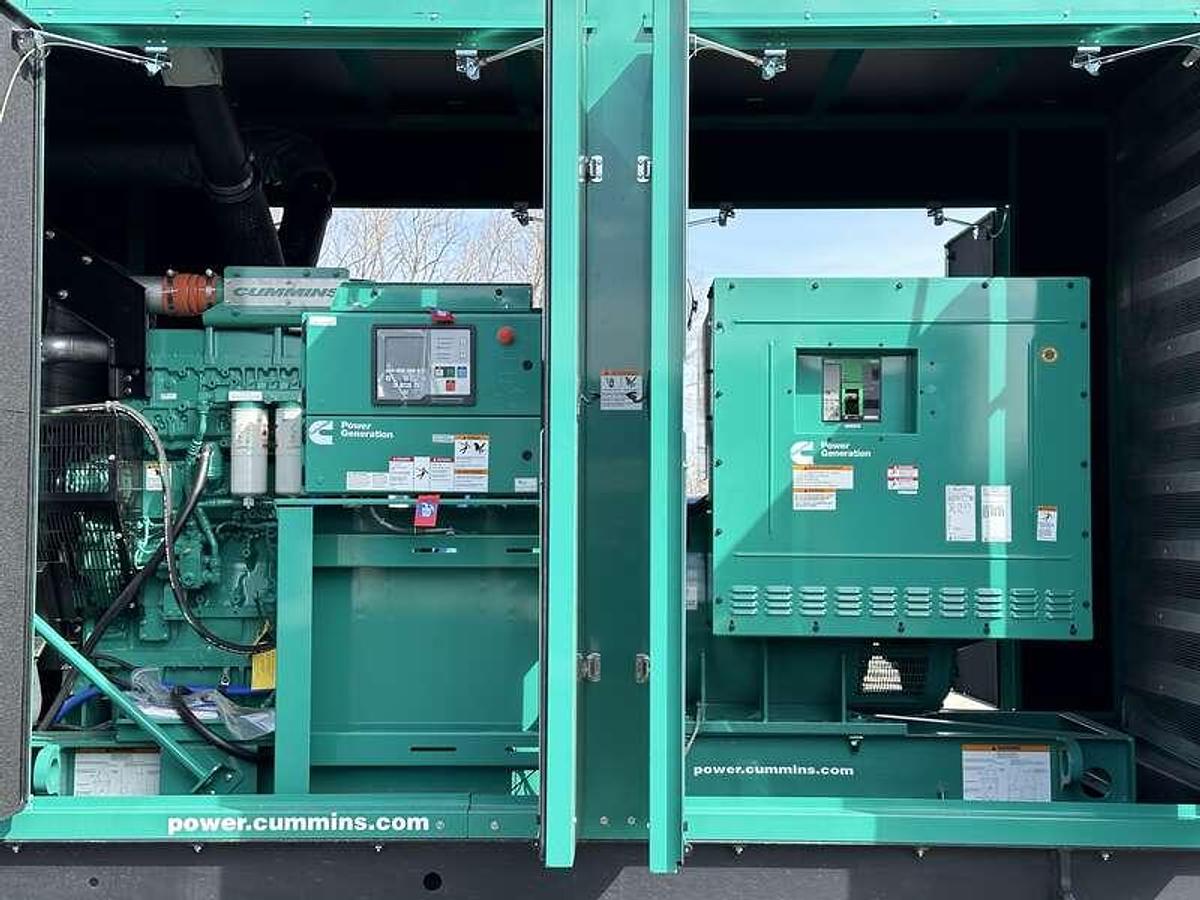

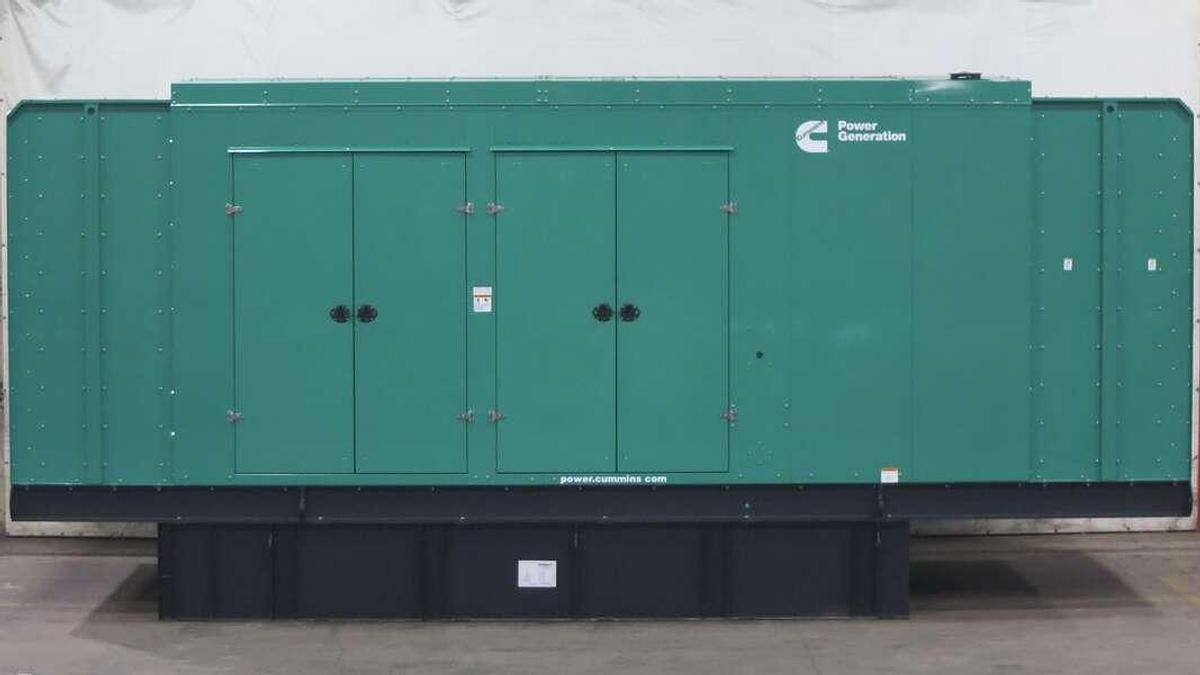

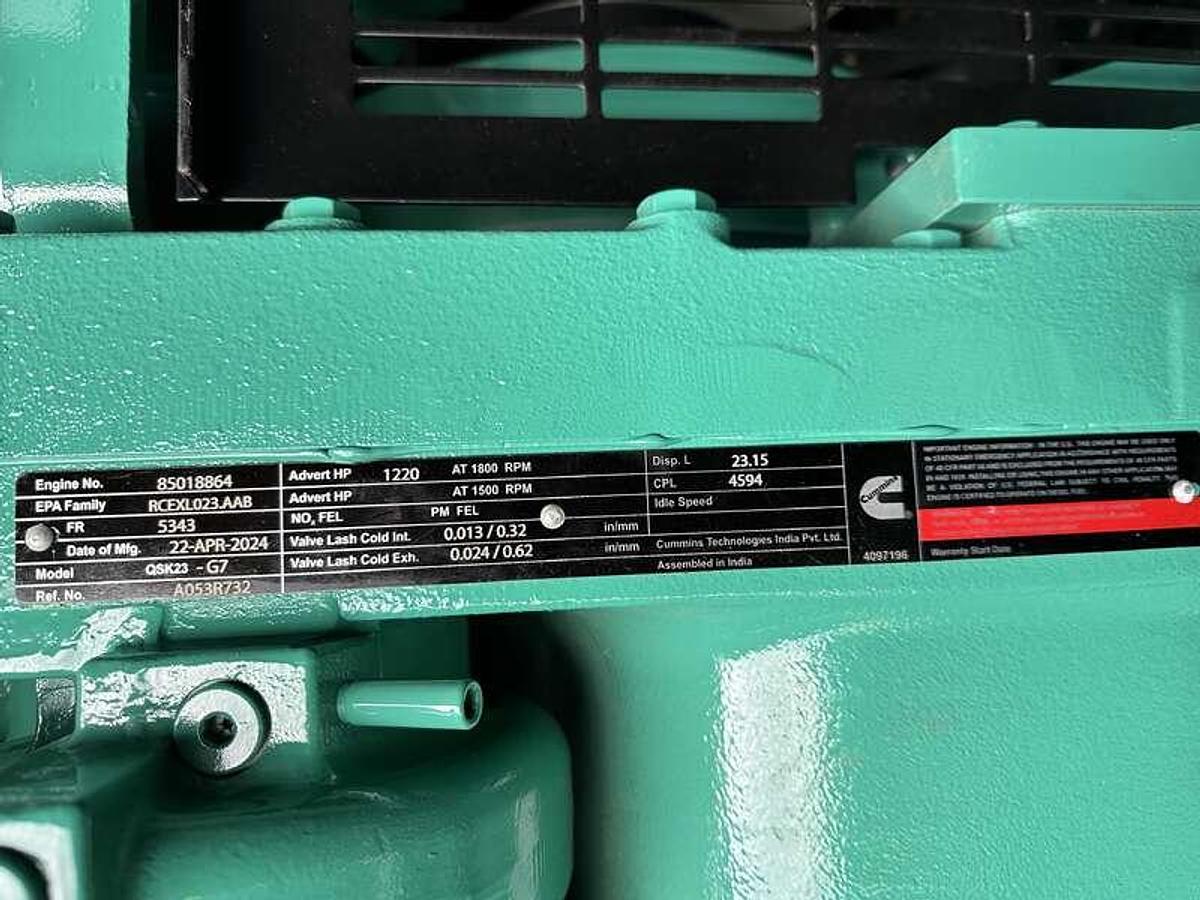

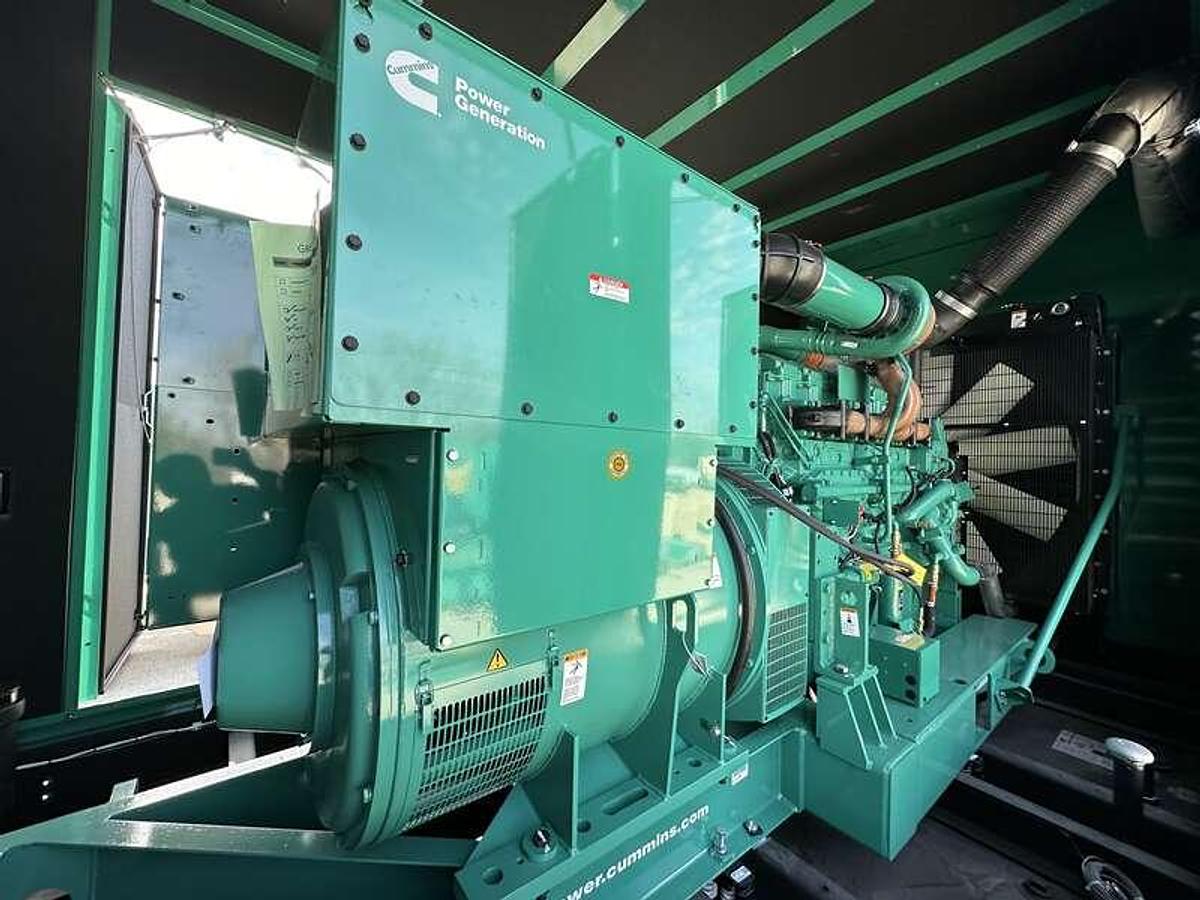

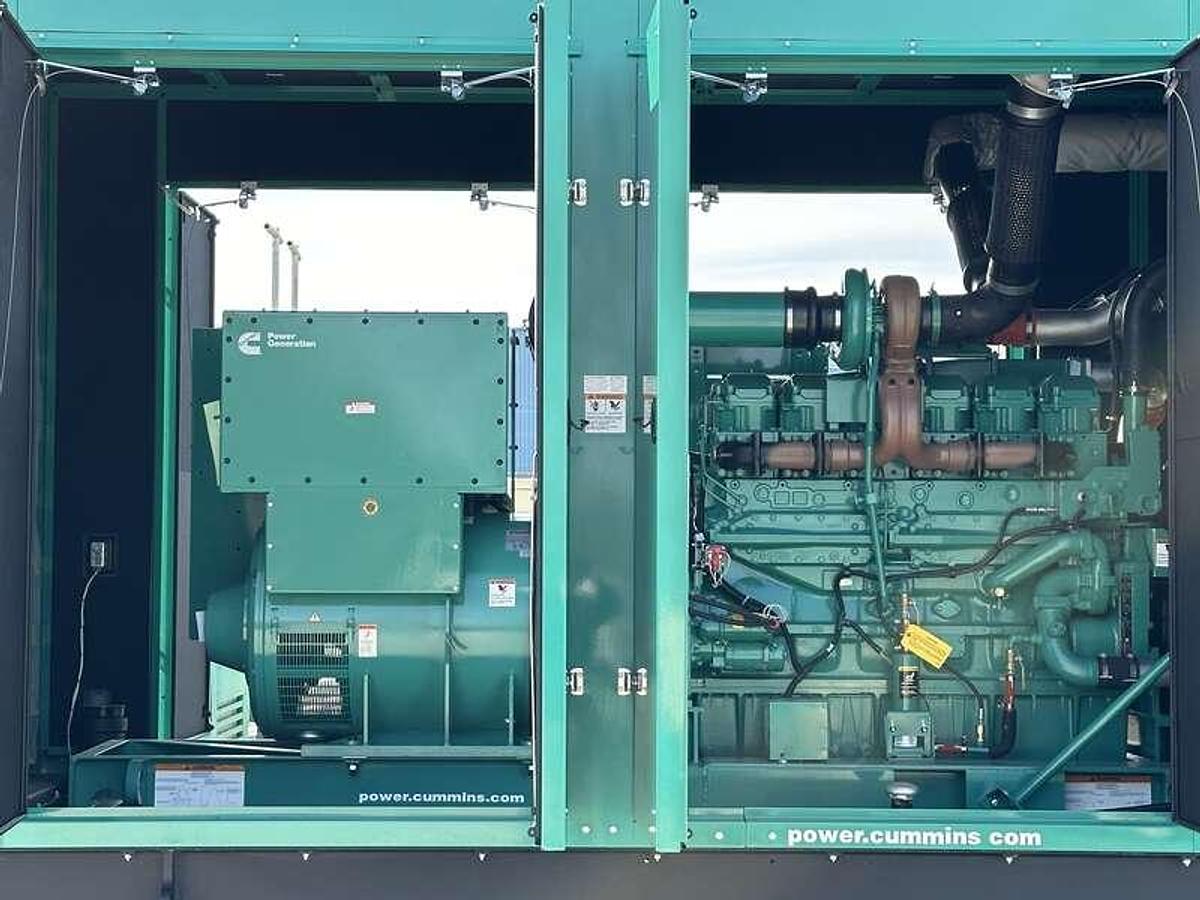

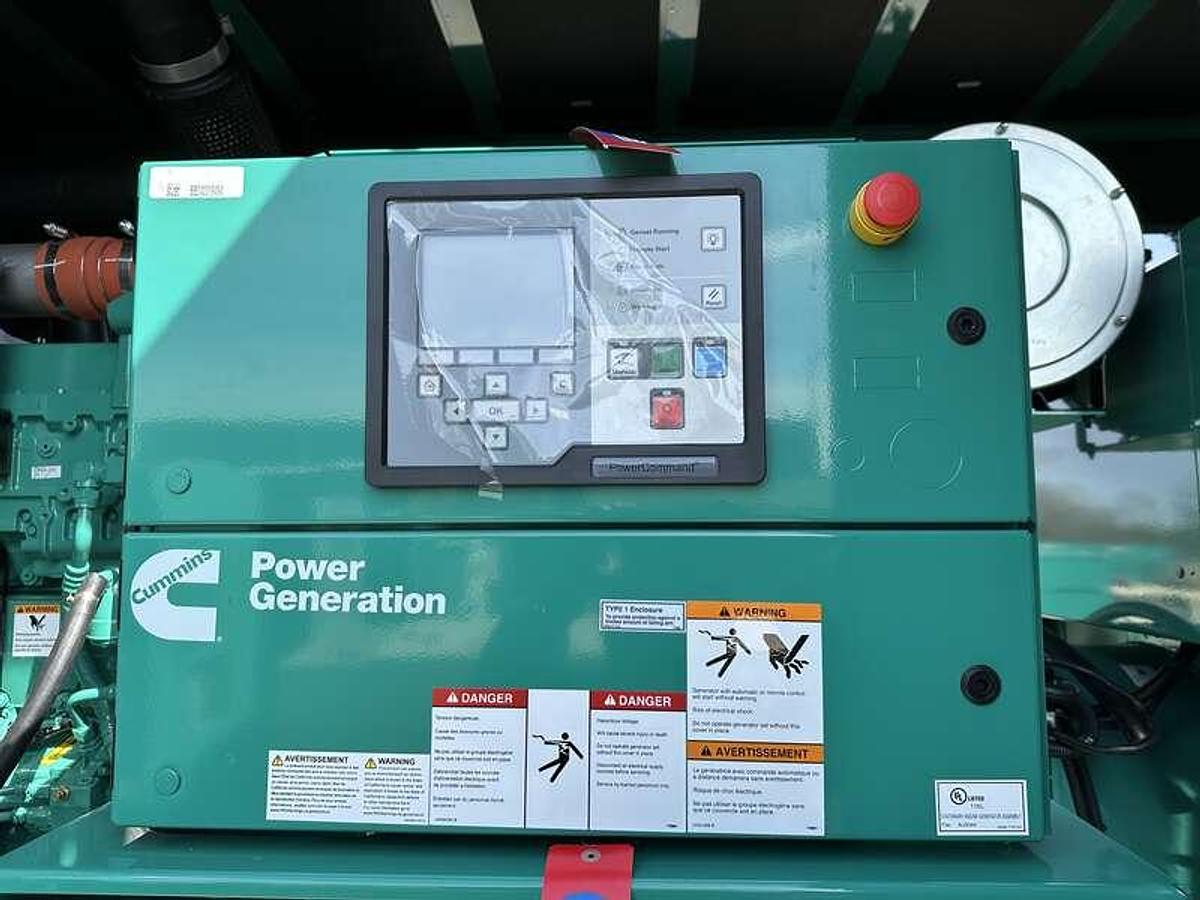

New Cummins 750 kW standby (680 kW prime) diesel generator set, model DQCB, SN-H240363490. Cummins QSK23-G7 engine rated 1220 HP at 1800 RPM, SN-85018864, EPA Tier 2 emissions. 3/60/277/480V, 4 wire non-reconnectable to other voltages. 1200 Amp 100% rated main-line circuit breaker. PMG permanent magnet generator. Oversized generator end rated 820 kW. Engine cooling radiator rated 50C/122F ambient. UL 2200 listed package. PowerCommand 2.3 digital control panel. Sens battery charger 10 amp 120/208/240V ships loose. Coolant heater 208/240/480V. Sound attenuated level 2 enclosure. 1500 gallon UL142 sub-base fuel tank with secondary containment. Batteries and start up not included. 0 Hours. Year 2024. 5 Yr 2500 Hr warranty. Overall dimensions 101W x 315L x 146H, 31,139 lbs.

Download Documents

New-Cummins-DQCB-submittal.pdf

New-Cummins-DQCB-data-sheet.pdf

New-Cummins-DQCB-spec-sheet.pdf
