Used Cummins DFHA QST30-G1 Diesel Generator 554 Hrs 750 kW

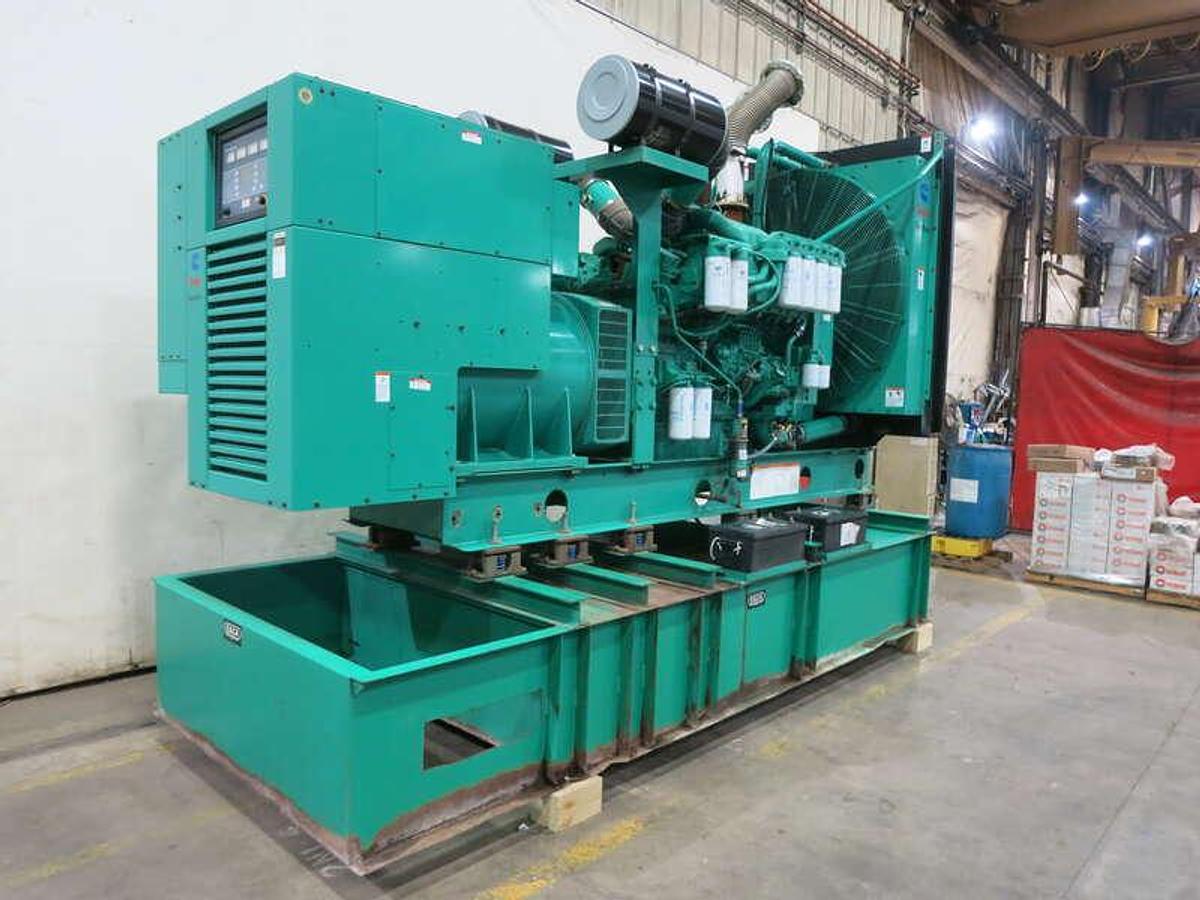

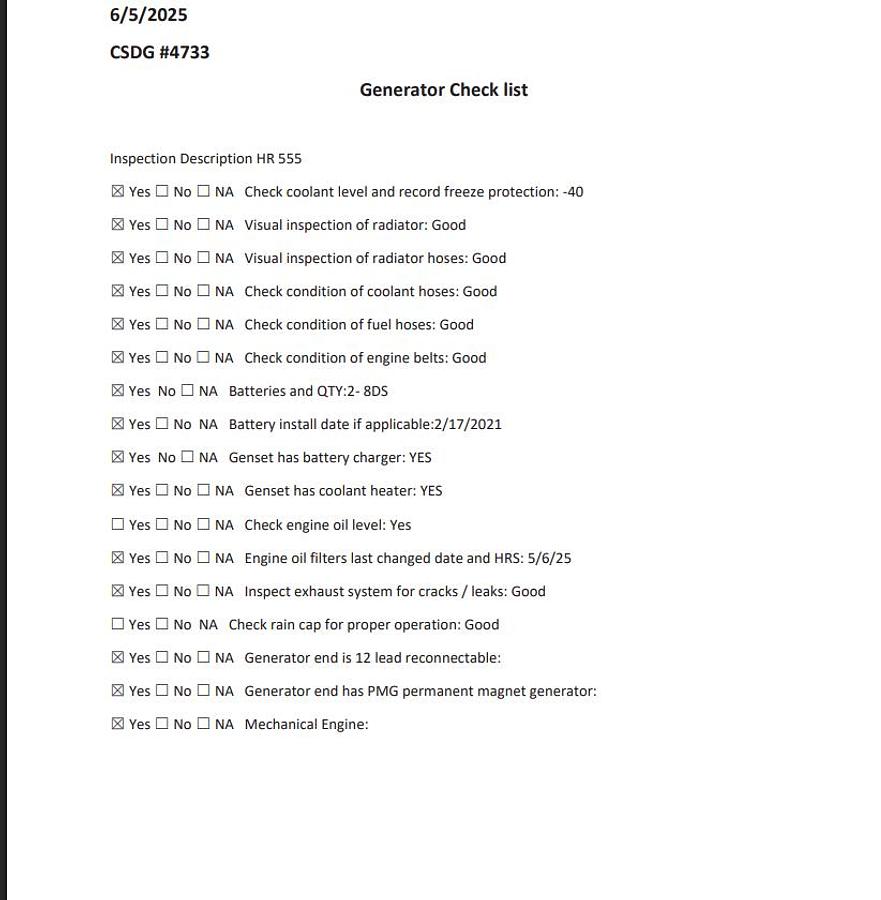

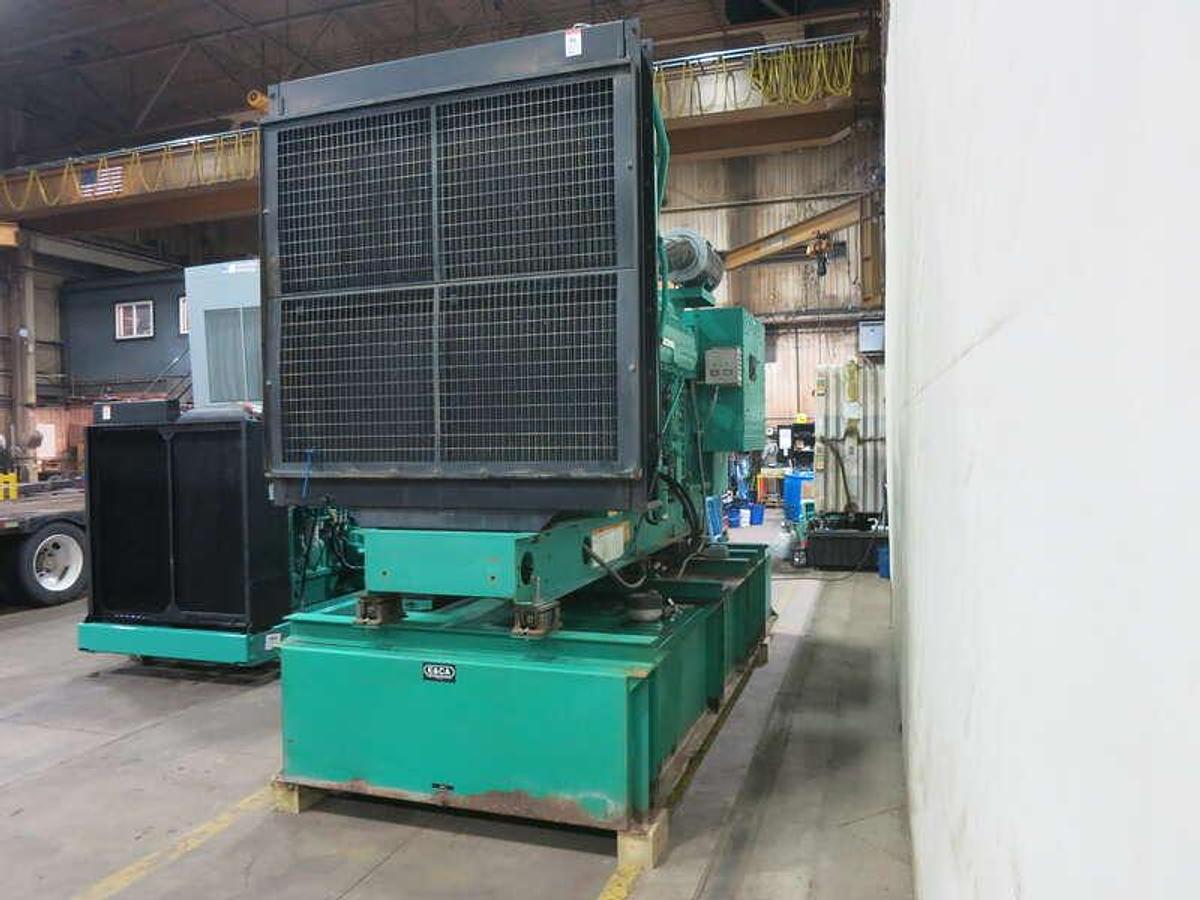

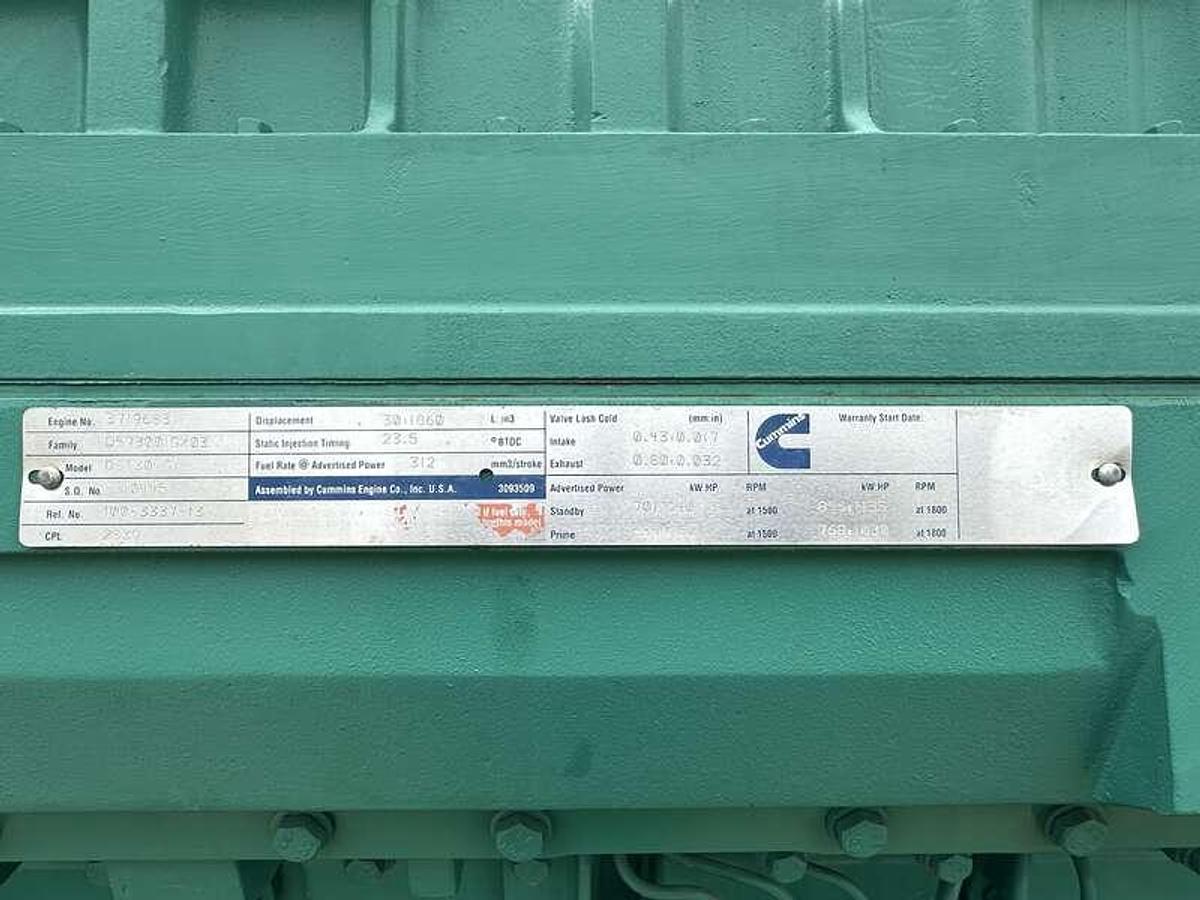

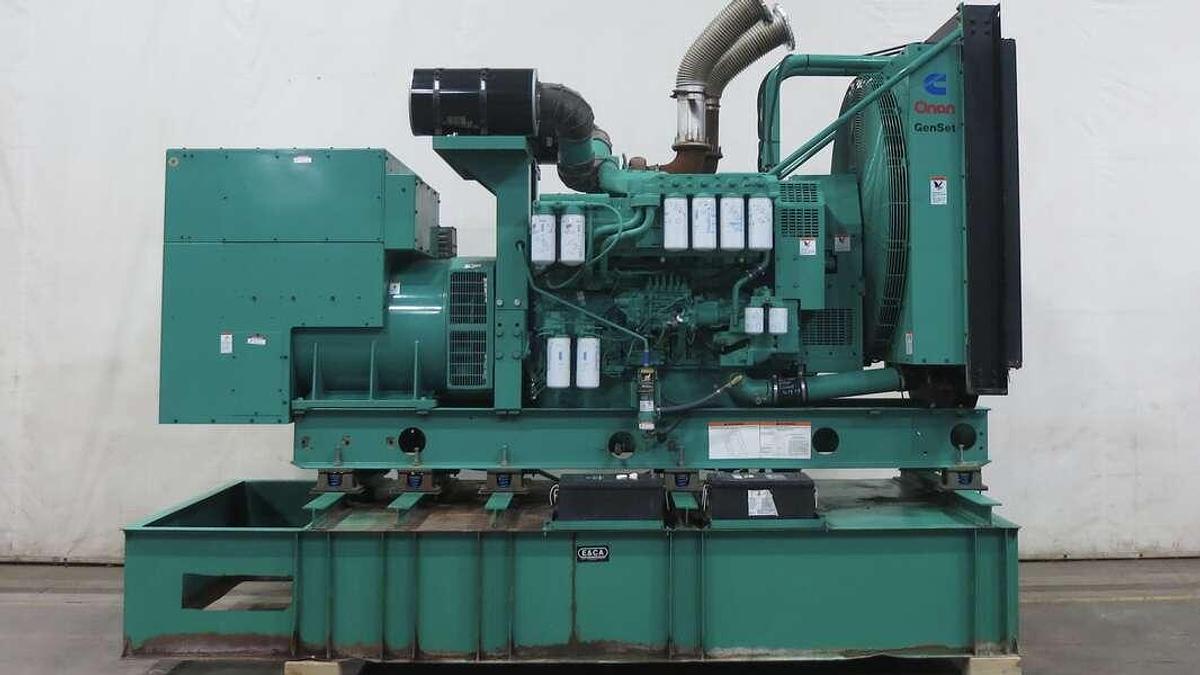

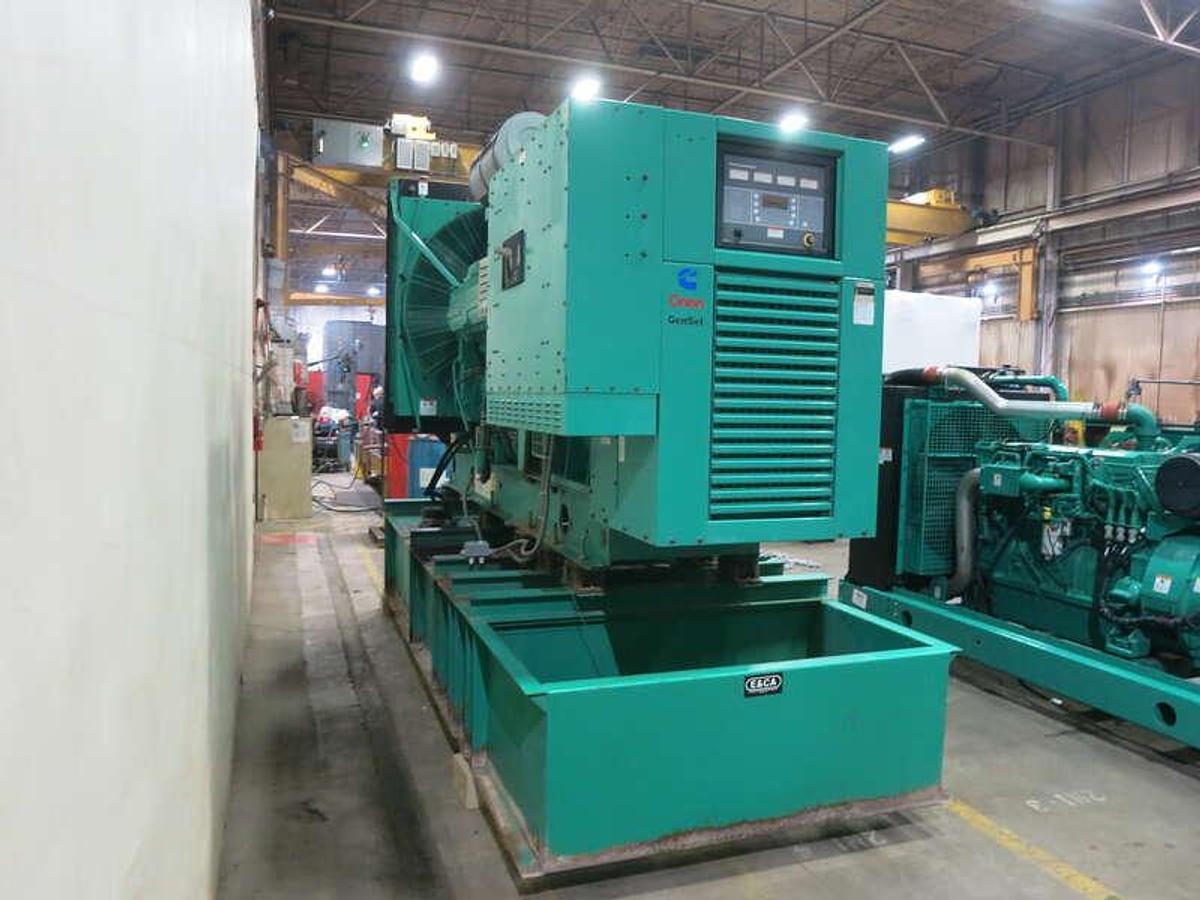

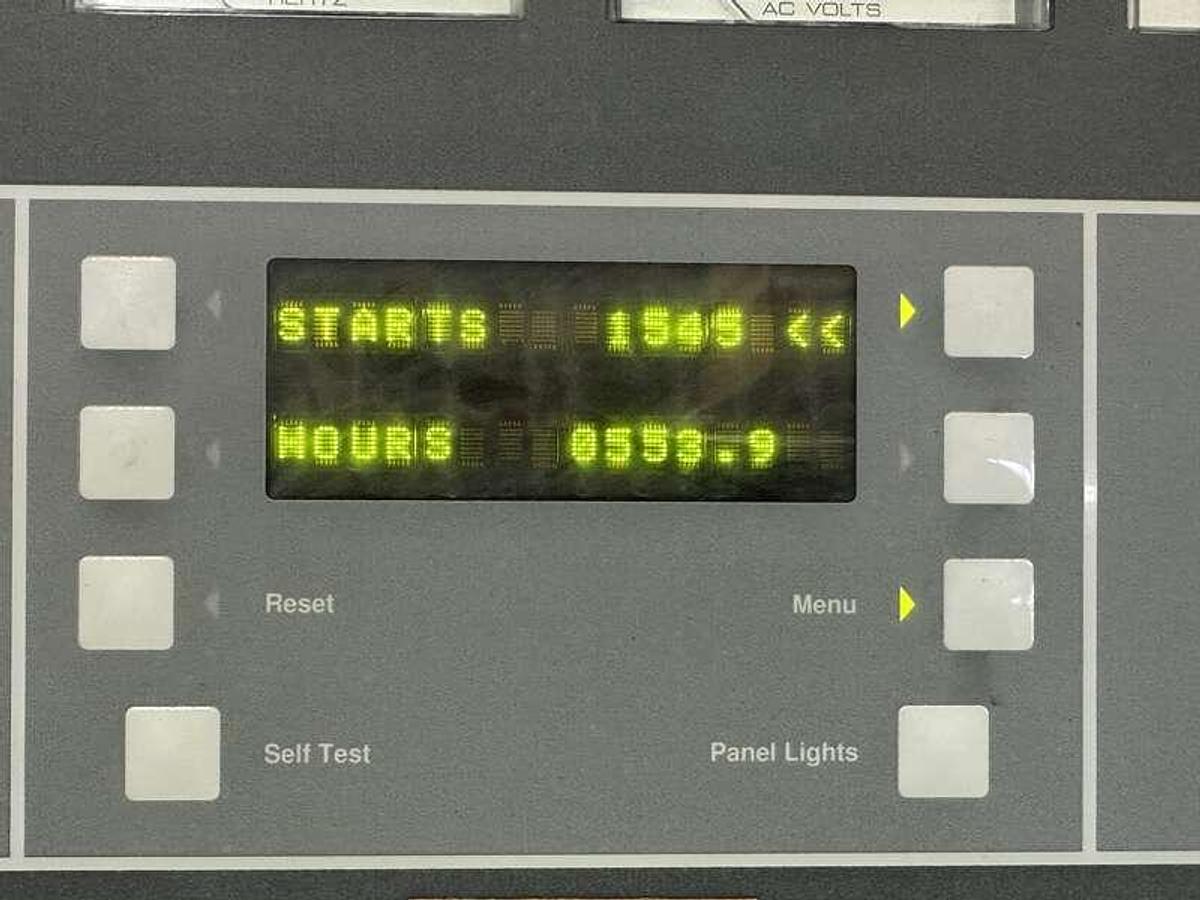

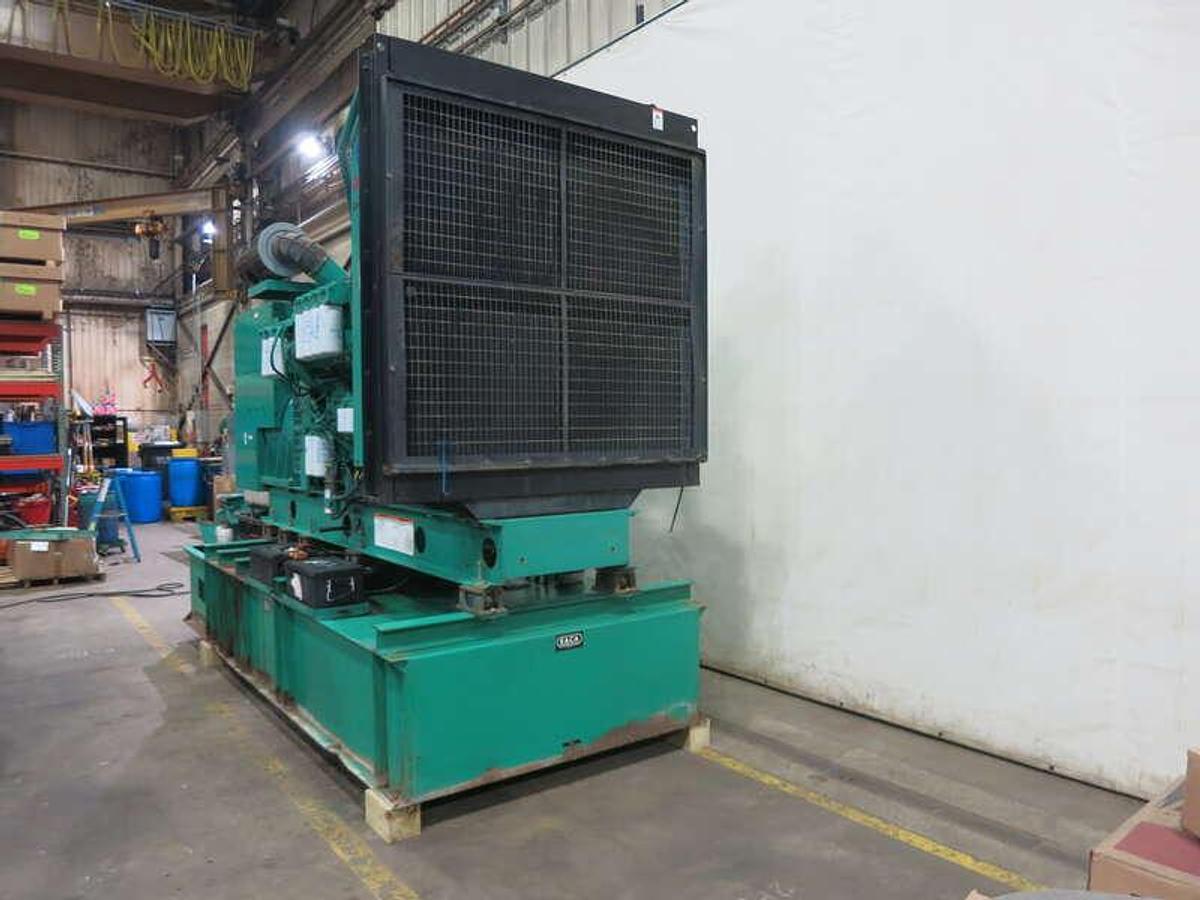

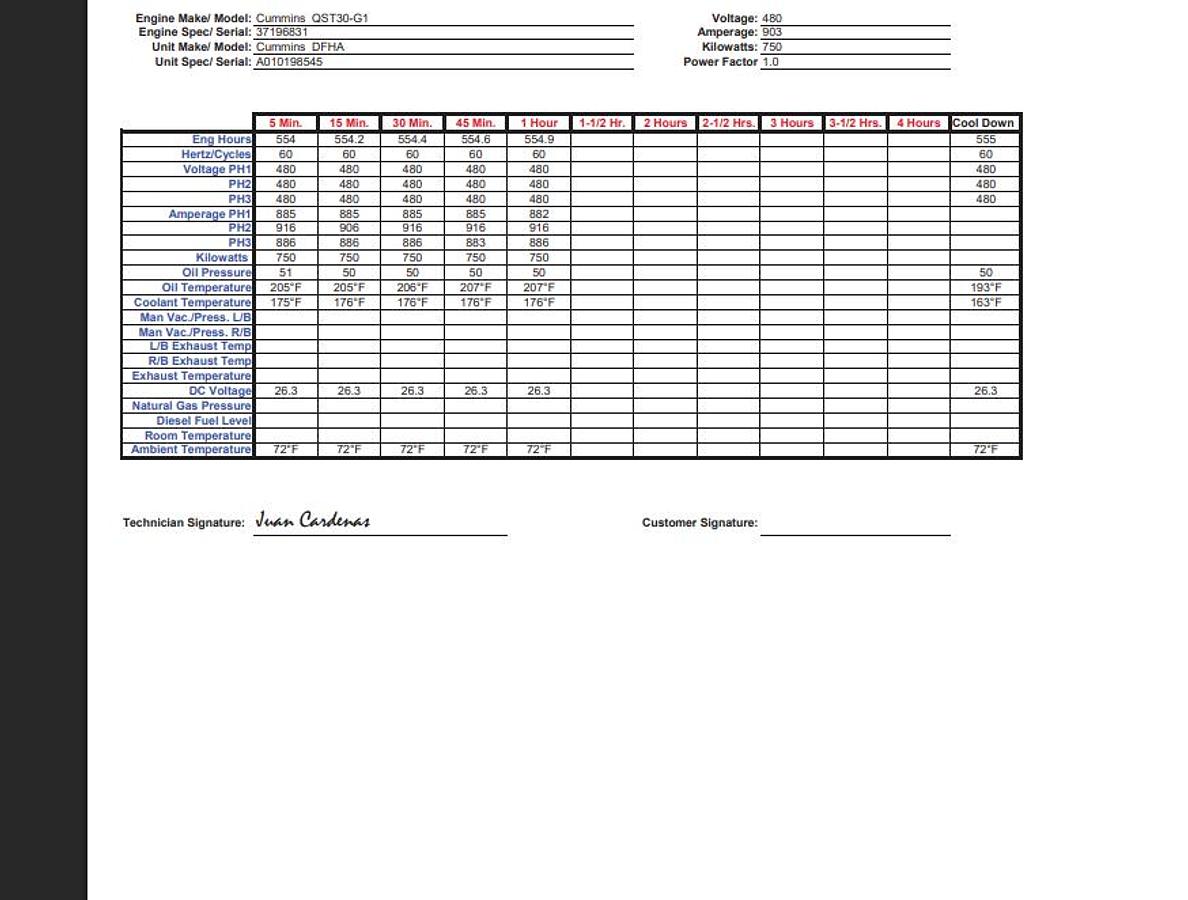

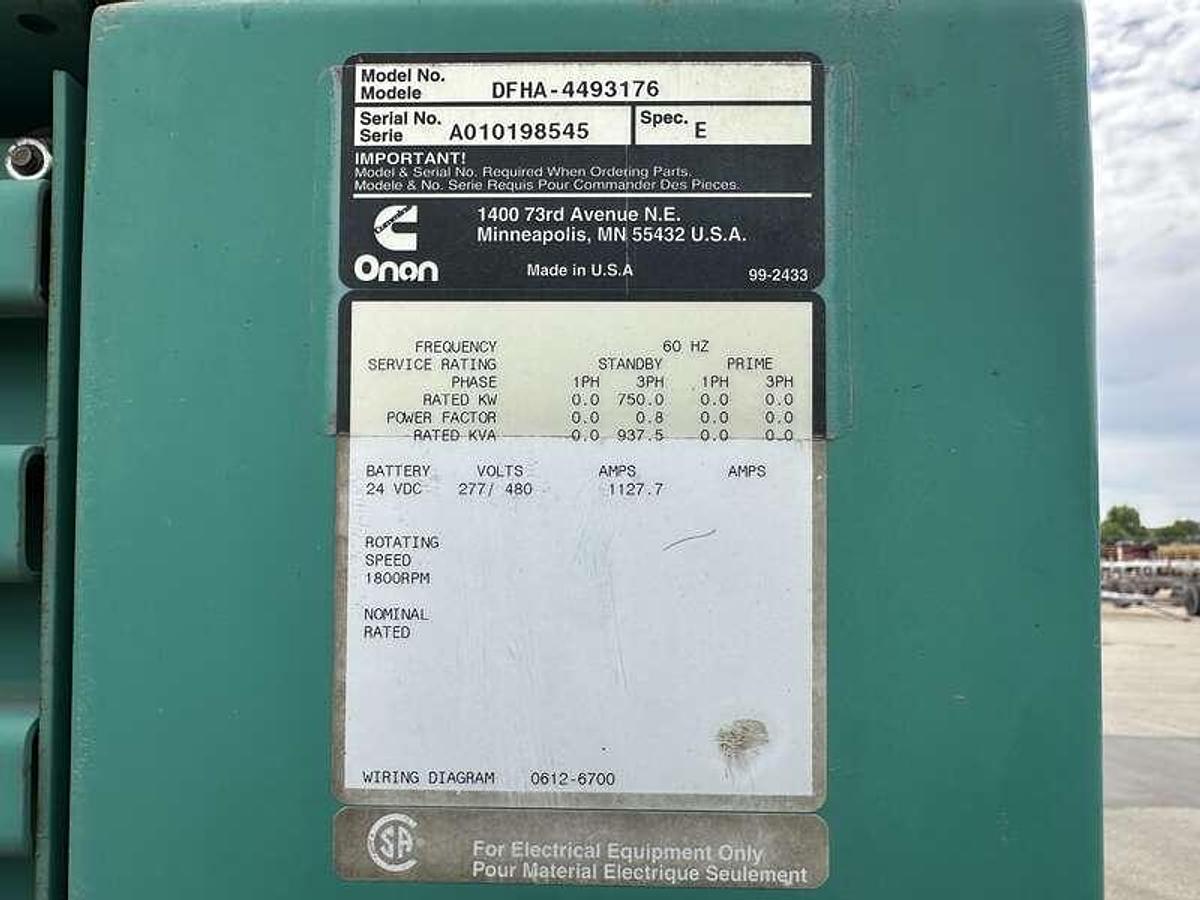

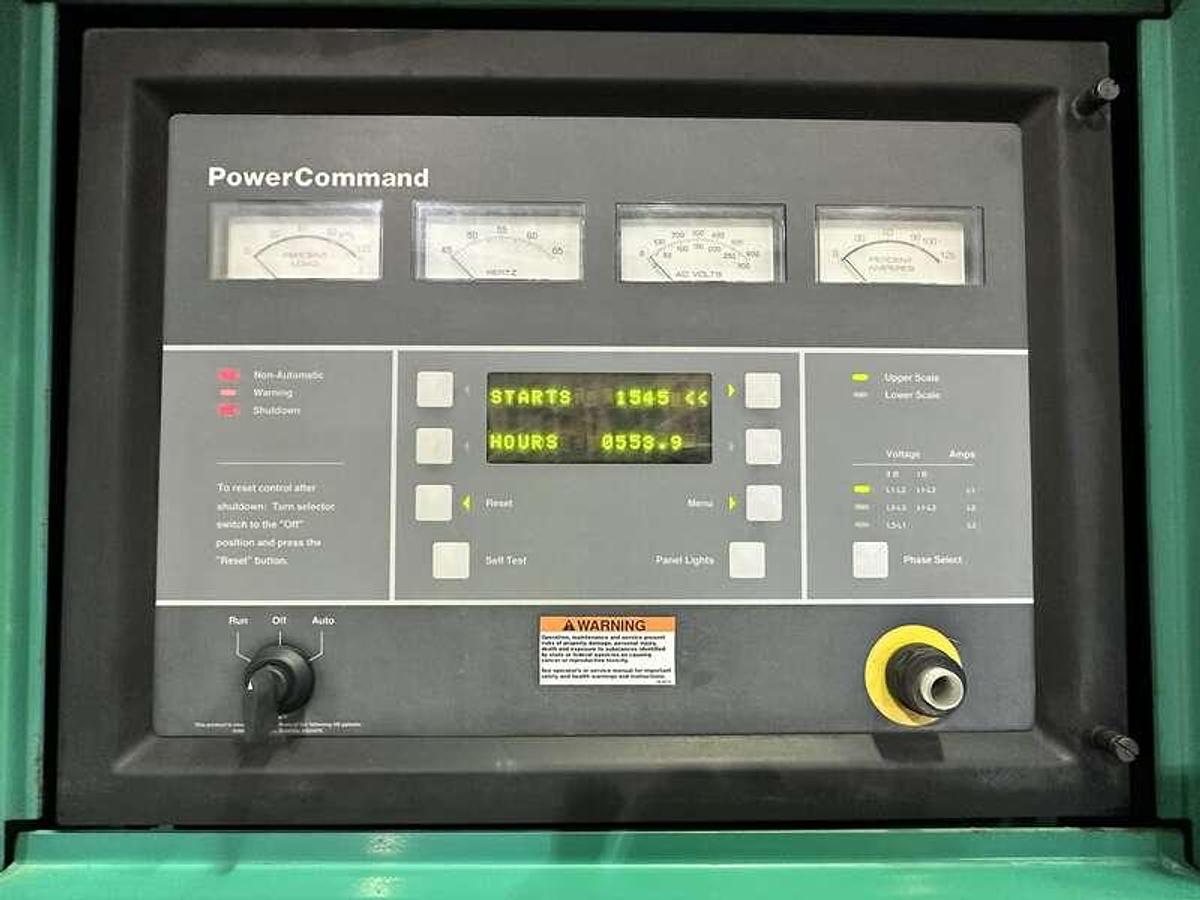

Cummins 750 kW standby (680 kW prime) diesel generator set model 750DFHA, SN-A010198545. Cummins QST30-G1 engine rated 1435 HP at 1800 RPM, SN-37196831. 3/60/277/480V, 12 lead reconnectable to other voltages. 1200 Amp main-line circuit breaker. PMG - permanent magnet generator. PowerCommand digital control panel. Dual coolant heaters. No batteries. Open power unit with engine driven radiator. 700 gallon sub-base fuel tank with secondary containment. 554 Hours. Yr 2001. Overall dimensions genset 69W x 168L x 131H on 6H blocks, 20,000 lbs. Passed load test 6/5/25.

Download Documents

Cummins-750DFHA-spec-sheet.pdf
