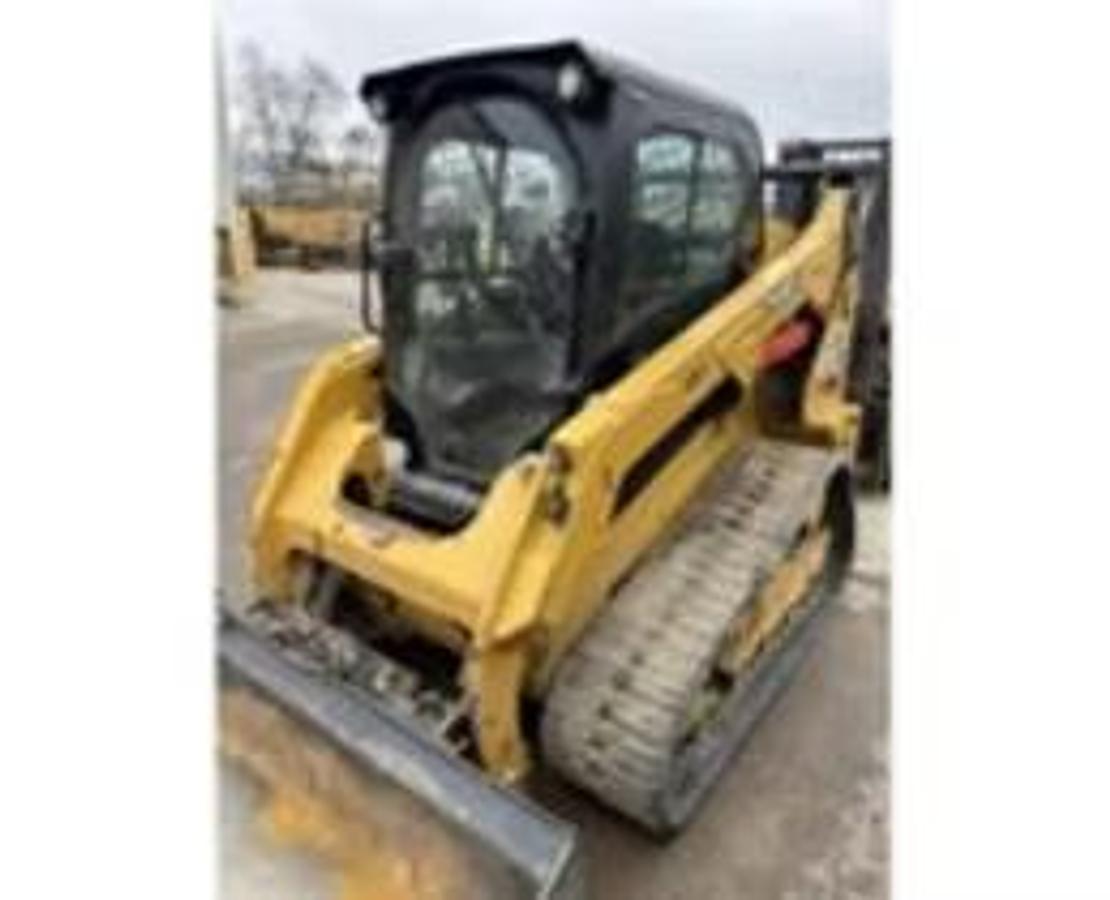

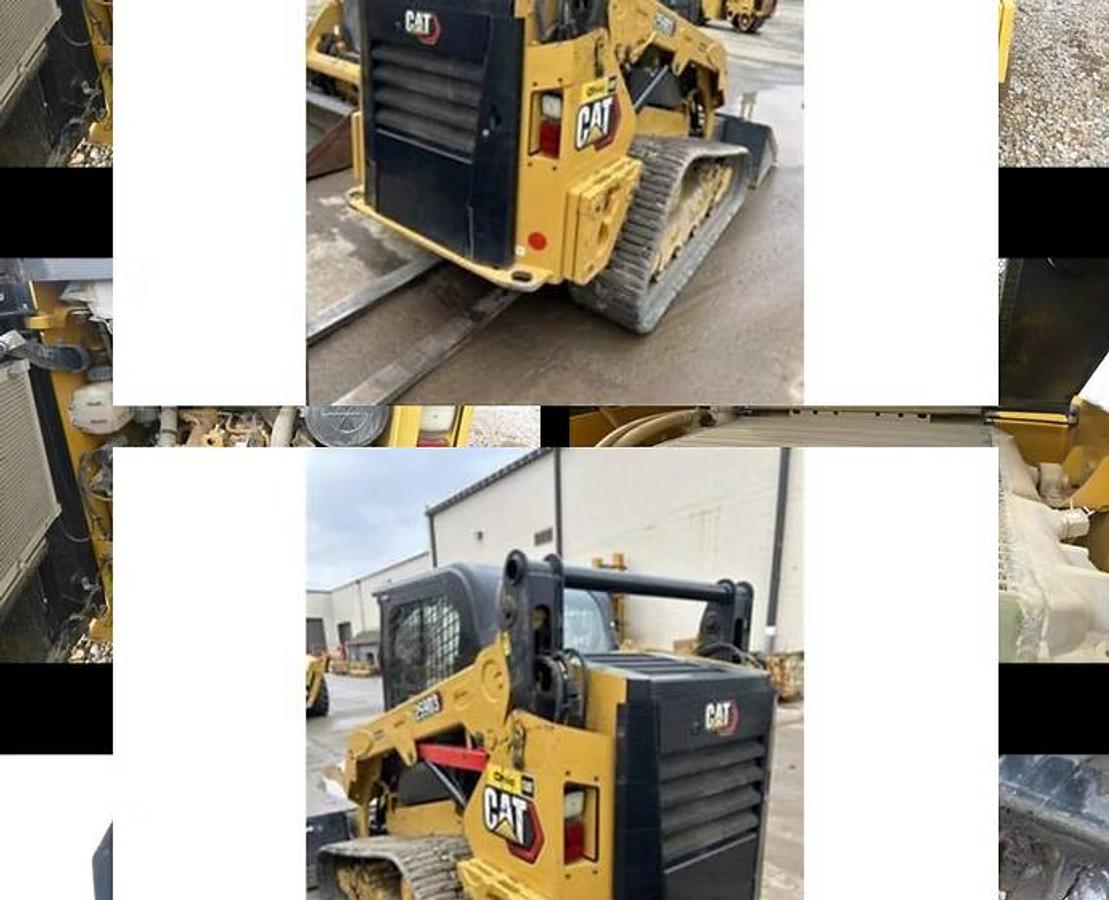

Cat® 259D3 COMPACT TRACK LOADER 2020


Sold AS Is Multiple units available Contact for details

Financing Available on our Main Paige
Extended CAT Warranty Available at Additional Cost

Inspection Reports are all available to email you.
Maintenance Records are Avail. ANY AND ALL WORK ON THIS MACHINE FOR ANY REASON WAS DONE BY THE CAT DEALER.
Scroll down the page to view full factory Specifications

Just Arrived for Sale:
Financing Available & Extended CAT Warranty Avail.
2018 CAT 289D Compact Track Loader 1,572 Hrs. $68,250


The Cat® 259D3 Compact Track Loader, with its vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its standard, suspended undercarriage system provides superior traction, flotation, stability and speed to work in a wide range of applications and underfoot conditions. The 259D3 features the following:

Industry leading sealed and pressurized cab option provides a cleaner and quieter operating environment with excellent work tool visibility.

Available high-back, heated, air ride seat with seat mounted adjustable joystick controls makes the D3 Series the industry leader in operator comfort.

High performance power train provides maximum performance and production capability through the Electronic Torque Management system, standard two speed travel and an electronic hand/foot throttle with decel pedal capability.

High Flow hydraulic system is available for applications that demand maximum hydraulic work tool performance.

Cat C3.3B engine and high performance power train provide high engine horsepower and torque, allowing partial-throttle operation for lower sound levels and fuel consumption.

Cat “Intelligent Leveling” system provides industry leading technology, integration, and available features such as dual direction self level, work tool return to dig, and work tool positioner.

Standard fully independent torsion axle suspension combined with the optional Speed Sensitive Ride Control system improves operation on rough terrain, enabling better load retention, increased productivity and greater operator comfort.

Maximize machine capability and control with optional Advanced Display providing on-screen adjustments for implement response, hystat response and creep control. Also features multi-language functionality with customizable layouts, security system and rearview camera.

Ground level access to all daily service and routine maintenance points helps reduce machine downtime for greater productivity.

Broad range of performance matched Cat Work Tools make the Cat Compact Track Loader the most versatile machine on the job siTE.

Less

Quantity*

SPECIFICATIONS

• Specifications
• Dimensions
• C
• Height To Top Of Cab
• 6.93ft in
• E
• Ground Clearance
• 8.9in
• G
• Clearance At Max Lift And Dump
• 7.5ft in
• H
• Reach At Max Lift And Dump
• 2ft in
• Clearance At Maximum Lift And Dump
• 89.9in
• Departure Angle
• 35 degrees
• Dump Angle
• 52degrees
• Height - Top Of Cab
• 6.93ft in
• Note
• Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, OROPS, 1676 mm (66 in) dirt bucket, 320 mm (12.6 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).
• Bucket Pin Height - Carry Position
• 7.8in
• Bucket Pin Height - Maximum Lift
• 10.09ft in
• Bucket Pin Reach - Maximum Lift
• 9.4in
• Turning Radius From Center - Machine Rear
• 61.5in
• Vehicle Width (320 Mm/12.6 In Tracks)
• 66in
• Vehicle Width (400 Mm/15.7 In Tracks)
• 69in
• Length - Track On Ground
• 59in
• Length - With Bucket On Ground
• 137.31in
• Length - Without Bucket
• 108.9in
• Length With Bucket
• 11.44ft in
• Length With Out Bucket
• 9.08ft in
• Maximum Dump Angle
• 52 degrees
• Maximum Overall Height
• 154.1in
• Maximum Reach - With Arms Parallel To Ground
• 51.4in
• Overall Height
• 12.85ft in
• Overall Length - Track
• 78.7in
• Overall Track Length
• 6.56ft in
• Rack Back Angle - Maximum Height
• 87 degrees
• Reach - Maximum Lift/Dump
• 23.9in
• Turning Radius From Center - Bucket
• 86in
• Turning Radius From Center - Coupler
• 54.8in
• Undercarriage
• D
• Length Of Track On Ground
• 11.44ft in
• Ground Pressure
• 5.97psi
• Ground Contact Area
• 1488.01in2
• Specifications
• Engine
• Engine Make
• DIT
• Engine Model
• Cat C3.3B
• Gross Power
• 74.3hp
• Net Power
• 73.2hp
• Peak Torque
• 195.5lb ft
• Torque Measured @
• 1500rpm
• Displacement
• 203cu in
• Bore
• 3.7in
• Stroke
• 4.7in
• Net Power - Iso 9249
• 73.9hp
• Gross Power - Sae J1995
• 74.3hp
• Engine Model
• Cat C3.3B DIT (turbo)
• Net Power - Sae 1349
• 73.2hp
• Peak Torque - 1,500 Rpm - Sae J1995
• 195lb ft
• Operational
• Operating Weight
• 8847.2lb
• Cooling System Fluid Capacity
• 3.7gal
• Fuel Capacity
• 27.8gal
• Engine Oil Capacity
• 3gal
• Hydraulic System Fluid Capacity
• 13.3gal
• Operating Voltage
• 12V
• Alternator Supplied Amperage
• 80amps
• Max Speed - Low Range
• 6mph
• Max Speed - High Range
• 8.6mph
• Power Train
• Travel Speed - Forward Or Reverse - One Speed
• 5.9mph
• Travel Speed - Forward Or Reverse - Two Speed
• 8.5mph
• Loader
• Breakout Force
• 5035.4lb
• Tipping Load
• 5800.4lb
• Operating Load
• 2899.1lb
• Weights
• Operating Weight
• 8945lb
• Note
• Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, OROPS, 1676 mm (66 in) dirt bucket, 320 mm (12.6 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).
• Operating Weight - 320 Mm/12.6 In Tracks
• 8846lb
• Operating Weight - 400 Mm/15.7 In Tracks
• 8945lb
• Hydraulic
• Pump Flow
• 20.1gal/min
• Relief Valve Pressure
• 3335.9psi
• Hydraulic System
• Hydraulic Flow - Standard - Loader Hydraulic Pressure
• 3335 psi
• Hydraulic Flow - Standard - Loader Hydraulic Flow
• 20 gal/min
• Hydraulic Flow - Standard - Hydraulic Power (Calculated)
• 39hp
• Hydraulic Flow - High Flow - Hydraulic Power (Calculated)
• 58hp
• Hydraulic Flow - High Flow - Loader Hydraulic Pressure
• 3335 psi
• Hydraulic Flow - High Flow - Loader Hydraulic Flow
• 30 gal/min
• Operating Specifications
• Note
• Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, OROPS, 1676 mm (66 in) dirt bucket, 320 mm (12.6 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).
• Rated Operating Capacities - 50% Tipping Load
• 2900lb
• Rated Operating Capacities - 35% Tipping Load
• 2030lb
• Rated Operating Capacity With Optional Counterweight
• 3100lb
• Tipping Load
• 5800lb
• Breakout Force - Tilt Cylinder
• 5035lb
• Ground Contact Area - With 400 Mm/15.7 In Track
• 1848in2
• Ground Pressure - With 400 Mm/15.7 In Track
• 4.8 psi
• Ground Contact Area - With 320 Mm/12.6 In Track
• 1483in2
• Ground Pressure - With 320 Mm/12.6 In Track
• 6 psi
• Service Refill Capacities
• Cooling System
• 3.7gal
• Fuel Tank
• 27.7gal
• Hydraulic Tank
• 10.3gal
• Engine Crankcase
• 3gal
• Hydraulic System
• 13.2gal
• Cab
• Rops
• ISO 3471:2008
• Fops
• ISO 3449:2005 Level I
• Fops Level Ii
• ISO 3449:2005 Level II
• Air Conditioning System
• Air Conditioning
• The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.
• Noise Level
• Note (1)
• Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
• Note (2)
• **The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.
• Note (3)
• ***The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.
• Inside Cab**
• 83 dB(A)
• Outside Cab***
• 103 dB(A)
