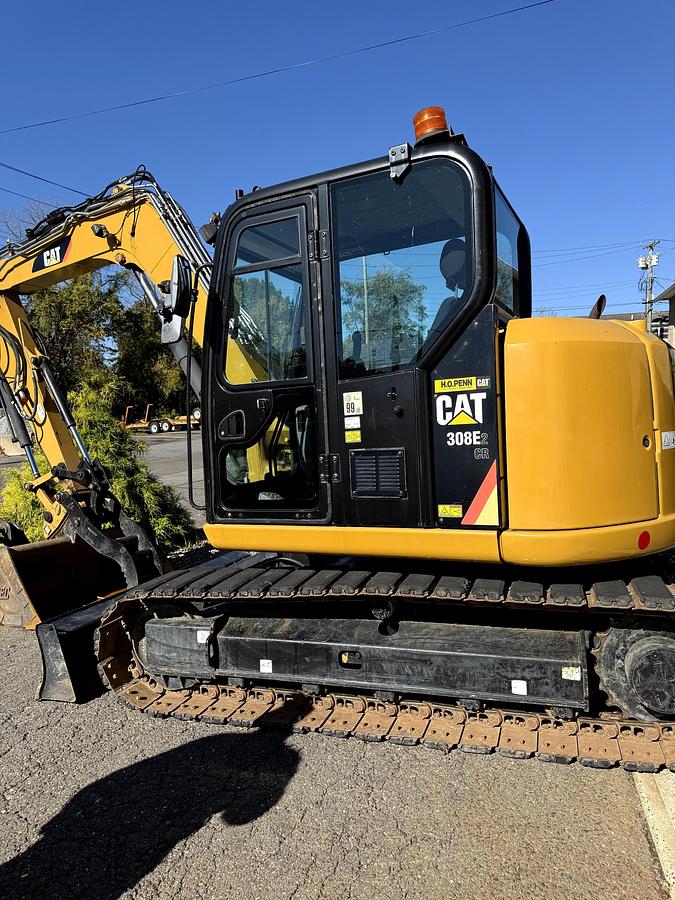

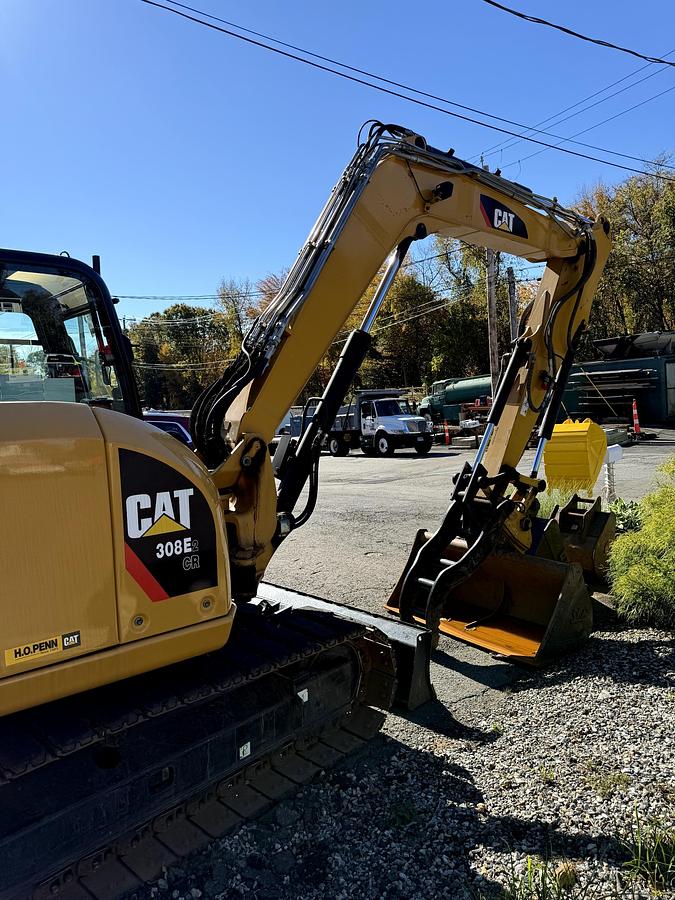

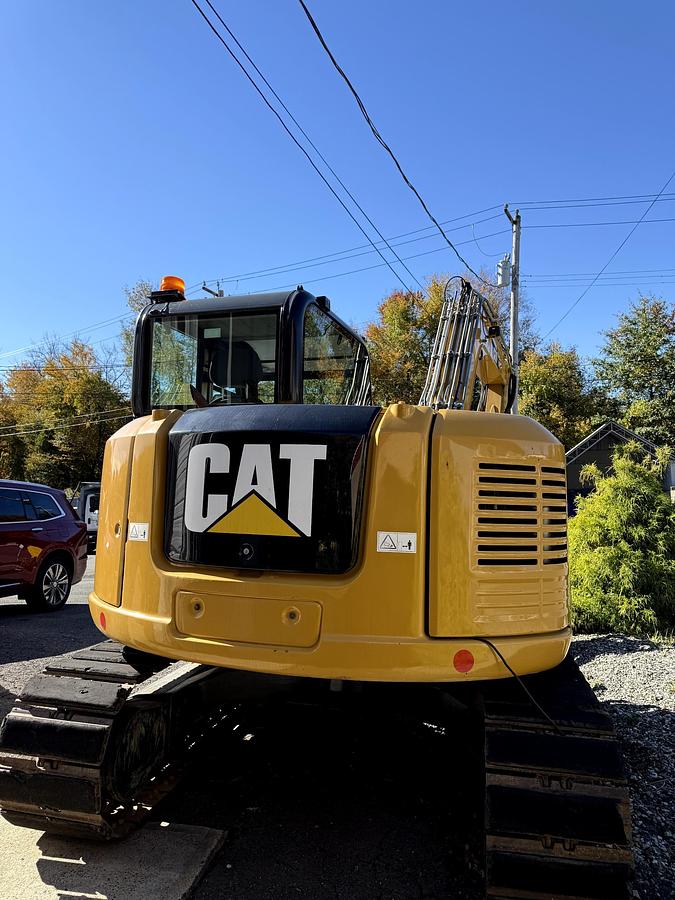

308E2 CR MINI HYDRAULIC EXCAVATOR WITH SWING BOOM

Engine Weights Engine Model Cat C3.3B*

Operating Weight with Cab 8400 kg 18,519 lb

Rated Net Power @ 2,400 rpm •

Weight with rubber tracks, bucket, operator (75 kg/165 lb), full fuel ISO 9249/EEC 80/1269 48.5 kW 65 hp and auxiliary lines.

Gross Power • Weight varies depending on machine configuration. ISO 14396 49.7 kW 66.6 hp Bore 94 mm 3.7 in Stroke 120 mm 4.7 in Displacement 3.33 L 203.2 in3 *Meets U.S. EPA Tier 4 Final and EU Stage IIIB emission standards.

Swing System Machine Swing Speed 11 rpm Boom Swing – Left 60° Boom Swing – Right 50° • Automatic swing break, spring applied, hydraulic release.

Travel System Travel Speed High 5.1 km/h 3.17 mph Low 2.8 km/h 1.74 mph Maximum Traction Force High Speed 37.4 kN 8,408 lb Low Speed 64.5 kN 14,500 lb Gradeability (maximum) 30° Ground Pressure 36.3 kPa 5.26 psi • Each track is driven by one independent 2-speed motor. • Drive modules are integrated into the roller frame for total protection. • Straight line travel when tracking and operating the front linkage simultaneously.

Service Refill Capacities Fuel Tank 125 L 33 gal Cooling System 14 L 3.7 gal Engine Oil 11.2 L 3.0 gal Hydraulic Tank 82 L 21.7 gal Hydraulic System 94 L 24.8 gal

Hydraulic System Pump Flow at 2,000 rpm 150 L/min 39.6 gal/min Operating Pressure – Equipment 28 000 kPa 4,061 psi Operating Pressure – Travel 28 000 kPa 4,061 psi Operating Pressure – Swing 24 000 kPa 3,481 psi Auxiliary Circuit – Primary (186 bar/2,734 psi) 128 L/min 33.8 gal/min Auxiliary Circuit – Secondary (174 bar/2,524 psi) 64 L/min 16.9 gal/min Digging Force – Stick (standard) 40.1 kN 9,015 lb Digging Force – Stick (long) 35.1 kN 7,891 lb Digging Force – Bucket 60.2 kN 13,534 lb • Load sensing hydraulics with variable displacement piston pump.

Blade Width 2320 mm 91.3 in Height Dig Depth Lift Height 450 mm 360 mm 380 mm 17.7 in 14.2 in 15.0 in Cab Dynamic Operator Sound Pressure Average Exterior Sound Pressure 70 dB(A) ISO 6396 99 dB(A) ISO 6395 – Dynamic Test Operating Specifications Stick Length – Standard Stick Length – Long Machine Overhang Machine Overhang with Counterweight Counterweight 1670 mm 2210 mm 279.4 mm 406 mm 251 kg 5 ft 6 in 7 ft 3 in 11 in 16 in 551 lb
