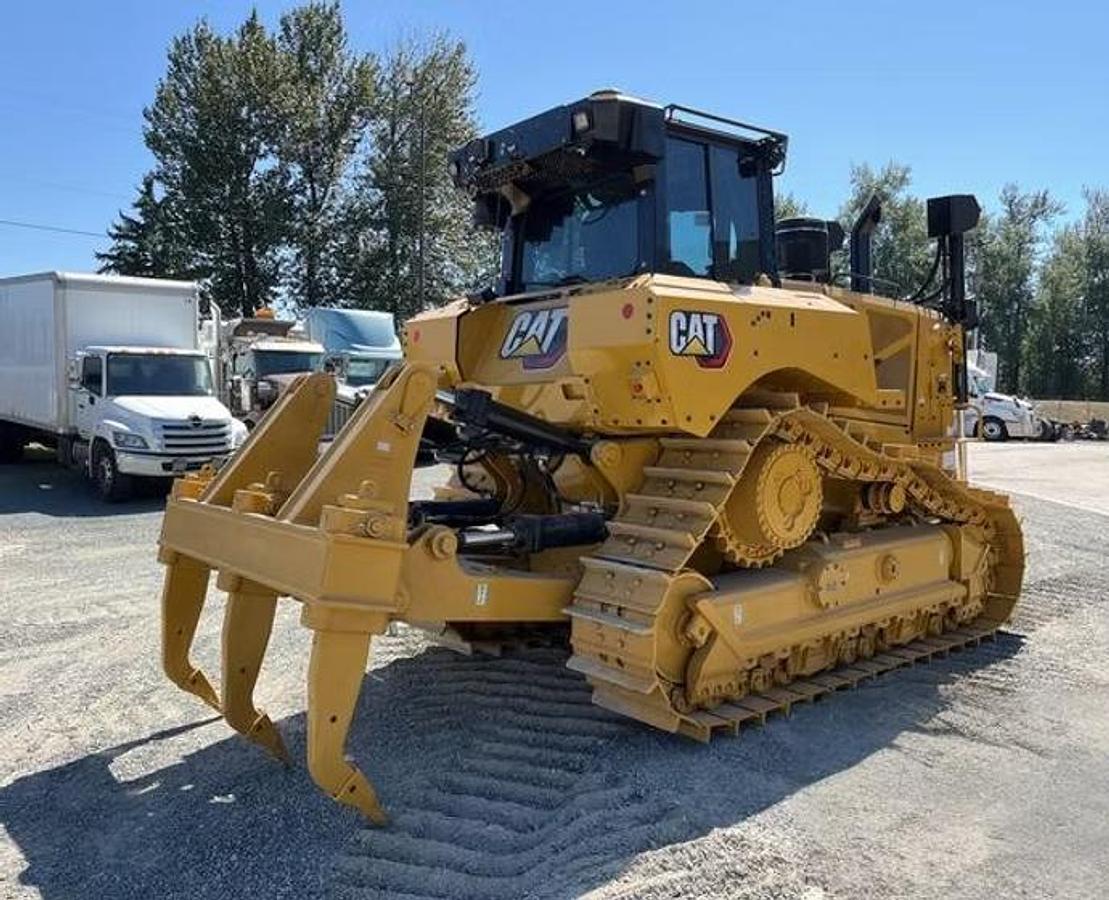

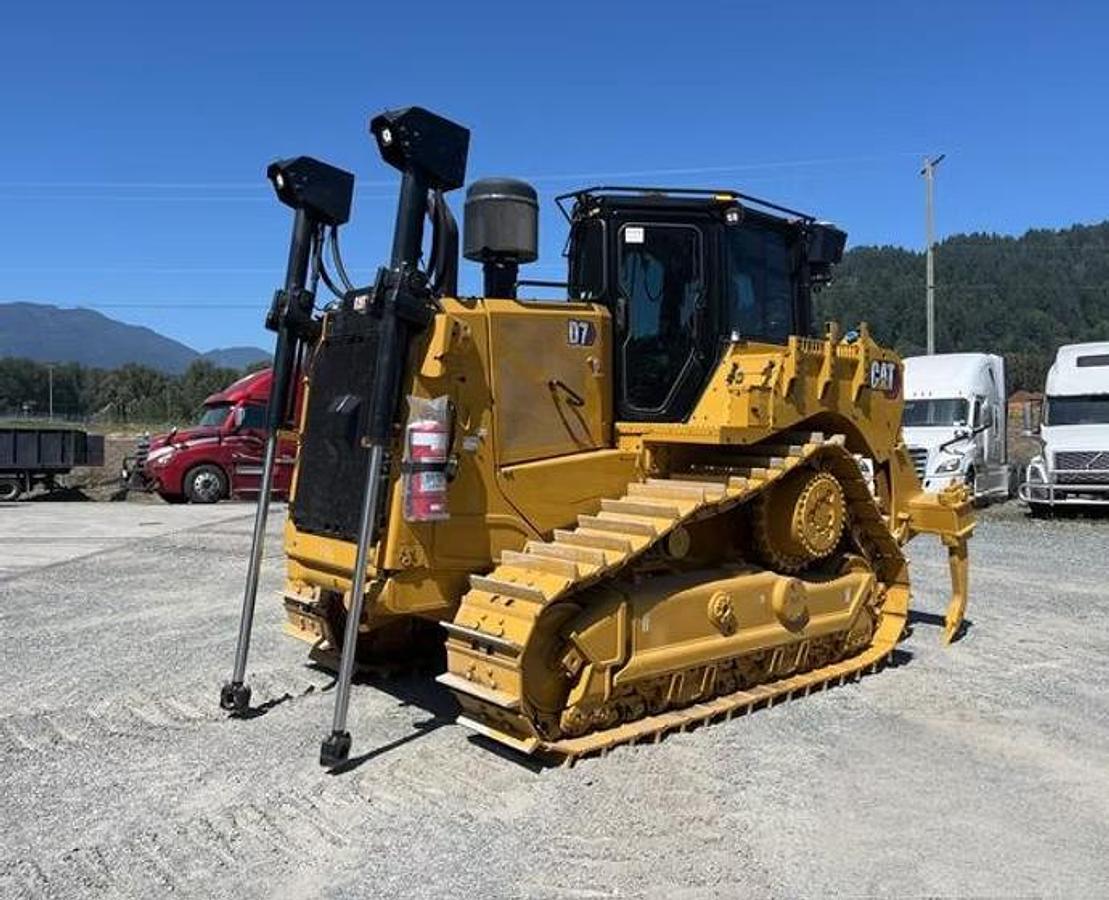

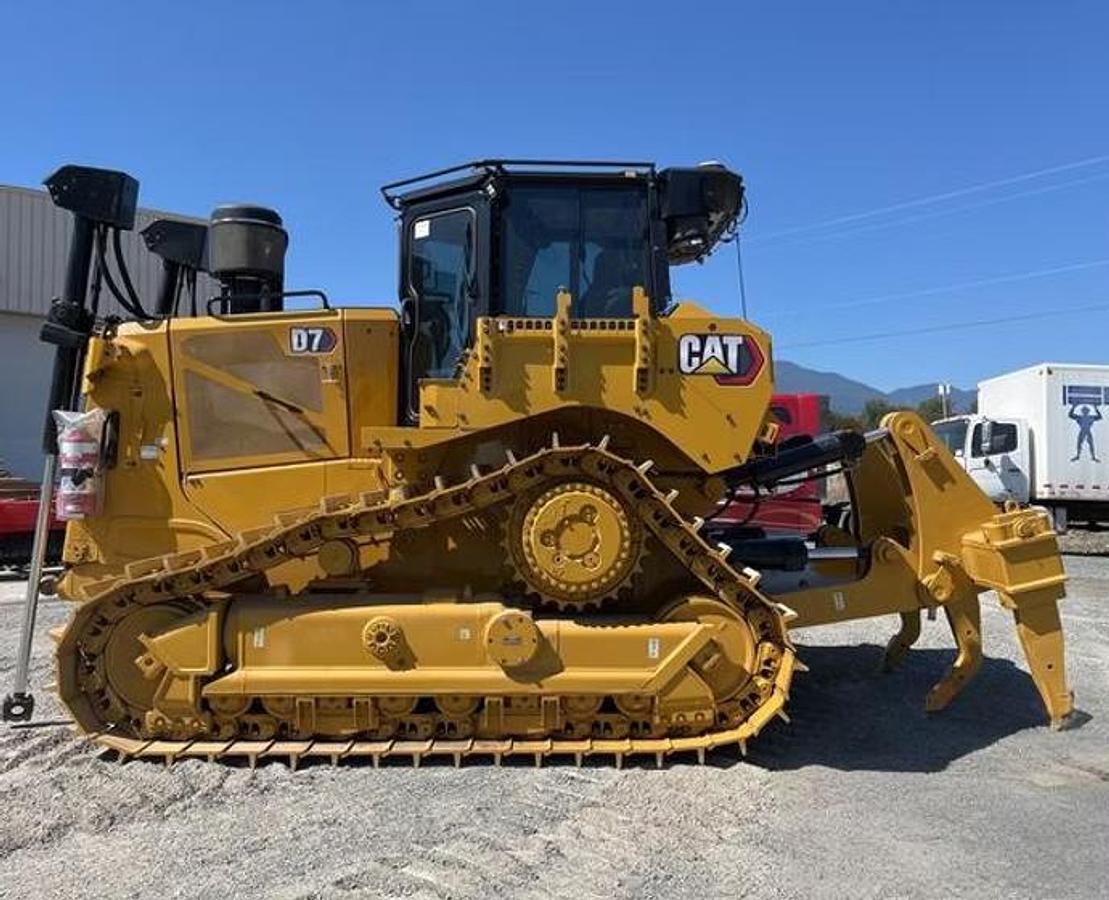

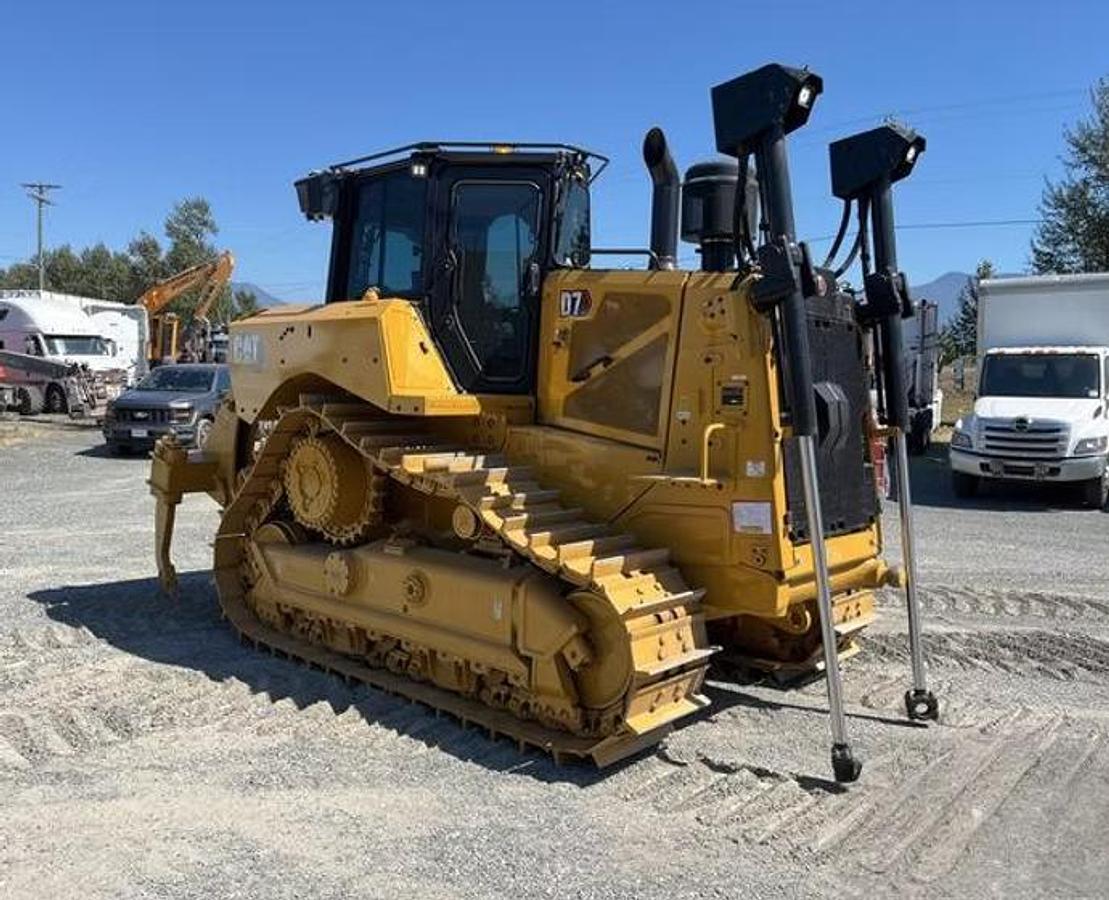

Caterpillar D7 NEW 2023 NEVER UNPACKED YET

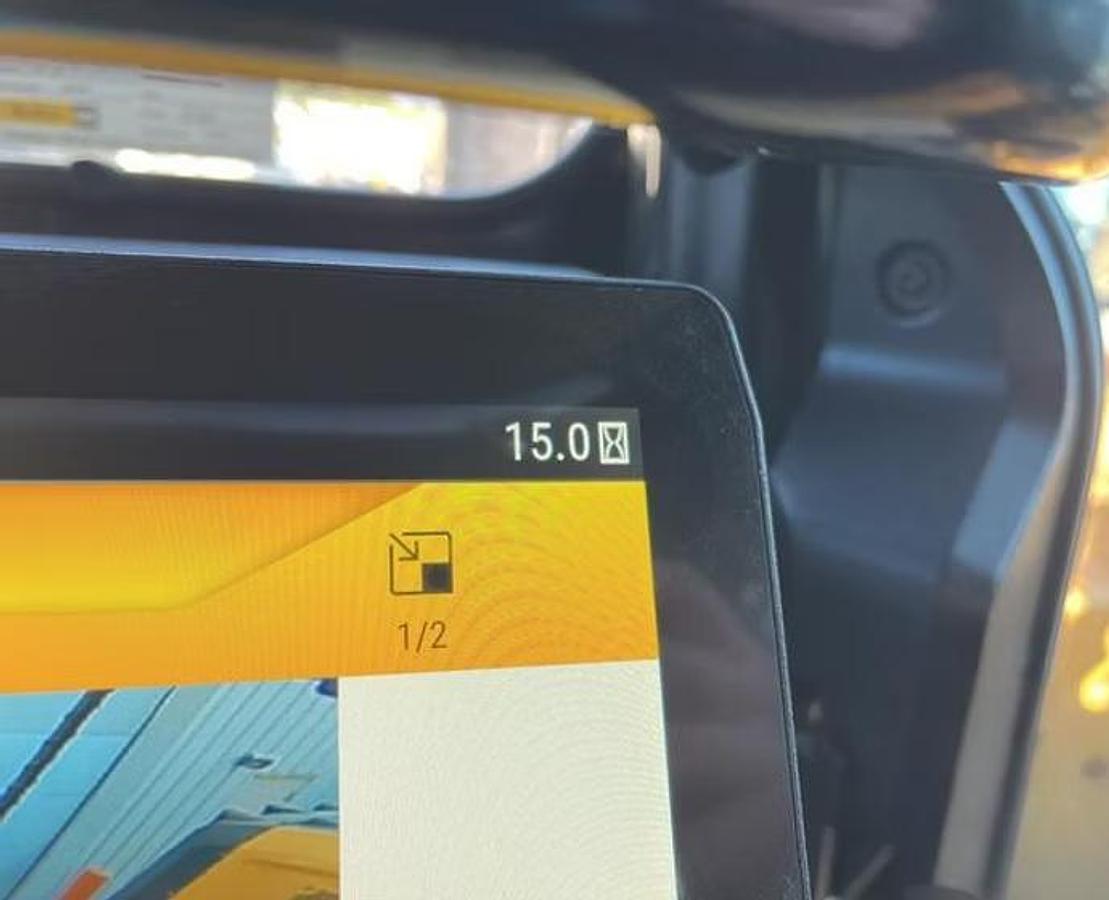

THIS BRAND NEW CAT D 7 NOT YET ASSEMBLED FROM THE FACTORY 15. HOUR MACHINE FOR SALE WITH FULL WARRANTY.
 The new Cat® D7 joins the growing family of Next Generation Dozers, delivering more productivity and high drive undercarriage
value. A fully automatic 4-speed transmission makes effi cient operation easy. The broadest range of technology features in the
industry work together seamlessly to help you make the most of your equipment investment.

Fully Automatic, Next Generation Performance
 • Harness 6% more weight and 12% more horsepower than D7E
to take on a wide range of dozing and grading tasks.
 • Move up to 8% more material per hour.
 • Like D6 and D8, fully automatic 4-speed powershift transmission
continuously adjusts for maximum effi ciency and power to the
ground without added operator input.
 • SU and S blades are 10% larger to help you get jobs done in
fewer passes.

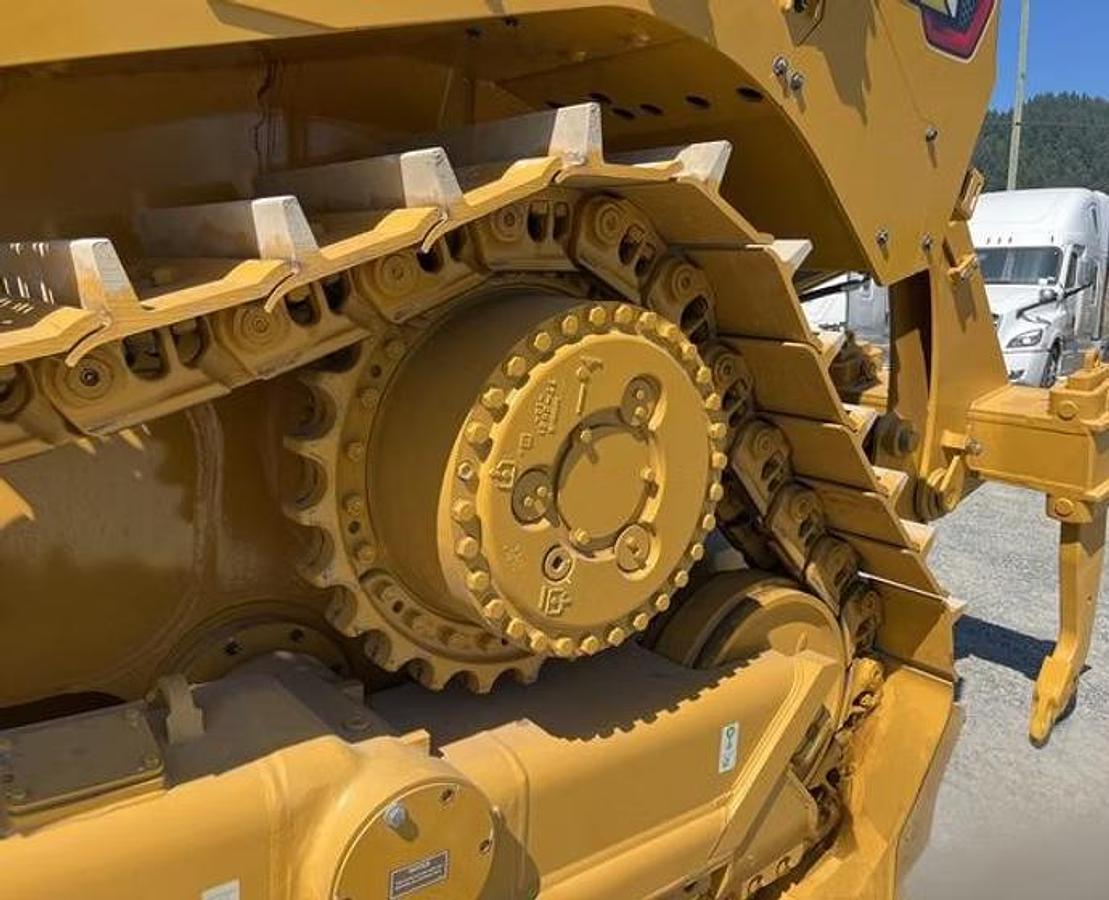

 • Elevated sprocket gives you better ride and balance, plus more
penetration force.

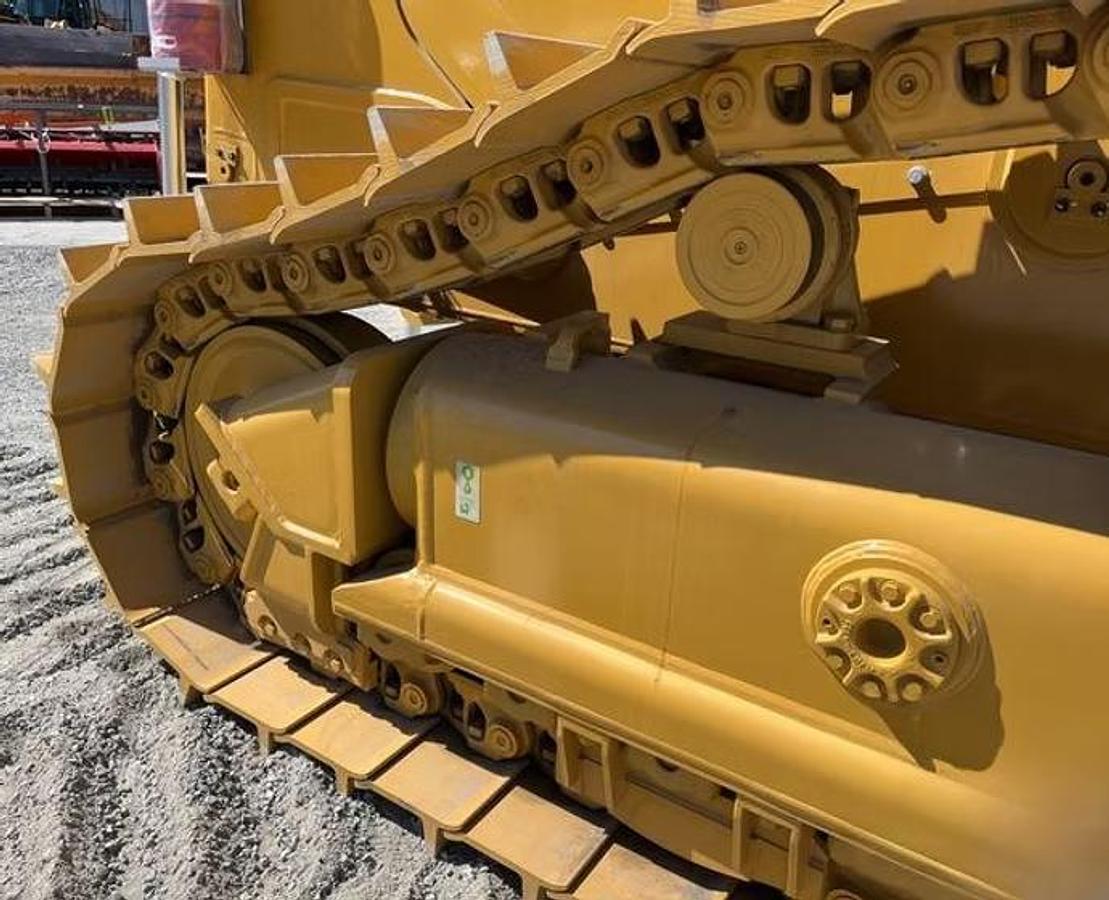

 • Long undercarriage is standard, with more track at the rear of the
machine for superior dozing performance.
 • Outfit your dozer from the factory to take on the challenges of
waste handling, land clearing, dredging and more.
 Unprecedented Technology Choices
 • Cat® GRADE with Slope Assist™ automatically maintains
pre-established blade position without a GPS signal – no additional
hardware or software needed.
 • Factory integrated Cat GRADE with 3D uses GPS to control the
blade so you can get to design plan faster.

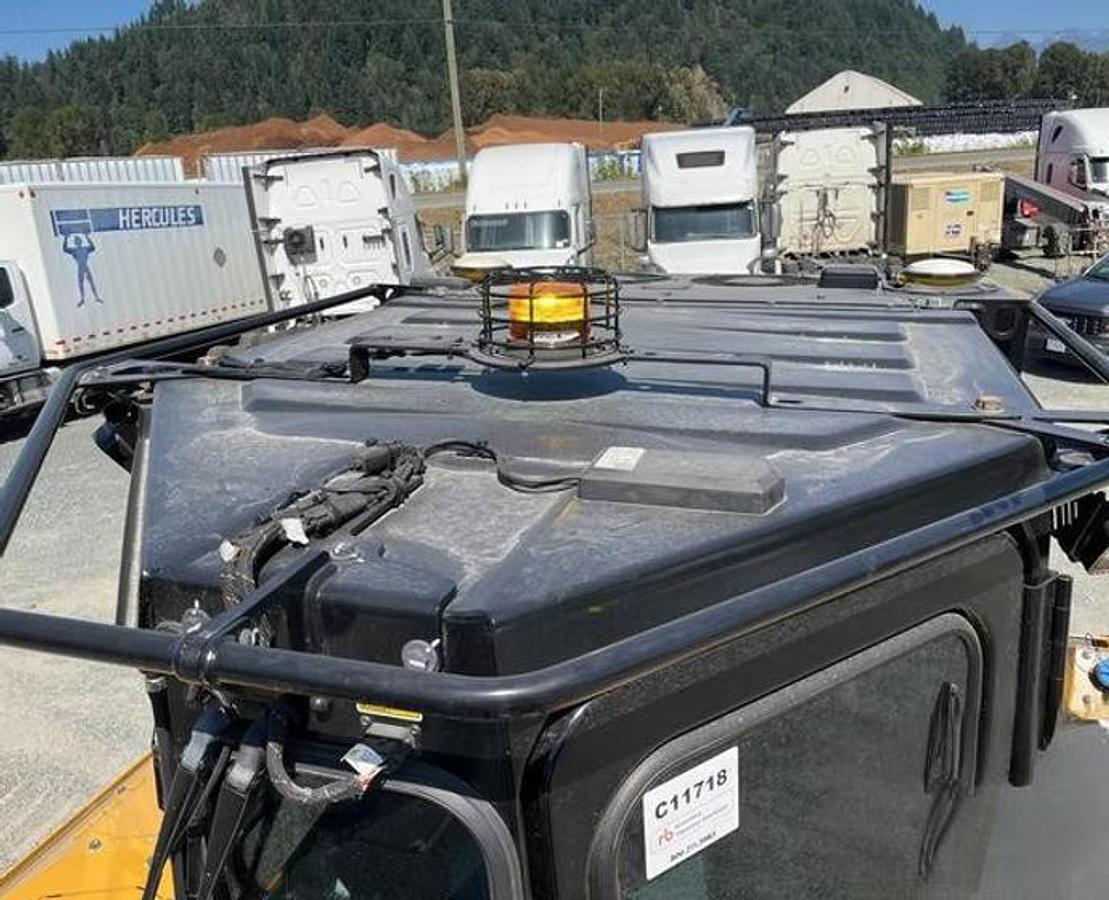

 • Cat GRADE with 3D has no masts – small antennas are integrated
into the cab roof and GPS receivers are mounted inside the cab for
better protection.

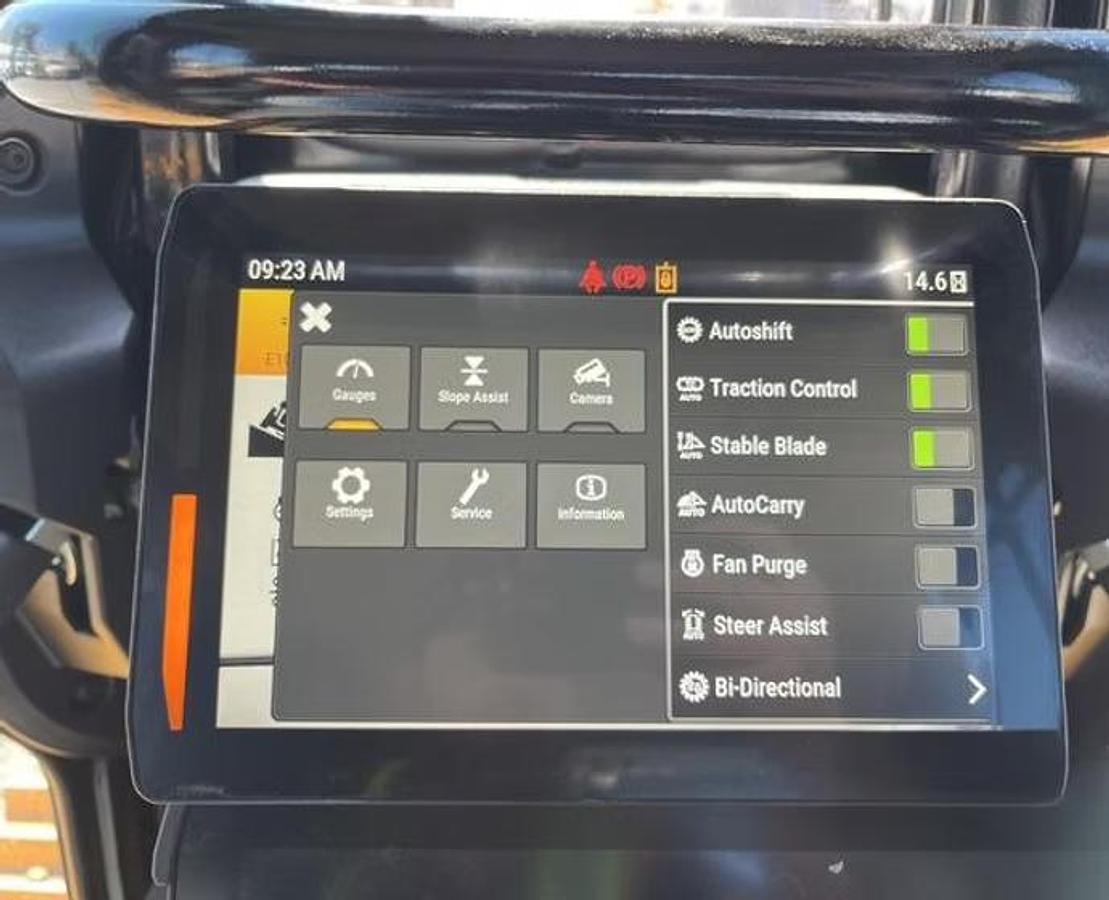

 • GRADE operator interface is intuitive and easier to use: 254 mm (10 in)
touchscreen, Android OS platform, operates like a smart phone.
 • Slope Indicate shows machine cross-slope and fore/aft orientation
right on the main display to help operators with slope work.
 • Attachment Ready Option (ARO) comes from the factory with key
sensors and wiring installed so you can easily upgrade to fully
integrated grade control or blade mounted system.
 • Install the aftermarket grade control system of your choice easily
with optimal mounting locations in the cab.

Boost Operator Efficiency
 • New assist features just work behind the scenes to help make
machine operation easier.
 • Make the most of every pass with Blade Load Monitor to help
you optimize blade capacity.1
 • Stable Blade works seamlessly with operator inputs to help
produce a smoother surface.
 • Traction Control automatically reduces track slip to save you time,
fuel and track wear.1
 • AutoCarry automates blade lift to help you maintain consistent
blade load and help reduce track slip.1
 Comfort and Visibility

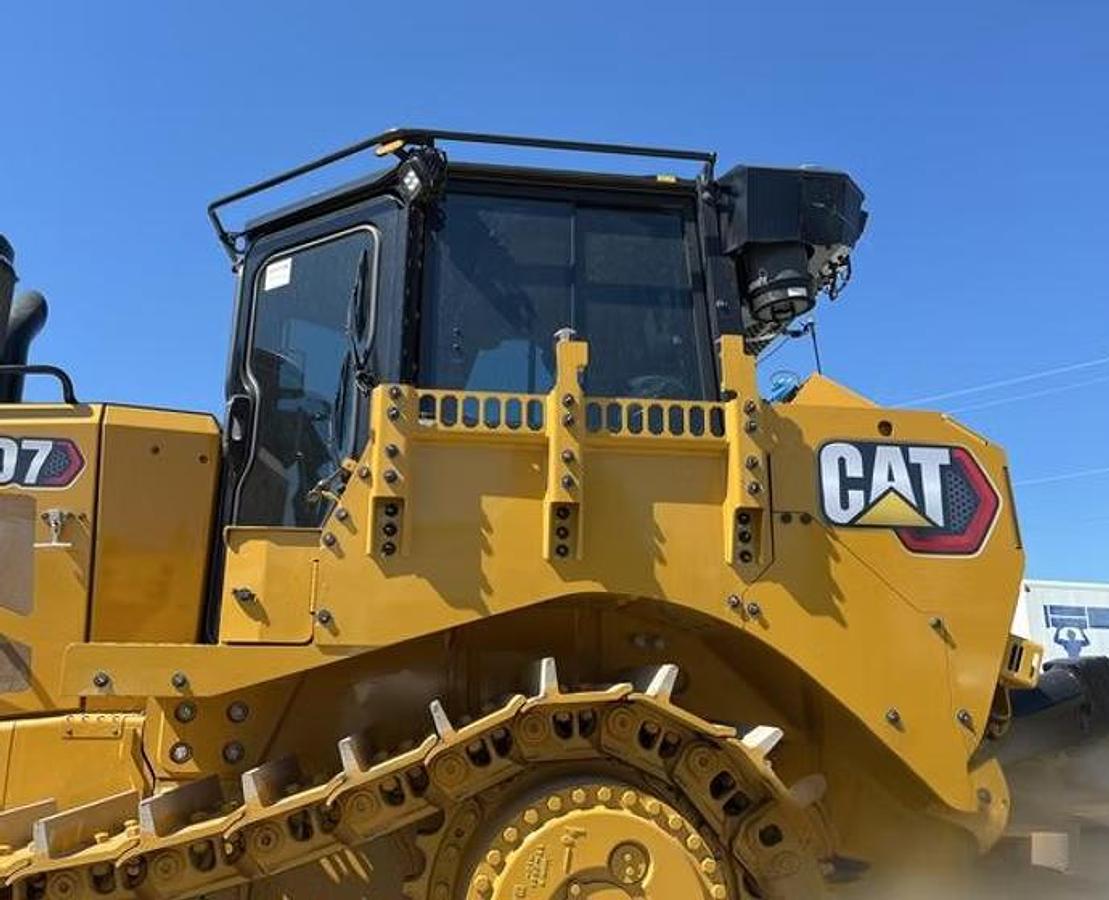

 • Common cab with D5 and D6, for a whole new standard in comfort
and productivity.
 • Easy-to-use 254 mm (10 in) touchscreen main display.
 • Standard High Defi nition rearview camera shows prominently
in the main display.
 • Key Features Help, built into the display, gives you an overview
of machine and technology features and helpful operating tips.

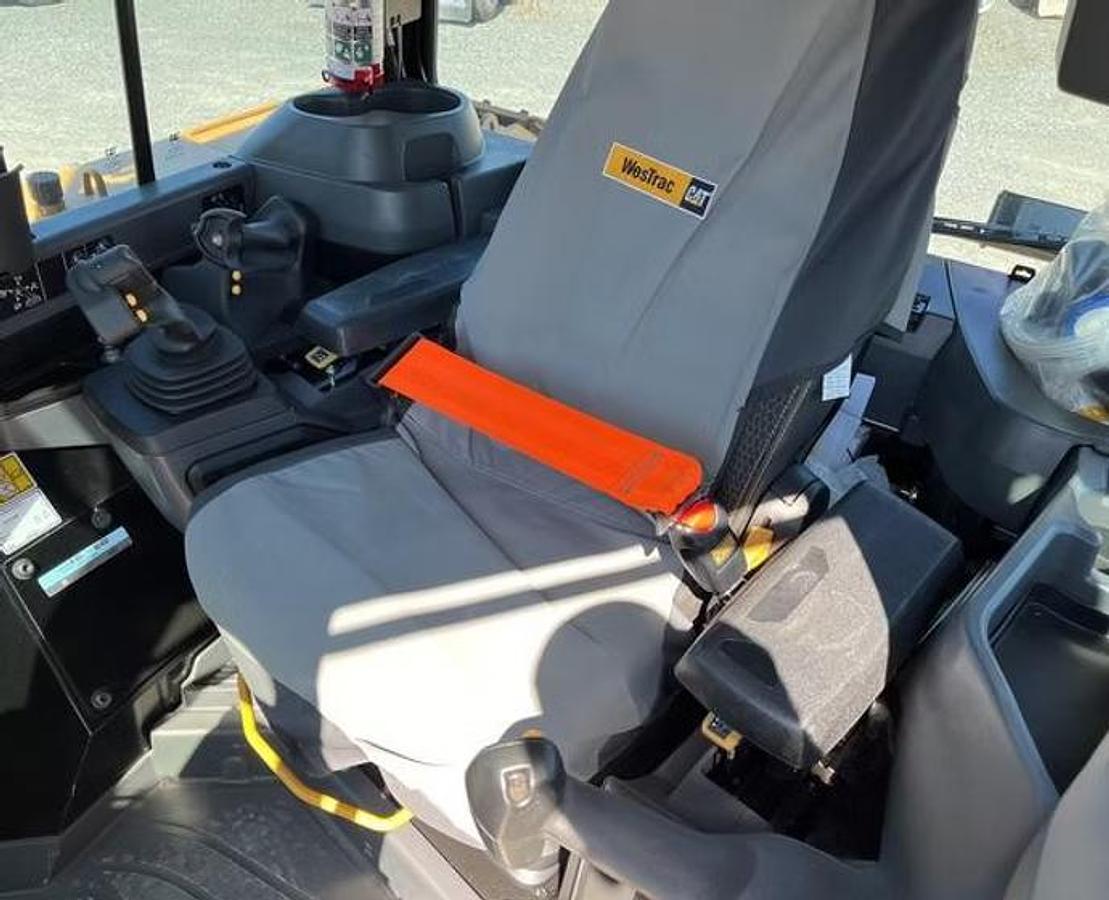

 • Wide air suspension seat has multiple adjustments for personalized
comfort. Armrest adjusts independent of the seat.
 • Distributed cab heating/cooling circulates air effectively around
the operator and helps reduce window fogging/frosting.
 • Ample storage spaces throughout the cab.
 • Convenient USB and Auxiliary power ports in cab.
Cat® D7 Track-Type Tractor

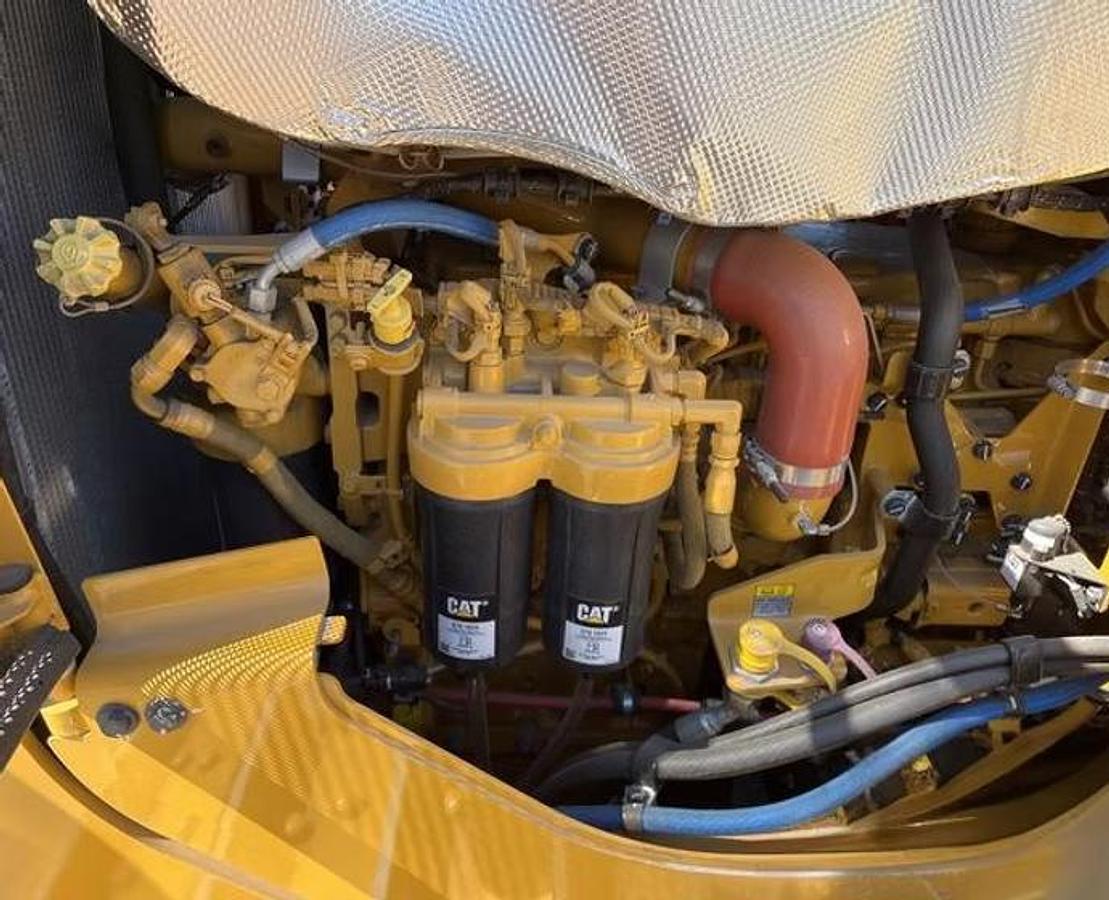

Model Cat C9.3B
 Emissions U.S. EPA Tier 4 Final/EU Stage V/ Japan 2014/Korea Tier 4 Final
 Build Number 17A Power Train Fully Automatic 4-Speed
 Net Power – 2,200 rpm
 ISO 9249/SAE J1349 197 kW 265 hp
 ISO 9249/SAE J1349 (DIN) 268 hp
 Displacement 9.3 L 567 in3
 • All non-road Tier 4 Interim and Final, Stage IIIB, IV and V, Japan 2014
(Tier 4 Final) and Korea Tier 4 Final diesel engines are required to use only
Ultra Low Sulfur Diesel (ULSD) fuels containing 15 ppm EPA/10 ppm EU
(mg/kg) sulfur or less. Biodiesel blends up to B20 (20% blend by volume)
are acceptable when blended with 15 ppm (mg/kg) sulfur or less ULSD.
B20 should meet ASTM D7467 specifi cation (biodiesel blend stock should
meet Cat biodiesel spec, ASTM D6751 or EN 14214). Cat DEO-ULS™
or oils that meet the Cat ECF-3, API CJ-4, and ACEA E9 specification
are required. Consult your OMM for further machine specific fuel
recommendations.
 • Diesel Exhaust Fluid (DEF) used in Cat Selective Catalytic Reduction
(SCR) systems must meet the requirements outlined in the International
Organization for Standardization (ISO) standard 22241.
 • The air conditioning system on this machine contains the fluorinated
greenhouse gas refrigerant R134a (Global Warming Potential = 1430).
The system contains 1.36 kg of refrigerant which has a CO2 equivalent
of 1.946 metric Tonnes.
 Service Refill Capacities
 Fuel Tank 465.0 L 122.8 gal
 DEF Tank 44.0 L 11.6 gal
 Operating Weight
 SU with Ripper 29 776 kg 65,644 lb
 LGP S with Drawbar 28 677 kg 63,220 lb
 Waste Handler 28 140 kg 62,035 lb

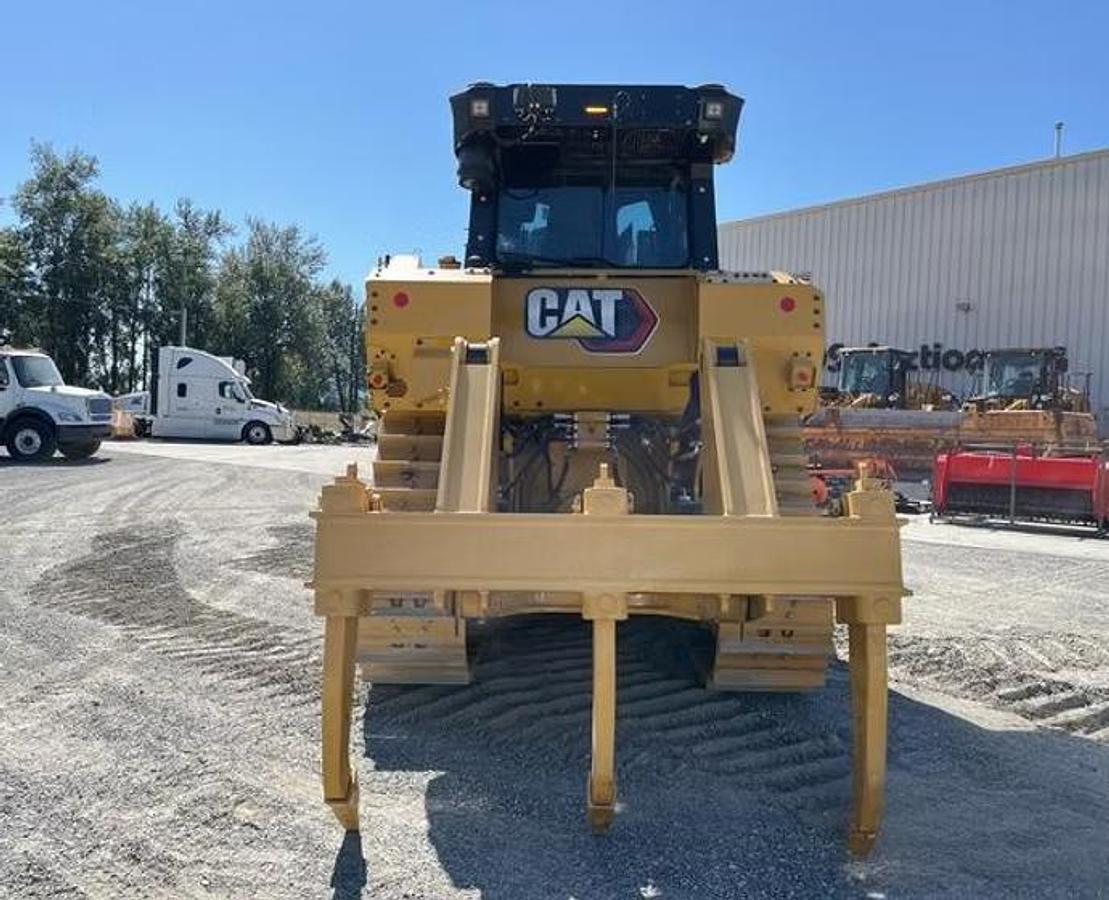

 SU ripper weight with three ripper shanks = 2993 kg/6,596 lb
 Ground Pressure**
 SU with Ripper 72.1 kPa 10.5 psi
 LGP S with Drawbar 43.4 kPa 6.3 psi
 Waste Handler 68.3 kPa 9.9 psi
 **Standard size shoes and drawbar attachment per ISO 16754.
 Blades
 Capacity Width
 Semi-Universal (SU) 7.4 m3 9.7 yd3 3500 mm 138.0 in
 LGP Straight (S) 6.2 m3 8.1 yd3 4150 mm 163.0 in
 Angle (A) 4.2 m3 5.4 yd3 4320 mm 170.0 in
 LGP Angle (A) 4.7 m3 6.2 yd3 4770 mm 188.0 in
 Universal (U) 8.6 m3 11.2 yd3 3788 mm 149.0 in
 Universal Landfill 16.6 m3 21.7 yd3 3788 mm 149.0 in
