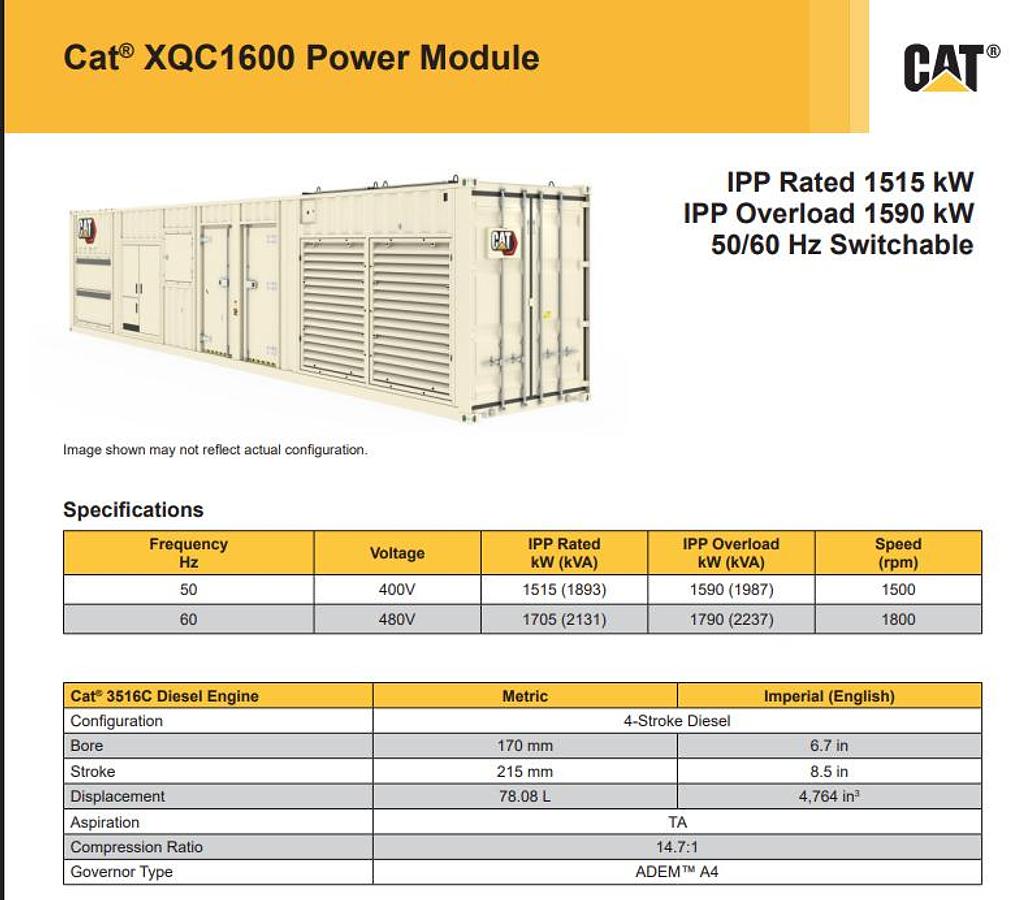

2026 Caterpillar XQC1600IPP Rated 1515 kW IPP Overload 1590 kW 50/60 Hz Switchable

IPP Rated 1515 kW

IPP Overload 1590 kW

50/60 Hz SwitchableFEATURES

SINGLE SOURCE SUPPLIER

• Generator set manufactured in ISO 9001:2000

compliant facility

• Package factory designed and production tested

• Generator set and components meet or exceed the

following specifications: AS1359, AS2789, BS4999,

DIN6271, DIN6280, EGSA101P, JEM1359, IEC 34/1,

ISO3046/1, ISO8528, NEMA MG1-22

WORLDWIDE PRODUCT SUPPORT

• Cat® dealers provide extensive post sale support

including maintenance and repair agreements

• Supported 100% by your Cat dealer with warranty on

parts and labor

RELIABLE, FUEL EFFICIENT DIESEL ENGINE

• The compact, four-cycle Cat 3516C-HD

turbocharged-aftercooled (SCAC) diesel engine

provides durability and dependability

• Best-in-class fuel economy

• Fuel system operates on a variety of fuels

• 50/60 Hz switchable with no software re-flashing

nor iron changes required

• Electric fuel priming, individual cylinder temperature

monitoring, and extended filter change intervals

CAT SR5 SERIES GENERATOR

• 1844-frame generator designed to match the

performance and output of Cat diesel engines

• Double bearing, wye-connected, brushless,

permanent magnet excited, form wound design

• Coastal insulation protection and anti-condensation

space heaters

• Generator inlet air filters

• Stator winding and bearing temperature monitoring

REDUCED ENVIRONMENTAL IMPACT

• 110% spill containment of onboard engine fluids

• Positive crankcase fumes ventilation

• Low BSFC and Low Emissions* ratings, switchable

via Cat Electronic Technician (ET)

* Does not conform to EPA/EU emissions standards

SOUND-ATTENUATED ENCLOSURE

• Provides 9-high stackable, CSC enclosure for ease

of transportation and protection

• Double personnel doors on both sides of the engine

for service access, plus 1 additional personnel door

for general access

• Double container doors on each end

• Externally-accessible controls behind hinged door

• Service access doors for engine air filters

• Foldable, stowable awnings on engine

compartment air inlets

• Hinged, sound-attenuated radiator louvers for ease

of cleaning and maintenance

• Externally-accessible,100kA IC, 3-pole breaker

(Optional 4-pole breaker)

CAT COOLING SYSTEM

• Vertical, non-stacked radiator cores with dimpled

fins to minimize clogging

• Provides 49C (120F) ambient compatibility at 750m

(2,460 ft) above sea level

• Energy efficient fans (4) and VFD fan drive

ON-PACKAGE PARALLELING CONTROLS

• Auto paralleling using package mounted controls

• EMCP 4.3 offers engine and generator monitoring

and protection

• AGC-4 provides paralleling, load sharing, VFD

control, and primary generator protection

OTHER FEATURES

• 946-L (250gal) fuel tank with solenoid fill valve

• 113-L (30gal) engine lube oil make-up system

• Oil evacuation system for faster, cleaner oil changes

• 1.8-m (6ft) stainless steel exhaust stack;

stows inside container for transport

• Triple, primary fuel filters with water separators,

service valves, and differential pressure monitoring
