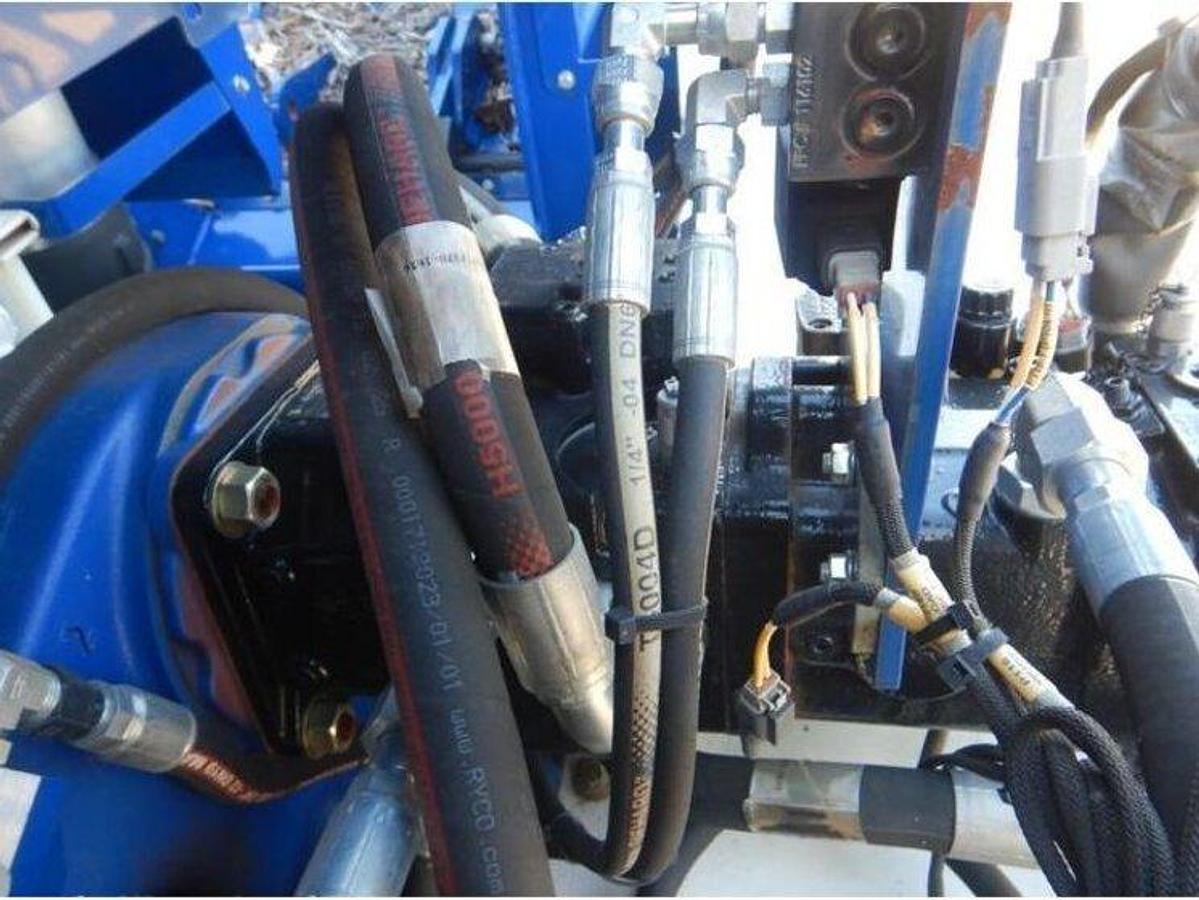

2018 Peterson 5710D Horizontal Grinder - Low Hours, High Capacity

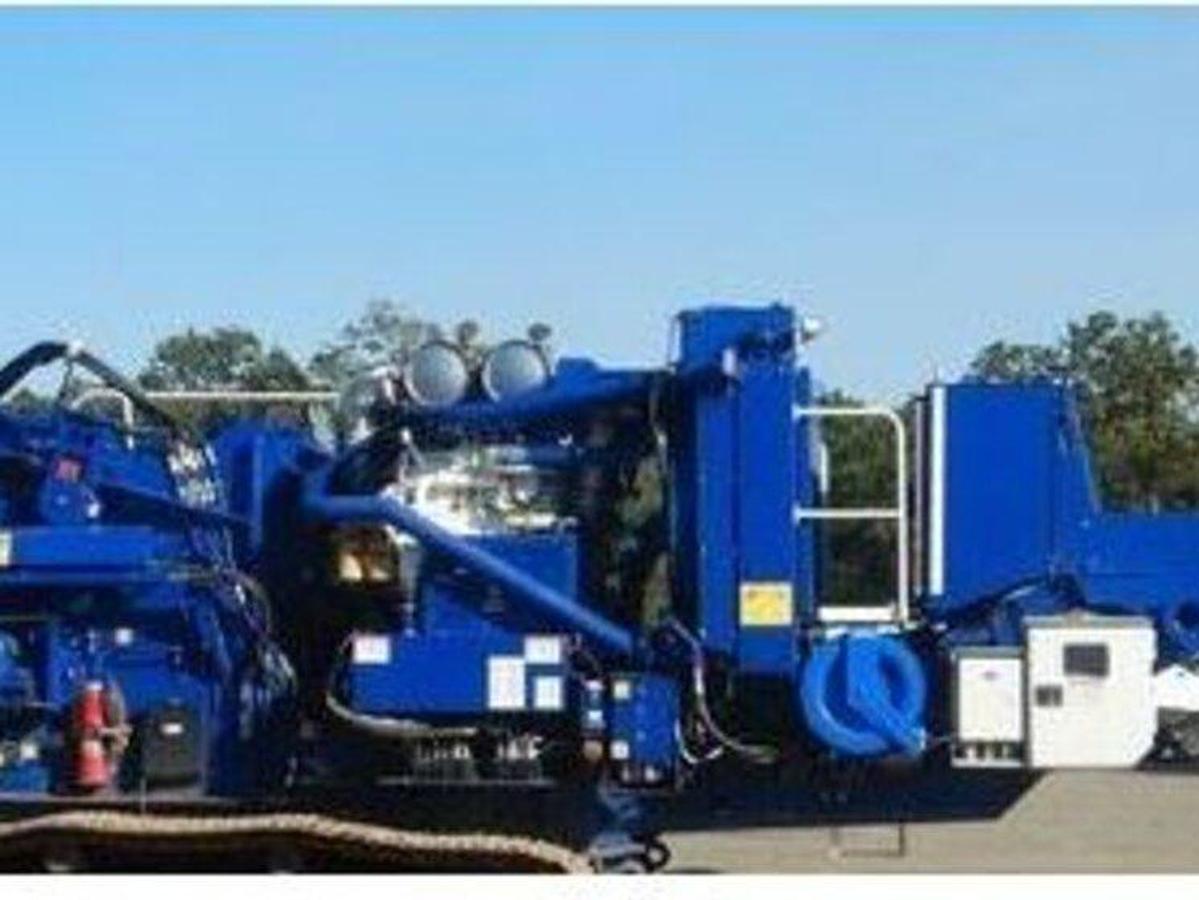

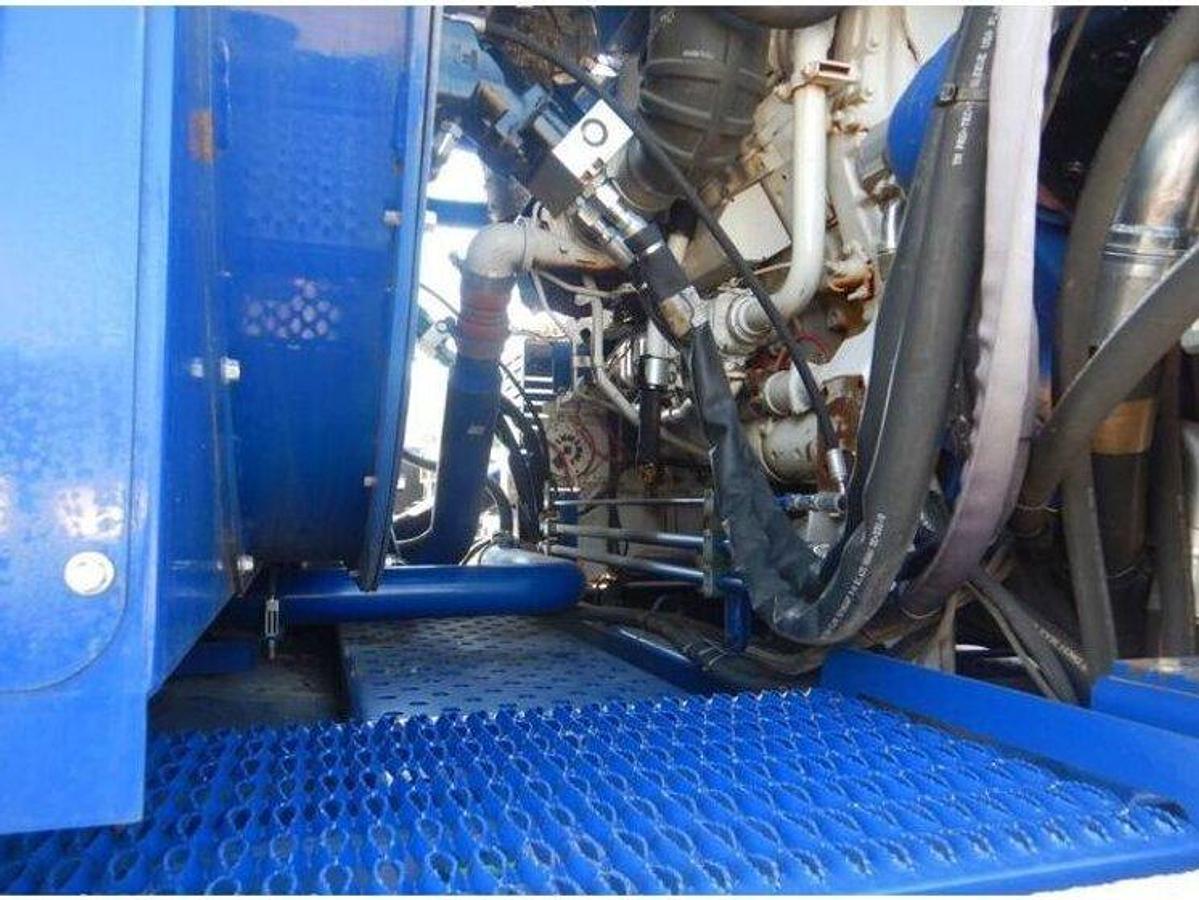

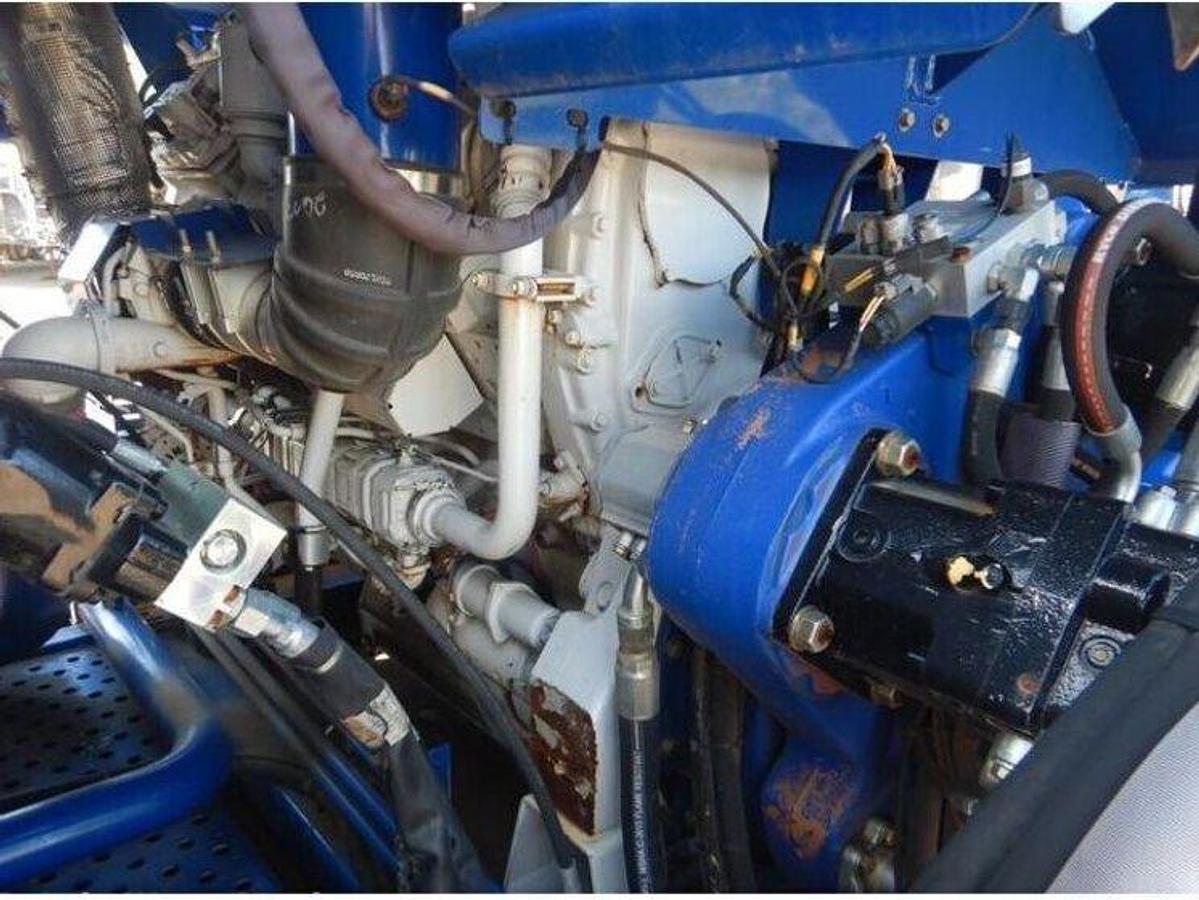

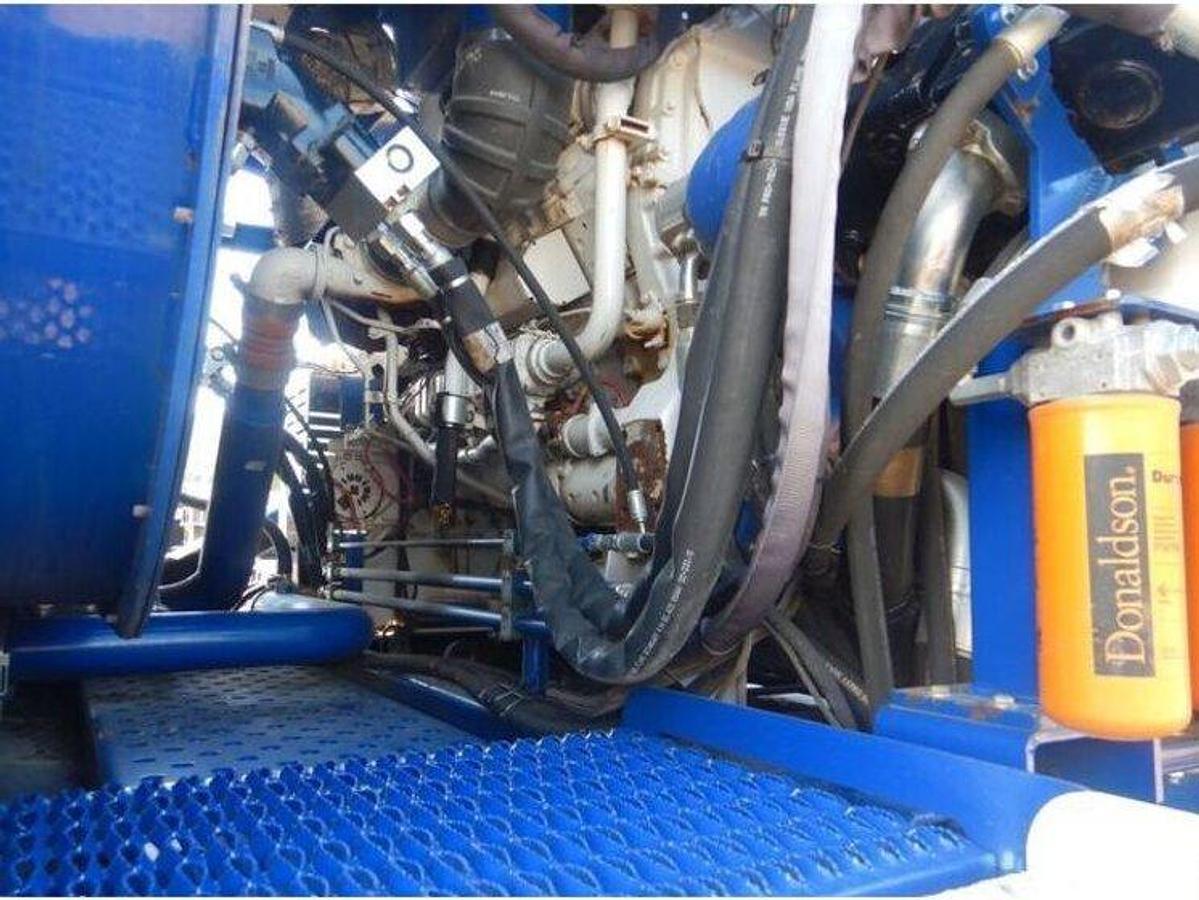

This 2018 Peterson 5710D is a powerful horizontal grinder with just 587 hours, built for high production and efficiency. Equipped with a Caterpillar C27, 27.0L, 12-cylinder diesel engine, this unit is designed for demanding land clearing, recycling, and mulch operations.

CategoryWood Grinder

Year2018

MakePeterson

Model5710D

Hours587

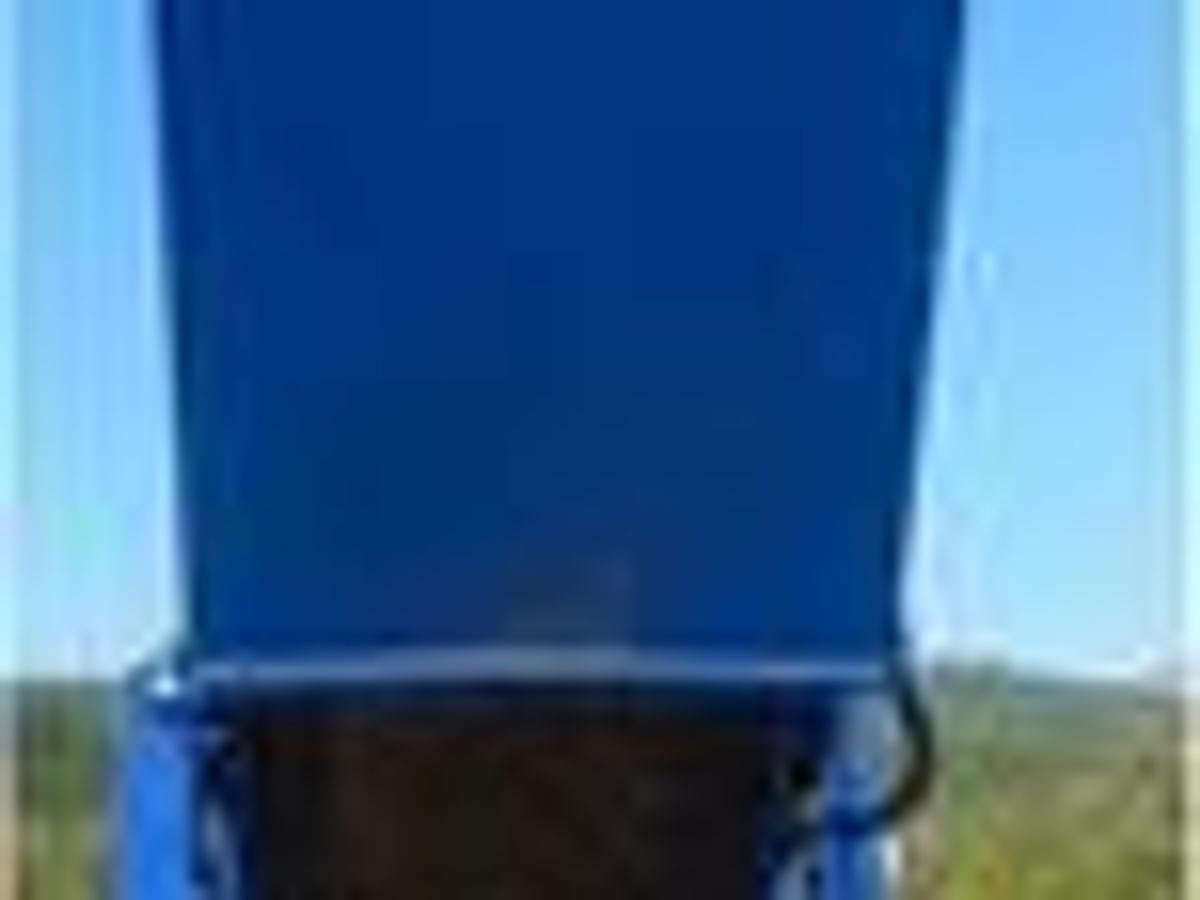

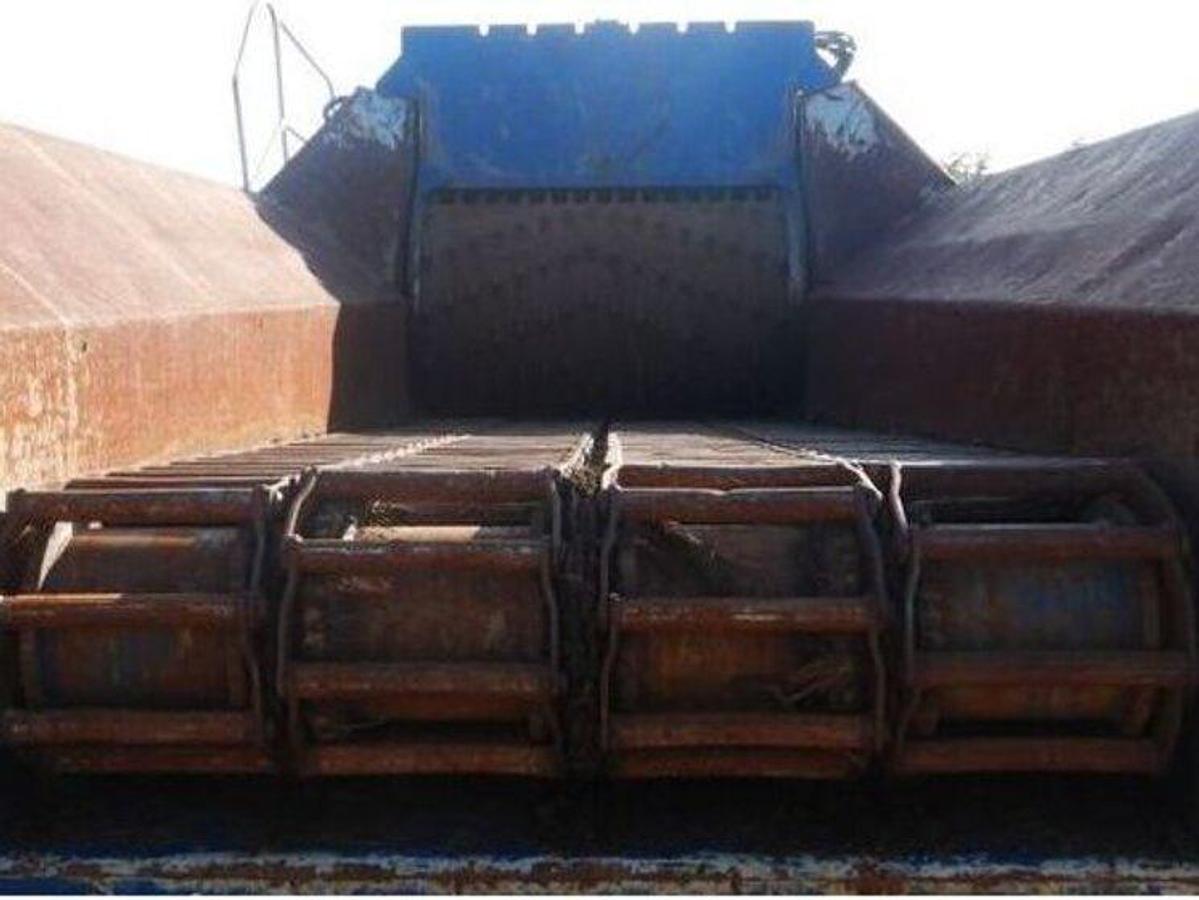

✓ Massive 14'7"L x 5'W x 7'6"H hopper for large feed capacity

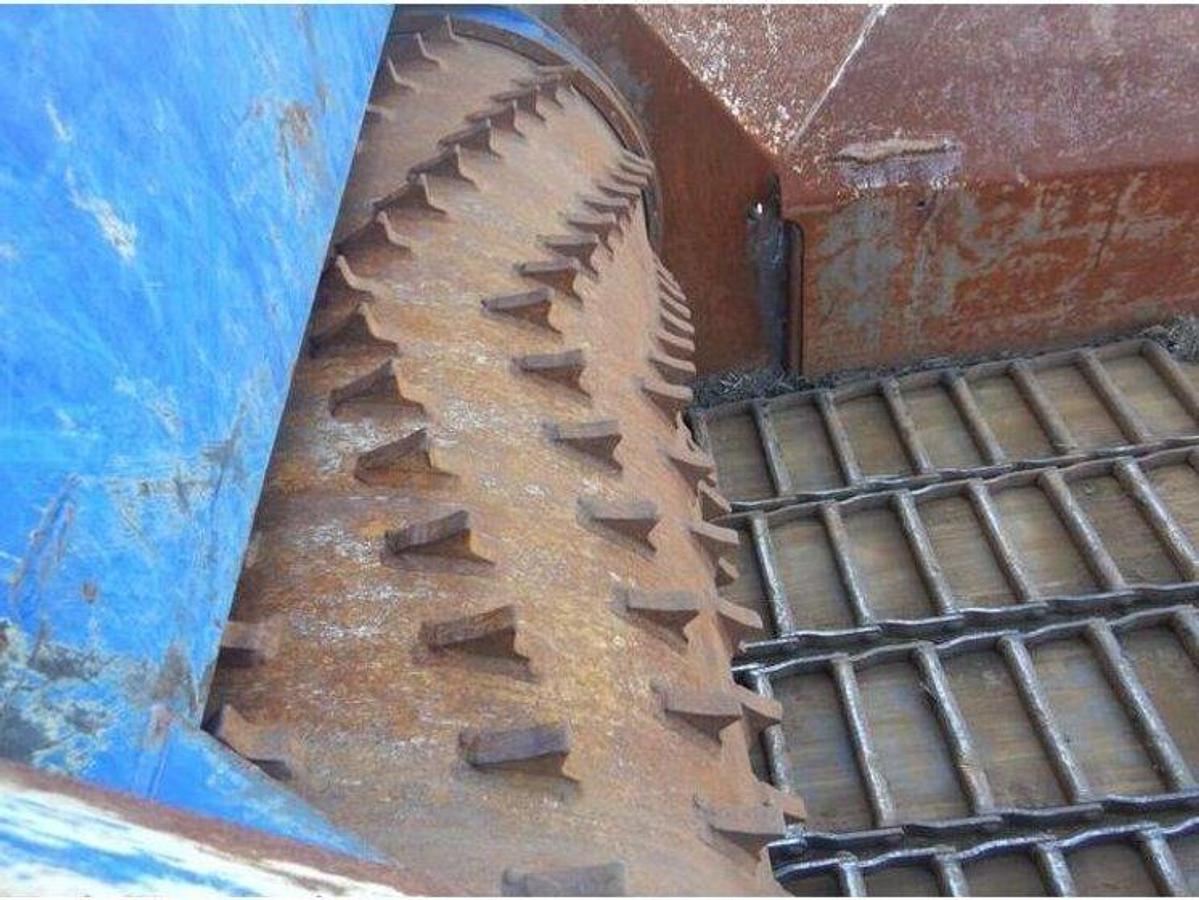

✓ Heavy-duty rotor - 7 3/8" x 40" diameter with (4) grates

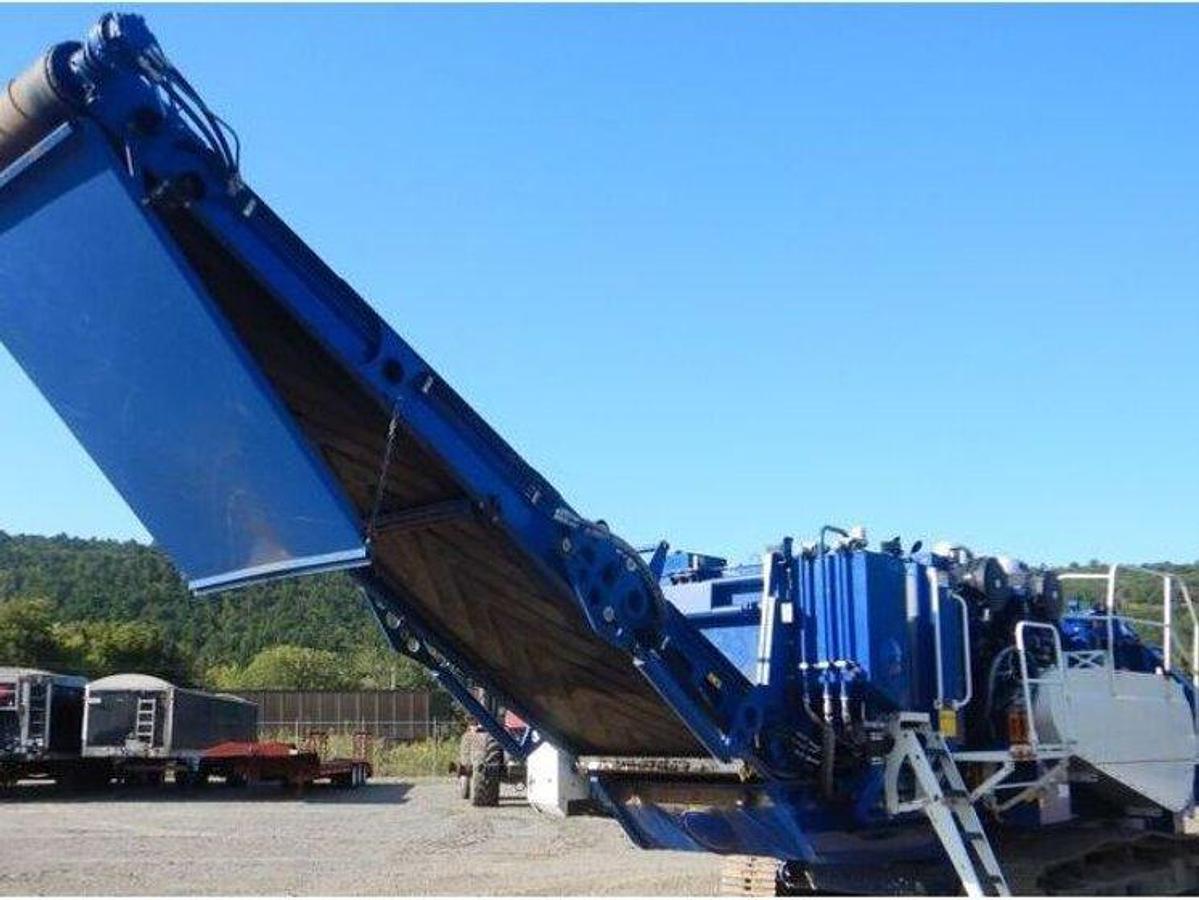

✓ 60" wide discharge conveyor for efficient material handling

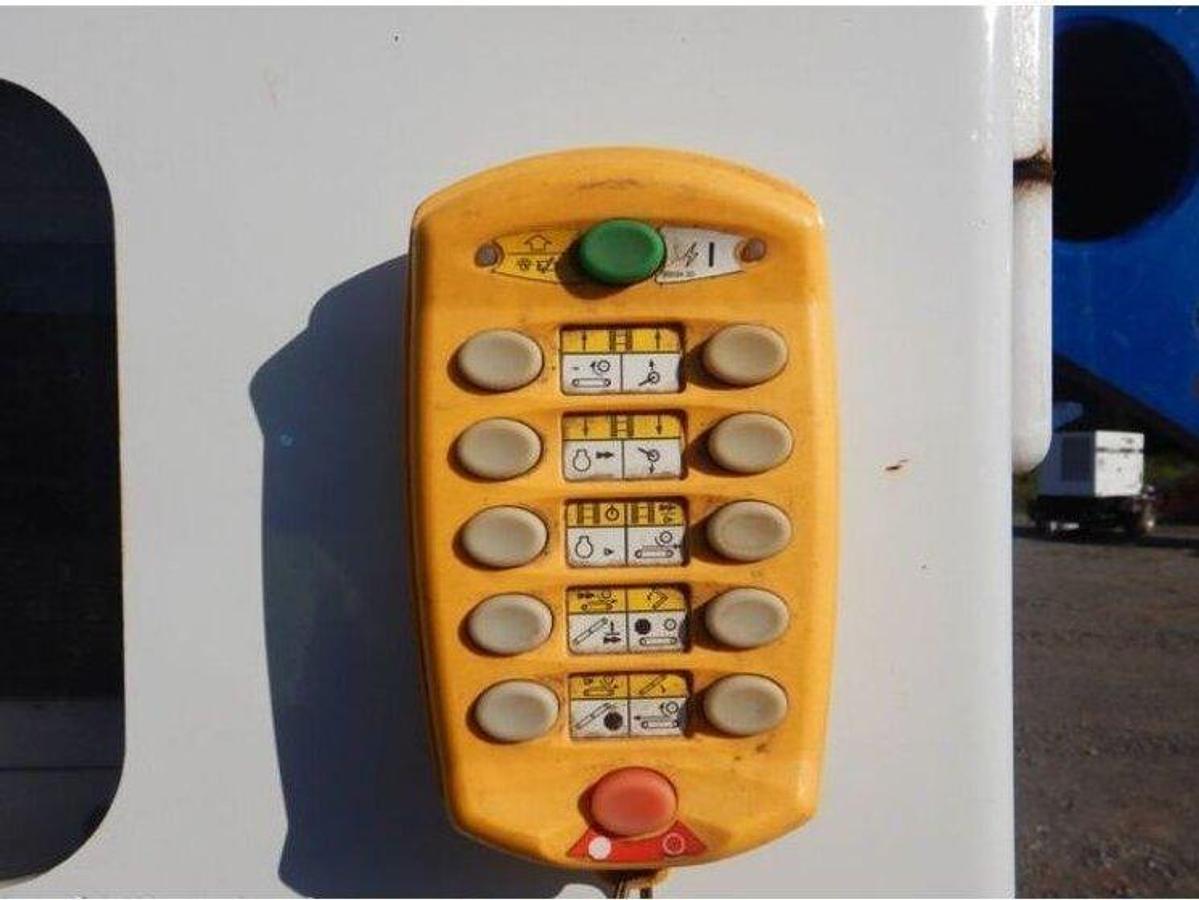

✓ Remote control for safe and easy operation

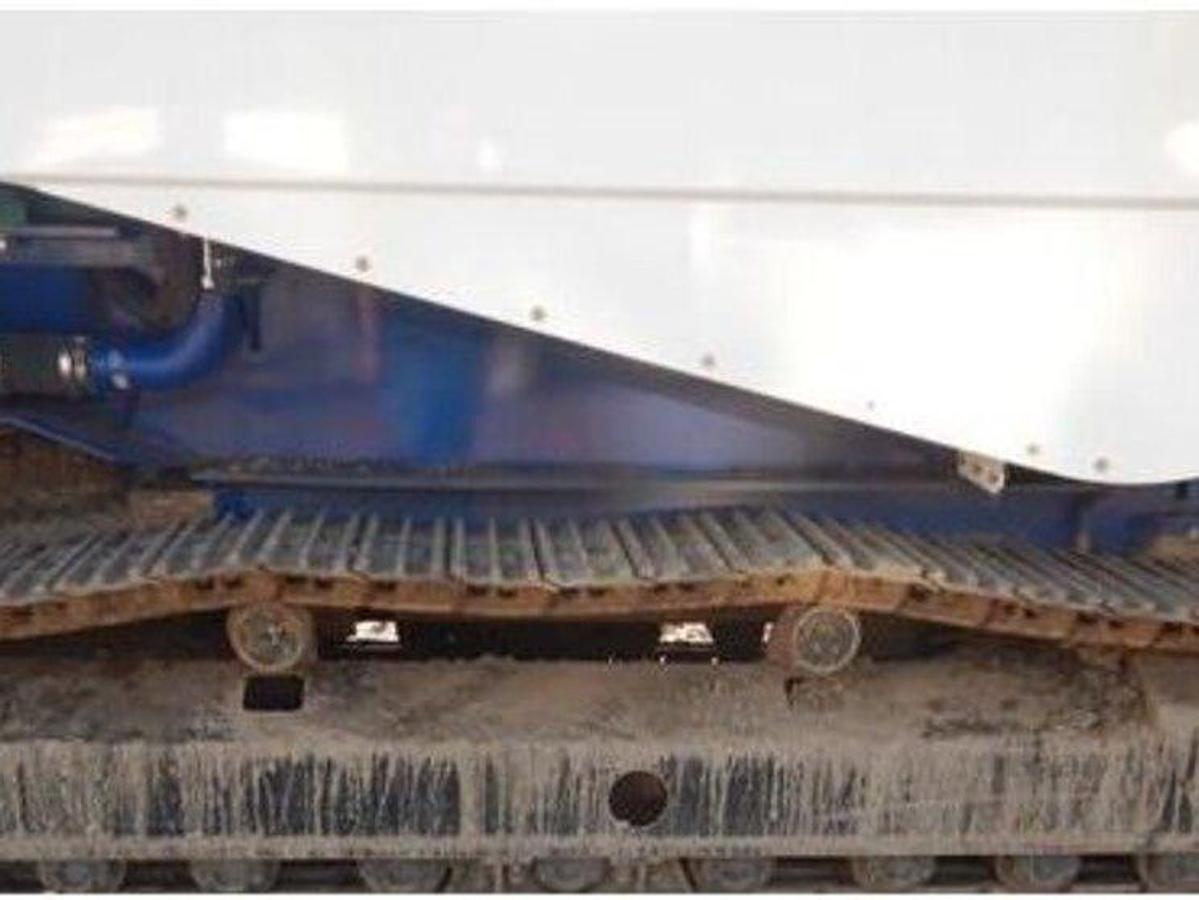

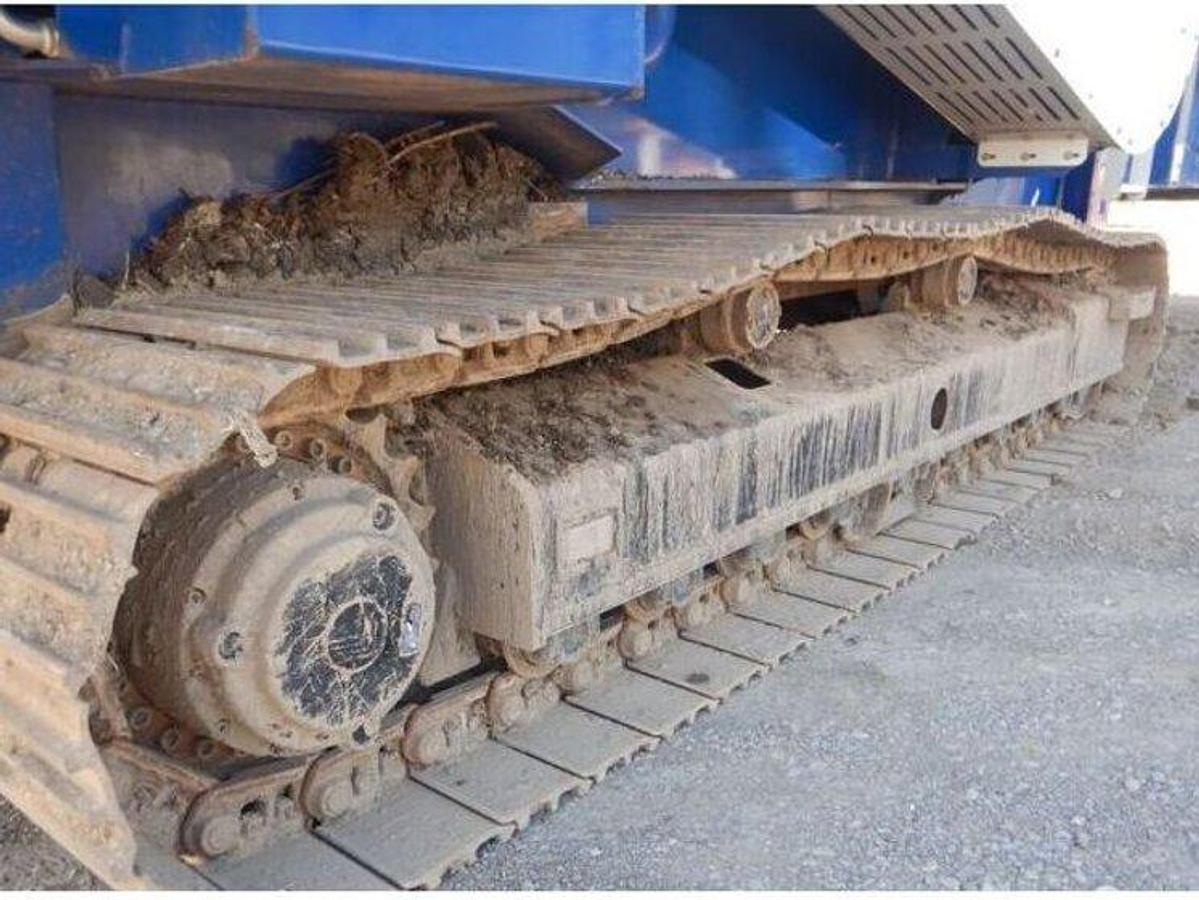

✓ Triple grouser 24" steel track pads for excellent mobility on rough terrain

✓ Dimensions: 57'10"L x 11'5"W x 16'10"H

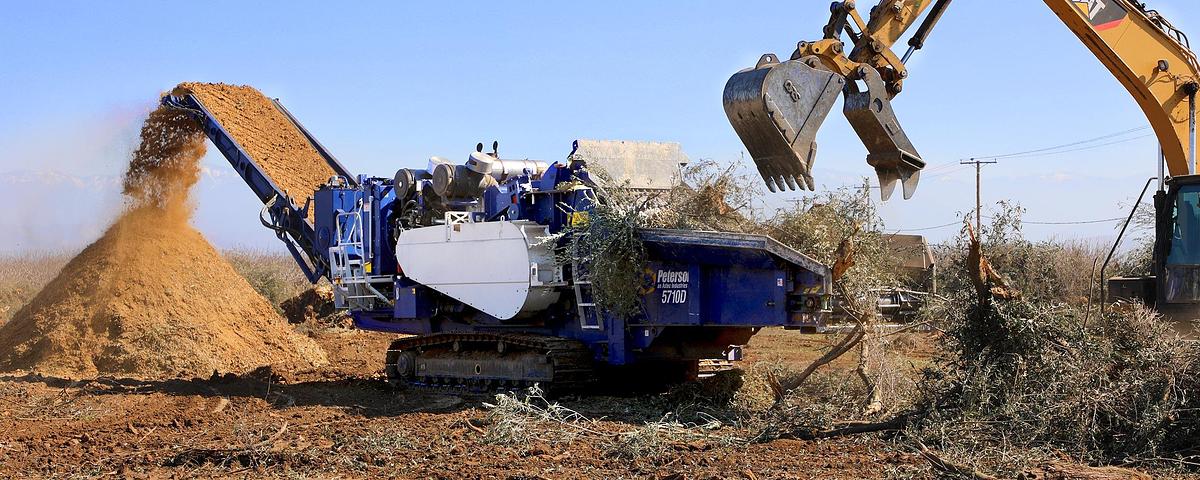

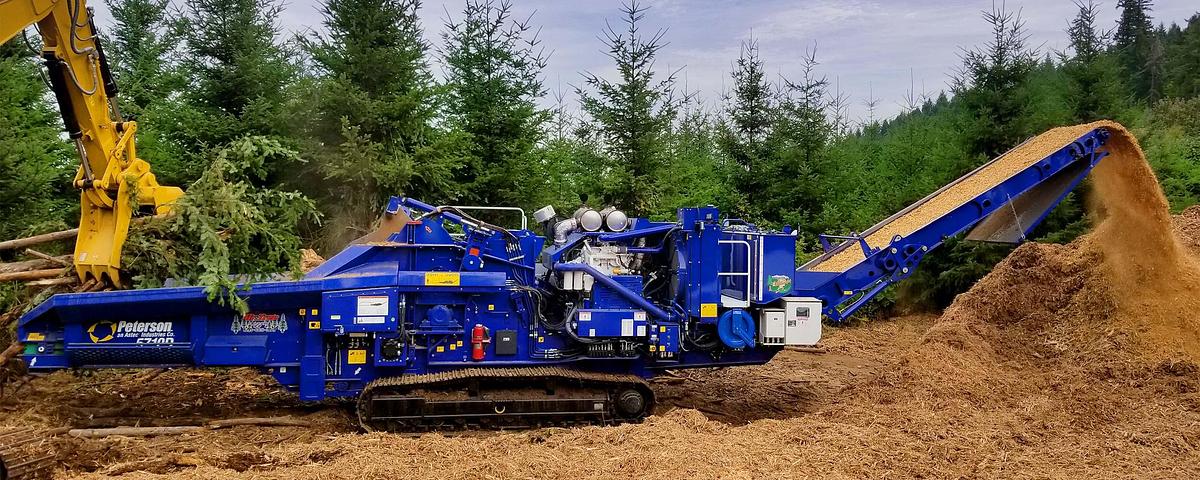

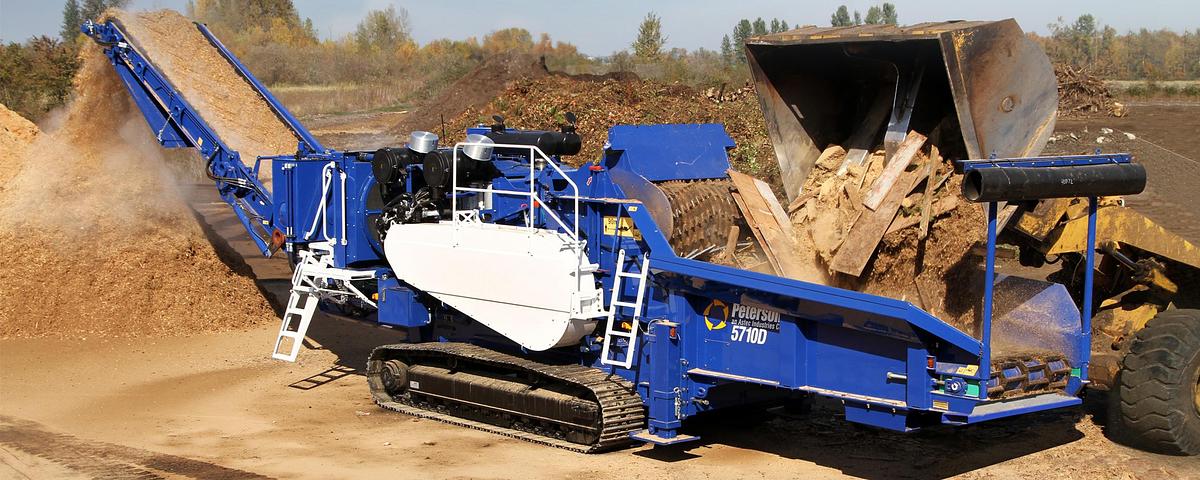

The 5710D Horizontal Grinder is a tracked horizontal grinder designed for high-volume producers with very demanding end-product specifications. Powered by a Tier II or Tier IV Caterpillar C27 1050HP (772 kW) engine, the 5710D provides the highest power to weight ratio of any Peterson grinder. At 88,500 pounds (40,150 kg)*, the 5710D is designed for operations requiring high production and frequent moves between jobs. With a feed opening of 60 x 40 inches (152 x 102 cm) combined with Peterson’s high lift feed roll, 5710D Horizontal Grinder can readily reduce a wide range of material including stumps.

Peterson’s three-stage grinding process with an up turning rotor and large grate area enables the 5710D to produce materials to exact specifications.

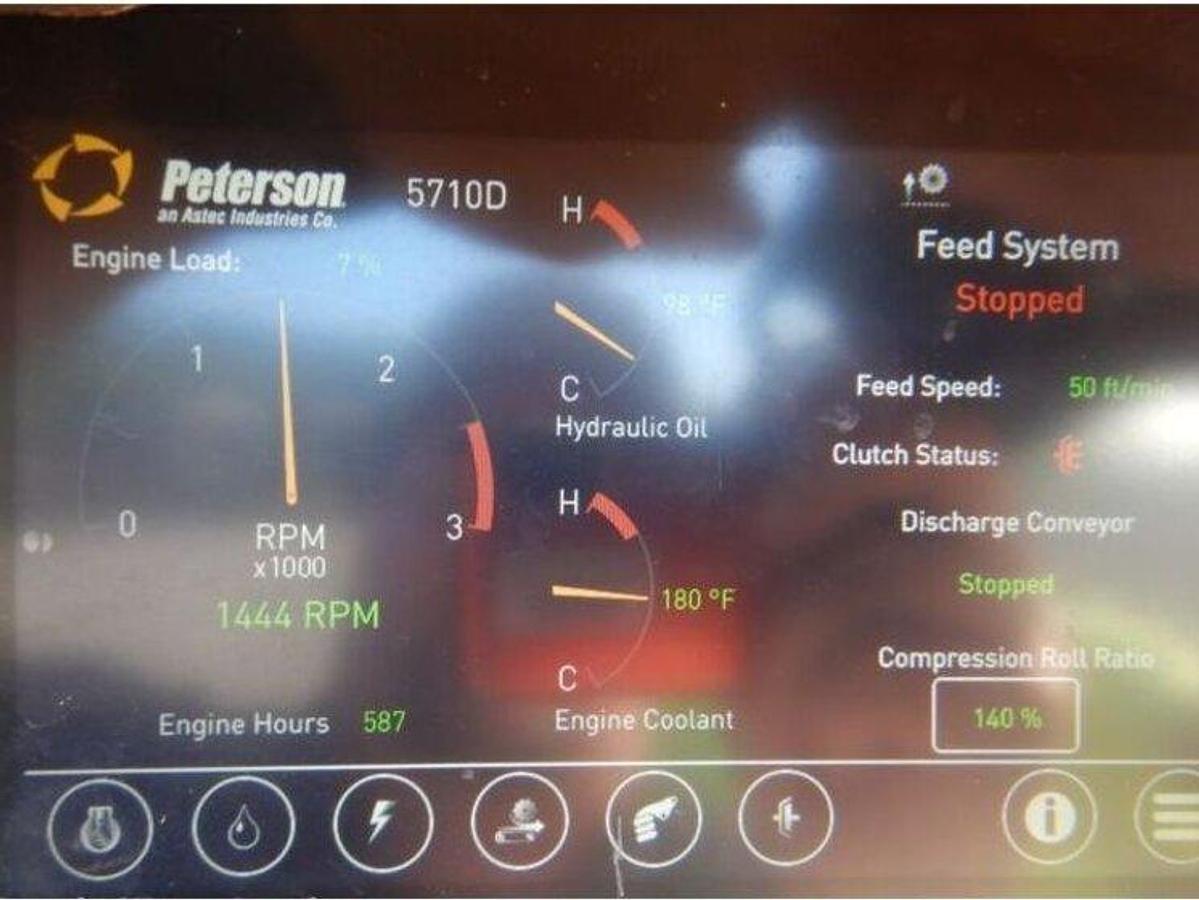

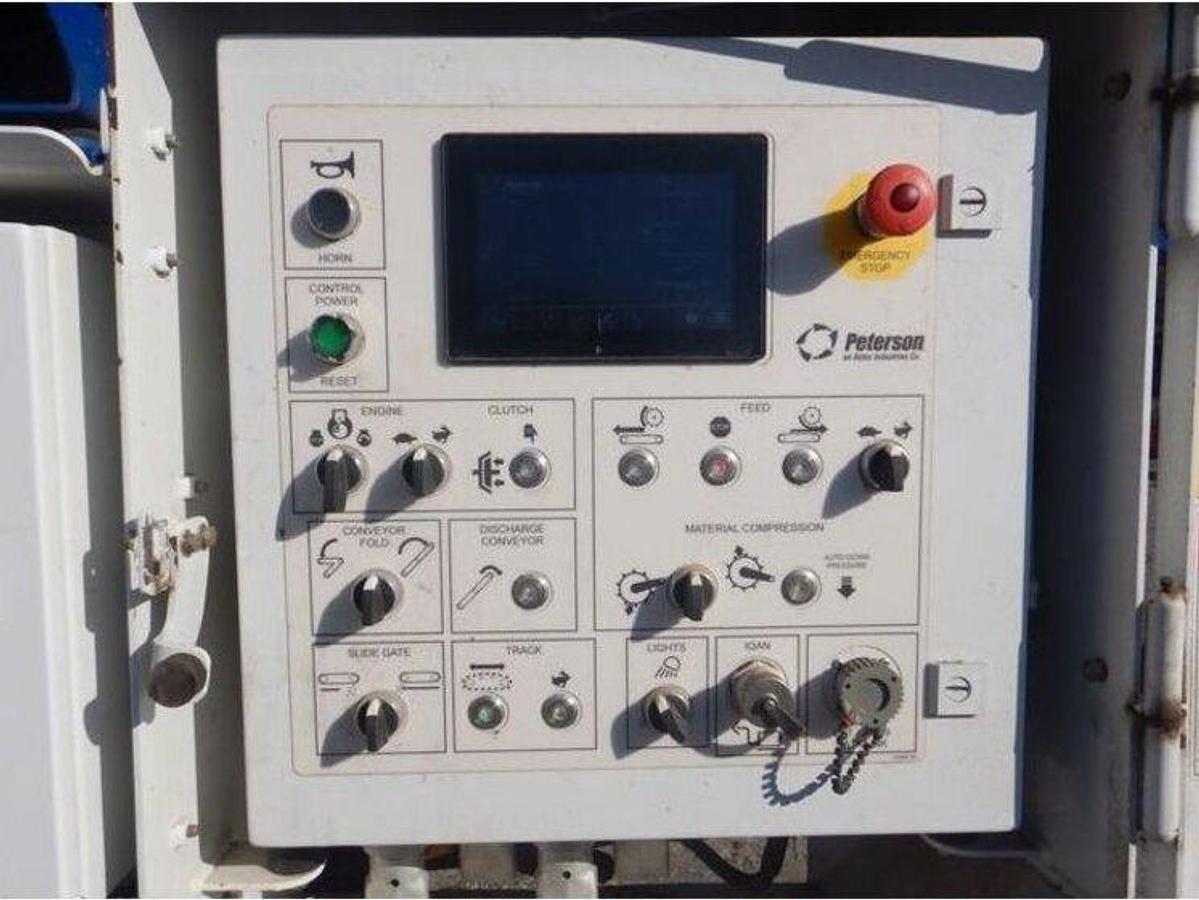

The 5710D Horizontal Grinder IQAN control panel features a large LCD display that provides the operator with the information needed to efficiently operate the unit. System pressure transducers and remote monitoring capability simplify set up and provide complete engine and system parameters. The 5710D can be operated by wireless remote from the comfort of your loader.

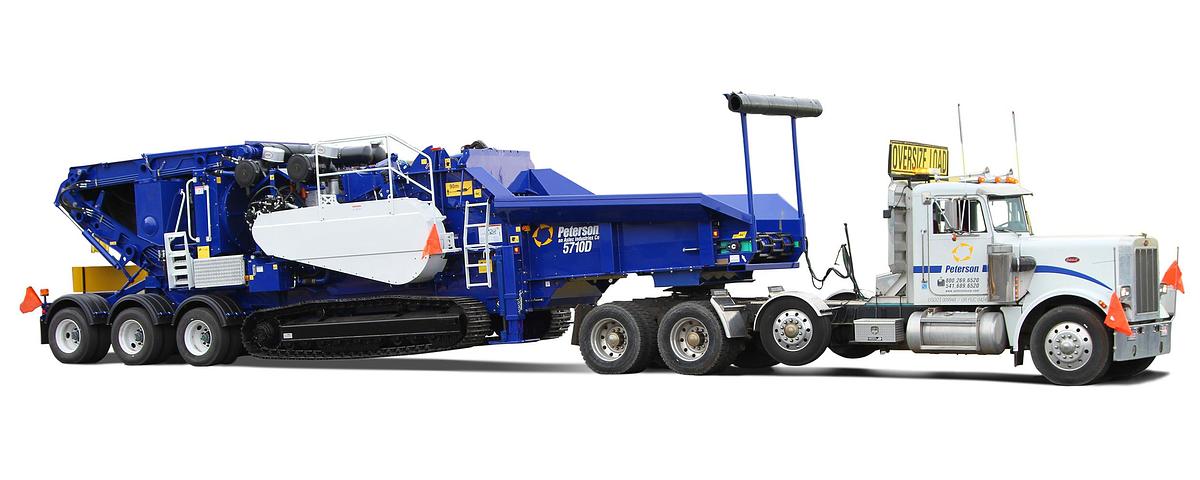

The optional tow dolly makes highway transportation between jobs easy. The quick-change multiple grate system makes it easy to customize grate configurations to produce a wide variety of finished materials. Grates are removed through an access door on the side wall.

Since 1981, Peterson has specialized in the developing of delivery and processing equipment that turns low-grade organic materials into high value products.

*Machine weight may vary by optional equipment and configuration.

With extremely low hours and a high-output Caterpillar powerplant, this grinder is essentially like-new and ready to go straight to work.
